| Size | 4", 4-1/2", 6", 7", 8", 10", 12", 14" |
| Machine Type | Angle Grinder, Tile Saw |
| Brand | Alpha |
| Wet / Dry Use | Wet & Dry |

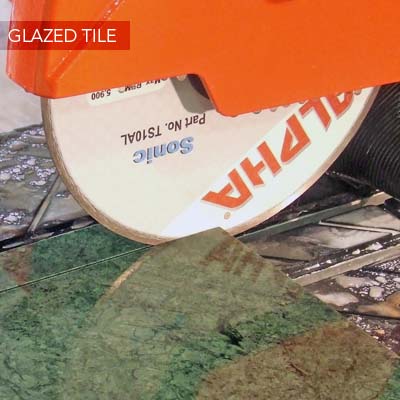

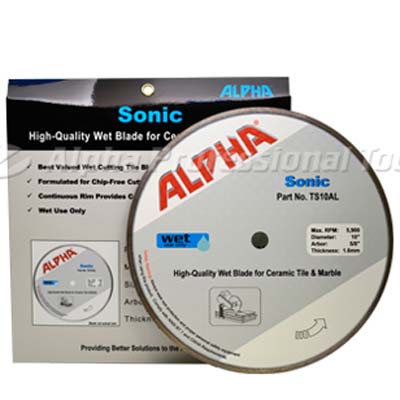

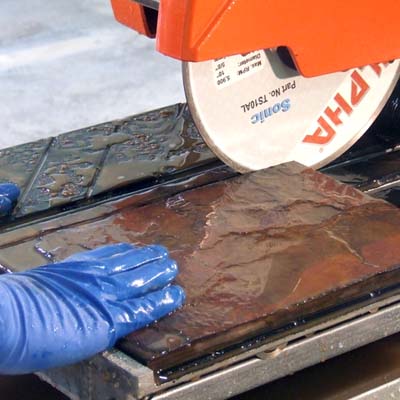

The Alpha® Sonic is a high-quality, general-purpose tile blade engineered for clean, easy and chip-free cutting of ceramic and marble tile. Formulated for long life and balanced performance, it is the best-value wet cutting tile blade in the Alpha line-up. The 6", 7", 8", 10", 12" and 14" sizes are designed for wet use on tub or tile saws, while the compact 4" and 4-1/2" sizes can run wet OR dry on most popular angle grinders and stone cutters — a single blade family covers nearly every standard tile-cutting machine on a jobsite.
| Part No. | Size | Thickness | Max RPM | Arbor(s) | Depth of Cut | For Use On | UPC |
|---|---|---|---|---|---|---|---|
| TS0478 | 4" | 1.4mm | 14,500 | 7/8", 20mm, 5/8" | 1" | Stone Cutter/Angle Grinder | 749173462139 |
| TS05AL | 4-1/2" | 1.4mm | 13,200 | 7/8", 20mm | 1-1/4" | Stone Cutter/Angle Grinder | 749173461101 |
| TS06AL | 6" | 1.4mm | 10,100 | 5/8" | 1-3/4" | Stone Cutter/Tile Saw | 749173461118 |

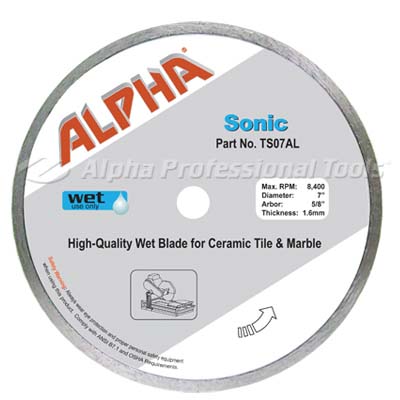

| TS07AL | 7" | 1.6mm | 8,400 | 5/8" | 2-1/4" | Tile Saw | 749173461125 |
| TS08AL | 8" | 1.6mm | 7,400 | 5/8" | 2-3/4" | Tile Saw | 749173461132 |
| TS10AL | 10" | (see vendor) | (see vendor) | 5/8" | (see vendor) | Tile Saw | 749173461149 |

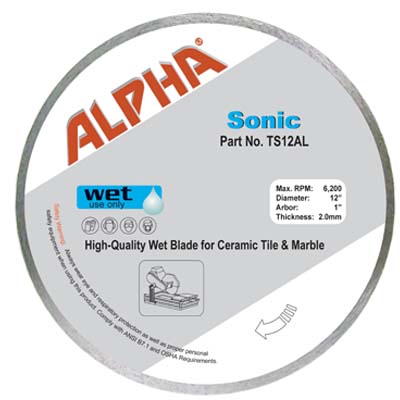

| TS12AL | 12" | 2.0mm | 6,200 | 1" | 3-5/8" | Tile Saw | 749173461156 |
| TS14AL | 14" | (see vendor) | (see vendor) | 5/8" | (see vendor) | Tile Saw | 749173461163 |
| Part No. | TS0478 |
| UPC | 749173462139 |
| Size | 4" |
| Type | Ceramic Tile & Marble — Stone Cutter/Angle Grinder |
| Max RPM | 14,500 |
| Packaged Weight | 0.30 lbs |
| Package Dimensions | 5.25in x 4.5in x 0.25in |
| Commodity Code | 8202.91.0000 |
| Country of Origin | Japan |
| Part No. | TS05AL |
| UPC | 749173461101 |
| Size | 4-1/2" |
| Type | Ceramic Tile & Marble — Stone Cutter/Angle Grinder |
| Max RPM | 13,200 |
| Packaged Weight | 0.30 lbs |
| Package Dimensions | 5in x 5in x 0.25in |
| Commodity Code | 8202.91.0000 |
| Country of Origin | Japan |
| Part No. | TS06AL |
| UPC | 749173461118 |
| Size | 6" |
| Type | Ceramic Tile & Marble — Stone Cutter/Tile Saw |
| Max RPM | 10,100 |
| Packaged Weight | 0.40 lbs |
| Package Dimensions | 6.5in x 6in x 0.25in |
| Commodity Code | 8202.91.0000 |
| Country of Origin | Japan |
| Part No. | TS07AL |
| UPC | 749173461125 |
| Size | 7" |
| Type | Ceramic Tile & Marble — Tile Saw |
| Max RPM | 8,400 |
| Packaged Weight | 0.60 lbs |
| Package Dimensions | 7.5in x 7.5in x 0.25in |
| Commodity Code | 8202.91.0000 |
| Country of Origin | Japan |
| Part No. | TS08AL |
| UPC | 749173461132 |
| Size | 8" |
| Type | Ceramic Tile & Marble — Tile Saw |
| Max RPM | 7,400 |
| Packaged Weight | 0.80 lbs |
| Package Dimensions | 8.5in x 8.5in x 0.25in |
| Commodity Code | 8202.91.0000 |
| Country of Origin | Japan |
| Part No. | TS10AL |
| UPC | 749173461149 |
| Size | 10" |
| Type | Wet Cutting Tile Blade |
| Part No. | TS12AL |
| UPC | 749173461156 |
| Size | 12" |
| Type | Ceramic Tile & Marble — Tile Saw |
| Max RPM | 6,200 |
| Packaged Weight | 2.20 lbs |
| Package Dimensions | 13.5in x 12.75in x 0.25in |
| Commodity Code | 8202.91.0000 |
| Country of Origin | Japan |
| Part No. | TS14AL |
| UPC | 749173461163 |
| Size | 14" |
| Type | Wet Cutting Tile Blade |
| Property | Detail |
|---|---|
| Blade Type | Continuous-rim diamond wet-cutting tile blade |
| Recommended For | Ceramic tile, marble, slate |
| Wet / Dry Use | Wet only for 6"–14"; wet or dry for 4" and 4-1/2" |
| Tool Compatibility | Tub & tile saws (6"–14"); angle grinders & stone cutters (4" / 4-1/2") |
| Steel Core | Heavy-duty, balanced |
| Commodity Code | 8202.91.0000 |
| Country of Origin | Japan |
The blade direction is printed on the front of the blade — install it so the blade rotates in that direction. If the print is illegible, look for the embossed directional arrow on the back; the diamond bond tails should point opposite the direction of rotation.

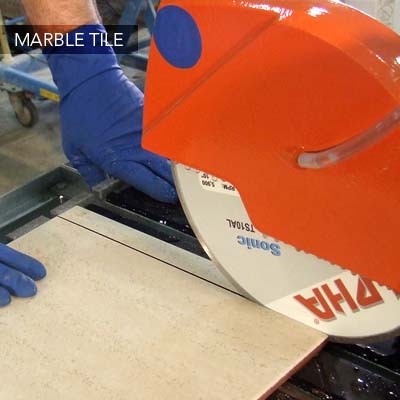

The Alpha® Sonic blade is a general-purpose tile blade for ceramic, marble and slate tile.

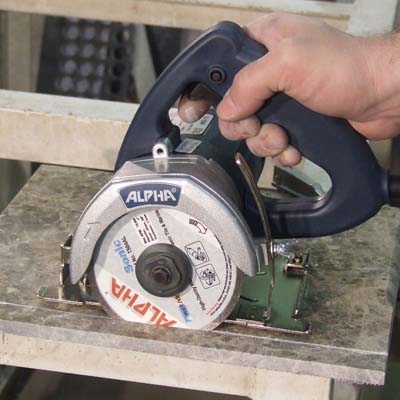

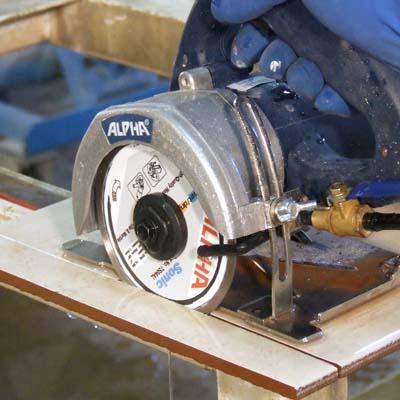

Only the 4" (TS0478) and 4-1/2" (TS05AL) sizes are approved for dry use on most angle grinders. The 6", 7", 8", 10", 12" and 14" sizes are wet-cut only on tub or tile saws.
The diamonds are glazing or rounding over. Re-dress the blade by running it into a soft abrasive material such as a dressing stone or concrete block to re-expose fresh diamonds.
Maximum RPM ranges from 6,200 RPM (12") up to 14,500 RPM (4"). Refer to the Specifications table for each individual size.
No. Sonic tile-saw blades are engineered for tub & tile saws, where material is pushed into the blade. Rail-saws pull the blade into the material, which puts different loads on the steel core.
The 4" uses 7/8", 20mm or 5/8" arbors; the 4-1/2" uses 7/8" or 20mm; the 6", 7" and 8" use 5/8"; the 12" uses 1". Refer to the Specifications table for full detail per size.

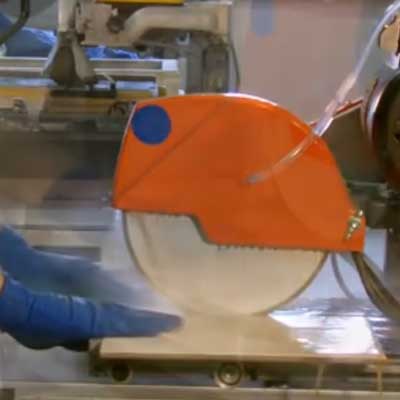

Alpha Sonic Blades — Cutting Porcelain
