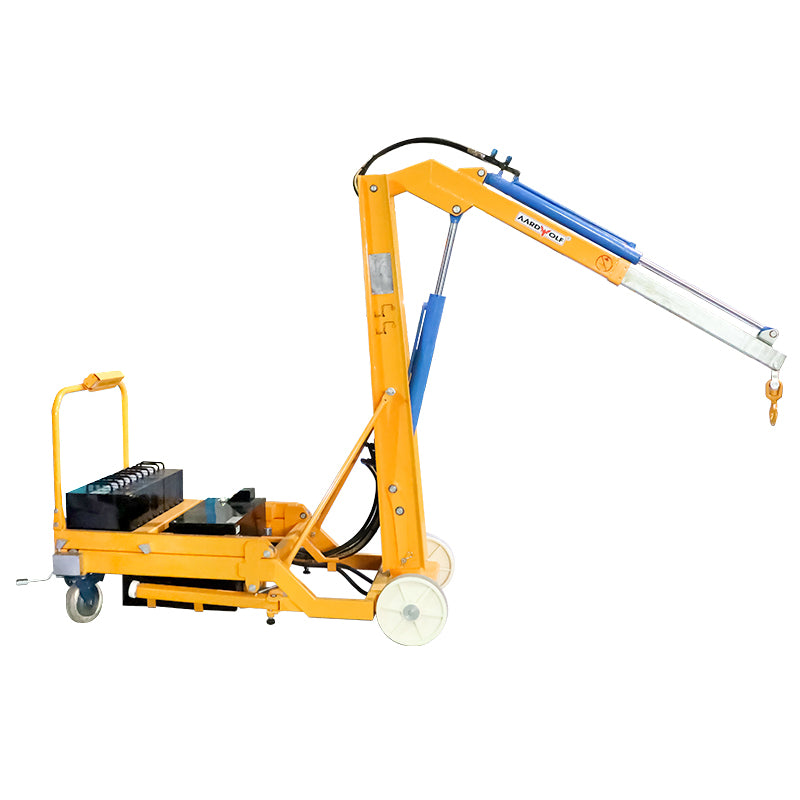

Aardwolf Powered Counterbalance Crane with Lateral Movement (APCCL Series)
This powered counterbalance crane has an extending boom and an extra hydraulic cylinder that moves the front axle sideways for placement. The manufacturer lists granite, marble, engineered stone, glass panels, metal components and construction elements as recommended loads, on solid, flat surfaces.
The manufacturer states a capacity (WLL) of 540 kg (1,190 lb).
Features
- Capacity (WLL) of 540 kg (1,190 lb), as stated by the manufacturer
- 12V battery-powered, hydraulically lifted extending boom
- Extra hydraulic cylinder allows lateral movement of the front axle
- Counterweight design with no front legs
- Folds down for transport; heavy-duty nylon wheels
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Model | APCCL |
| Capacity (WLL) | 540 kg (1,190 lb) |
| Extended length | 1700 mm (66.9 in) |
| Height | 2760 mm (108.6 in) |
| Net weight | 830 kg (1,830 lb) |
| Packaging (L x W x H) | 1860 x 970 x 1180 mm (73.2 x 38.2 x 46.5 in) |
| Power supply | 12V 150A battery |
| Charging | 12V 20A, 7.5 h |
| Motor and pump | 12V 1.6 kW / 1.6 cc per rev |
| Hydraulic tank | 8 L |
⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov. Always wear appropriate PPE.
