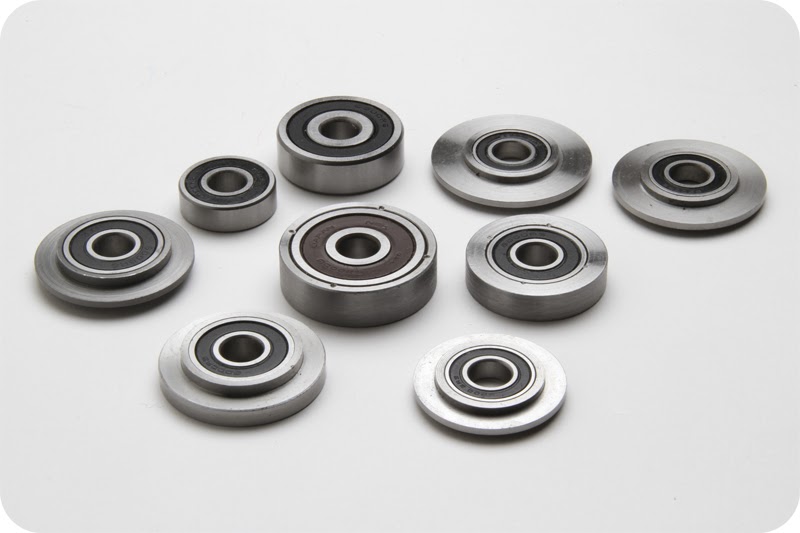

APEXX Router Bit Bearing
APEXX Router Bit Bearing is part of the Apexx line from Ocean Diamond. The table below lists the manufacturer's published specifications for each item number in this product, exactly as the manufacturer prints them.
| Property | Detail |
|---|---|
| Category | Router Bits |
| Brand | Ocean Diamond |
| Manufacturer | Ocean Diamond |
These details come from our own product record, not from the manufacturer's published specification tables.

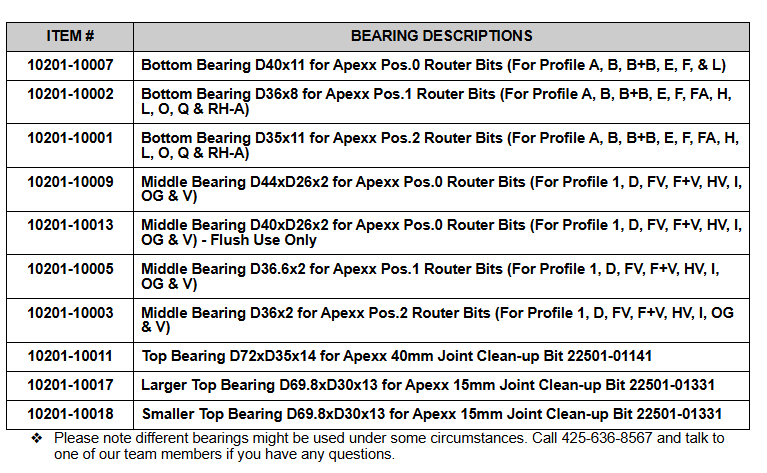

| Item # | BEARING DESCRIPTIONS |
|---|---|
| 10201-10001 | Bottom Bearing D35x11 for Apexx Pos.2 Router Bits (For Profile A, B, B+B, E, F, FA, H, L, O, Q & RH-A) |
| 10201-10002 | Bottom Bearing D36x8 for Apexx Pos.1 Router Bits (For Profile A, B, B+B, E, F, FA, H, L, O, Q & RH-A) |
| 10201-10003 | Middle Bearing D36x2 for Apexx Pos.2 Router Bits (For Profile 1, D, FV, F+V, HV, I, OG & V) |
| 10201-10005 | Middle Bearing D36.6x2 for Apexx Pos.1 Router Bits (For Profile 1, D, FV, F+V, HV, I, OG & V) |
| 10201-10007 | Bottom Bearing D40x11 for Apexx Pos.0 Router Bits (For Profile A, B, B+B, E, F, & L) |
| 10201-10009 | Middle Bearing D44xD26x2 for Apexx Pos.0 Router Bits (For Profile 1, D, FV, F+V, HV, I, OG & V) |
| 10201-10011 | Top Bearing D72xD35x14 for Apexx 40mm Joint Clean-up Bit 22501-01141 |
Every figure applies to the item number on its own row; ratings vary by item and must not be applied across the range.
Always wear appropriate PPE for diamond tooling — eye and face protection, hearing protection, and respiratory protection appropriate to the operation. Never run this tool above the speed rating published by its manufacturer for the specific item number you are using, and observe the speed limits of the machine it is mounted in.
