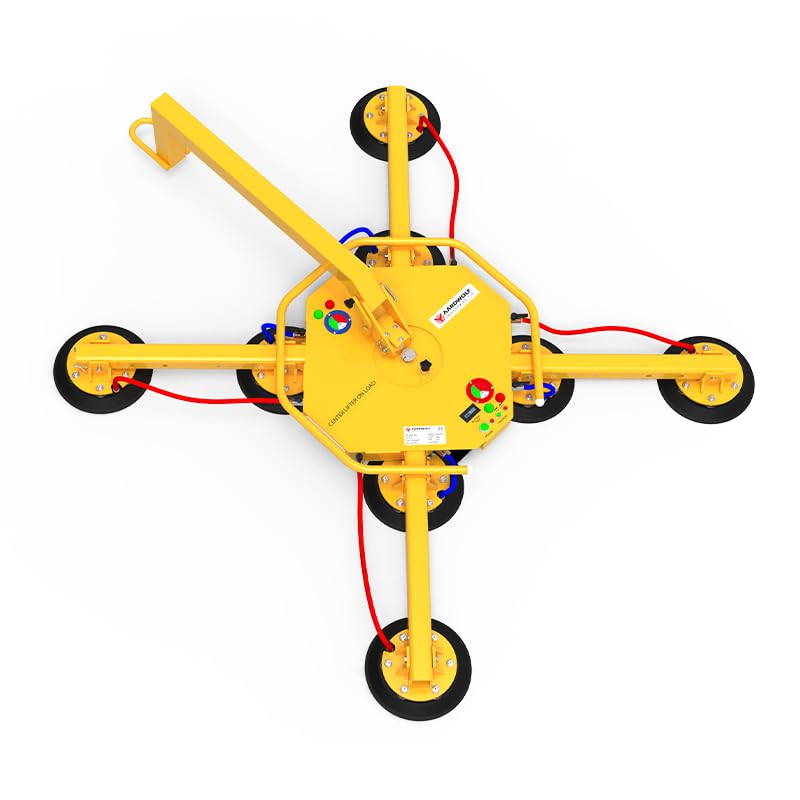

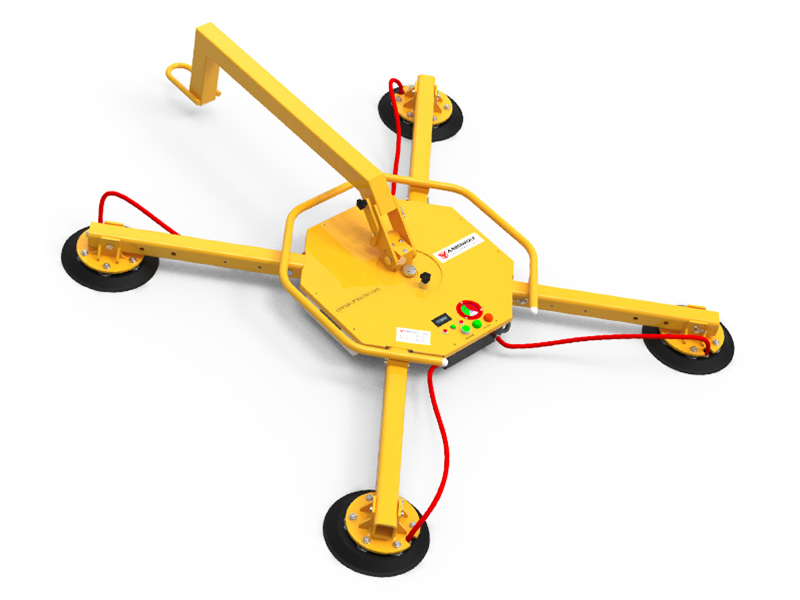

The DC Powered Vacuum Glass Lifter ARGL500 is suitable for lifting and transporting glass elements of up to 500kg. This device can be used to install windows and large glass sheets with the aid of a forklift, counterbalance crane, or overhead hoist. On-board DC power systems provide cord-free operation at the job site. Movable vacuum pads and extension arms allow the DC-Powered Vacuum Glass Lifter ARGL500 to handle nearly every size and shape of the glass.
Features
- Spring-loaded vacuum pads.
- Manual rotation of 360° with 45° step.
- Manual tilting by 90° in a 15° grid.
- Four extension arms with the ability to extend and retract.
- Automatic vacuum pumping system.
- Visual and audible warning devices.
- 12-volt battery power supply with high capacity.
Specifications
DC Powered Vacuum Glass Lifter ARGL-500DS
|
Metric
|
Imperial
|
|
| Number of pad | 8 | - |
| Pad diameter | 300 mm | 11 3/4" |
| Working load limit | Vertical: 400 kg Horizontal: 500 kg |
882 lb 1102 lb |
| Net weight | 81 kg | 179 lb |
| Gross weight | 107 kg | 236 lb |
| Packaging dimensions | L.1070 x W.970 x H.450 mm | L.42 1/8" x W.38 1/4" x H.17 3/4" |
Battery information for the lifter
| Code battery | M12B6 Milwaukee |
| Type of battery | Lithium-ION |
| Voltage | 12V |
| Current | 6.0Ah |
| Số lượng | 2 |
| Continuous operation time | 2 hours |
| Working time | 6 hours |
Specifications
| Brand | AARDWOLF |
| Package Dimensions | 42" x 38" x 19" |
