ASR01 Slab Rack Base Only - 3 meters long (9'10"), one pair

Slab Rack 3M - ASR01

General

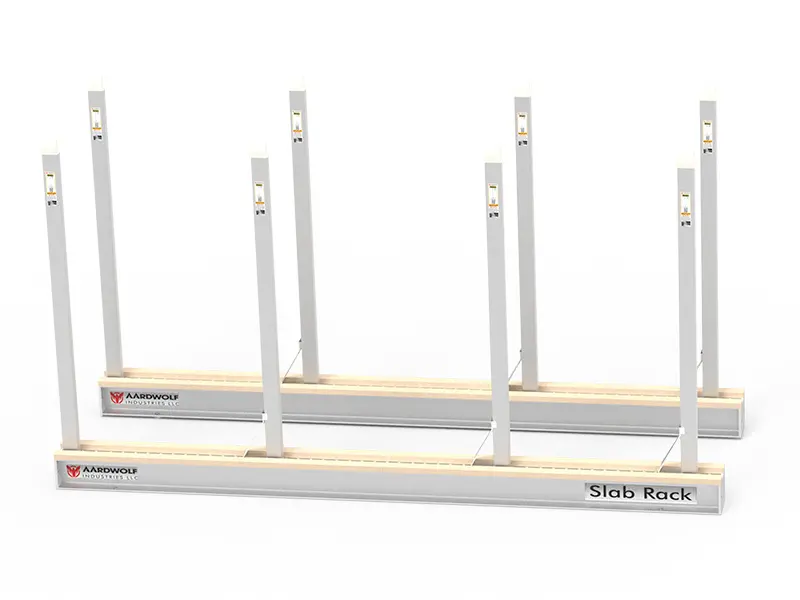

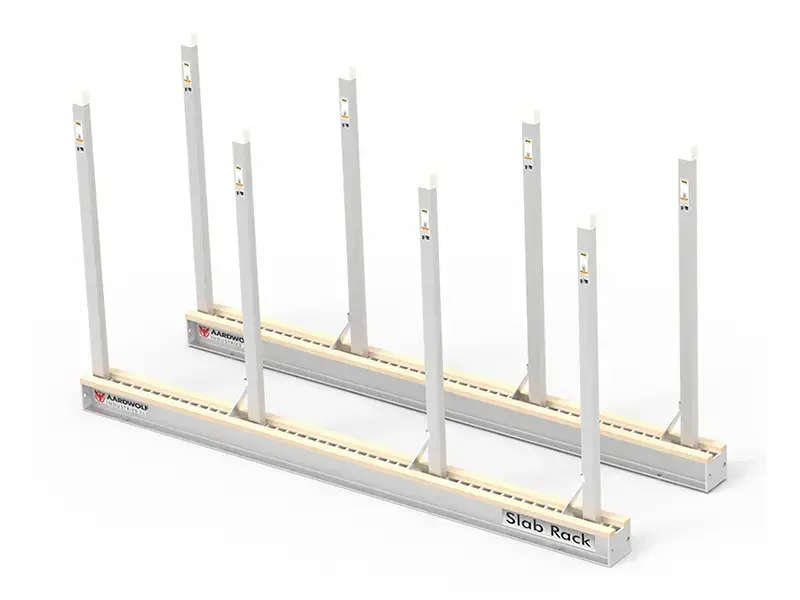

The Aardwolf Slab Rack consists of a pair of galvanised steel rails that are 3 meters long, together with galvanised square steel tube posts.  The square post can be positioned anywhere along with the rack.  All posts are manufactured from square tube steel with a minimum yield strength of 345Mpa, ensuring safety for the vertical storage of slab bundles.

Features

  • The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the slab thickness and dimensions.

  • Aardwolf has developed a simple calculator for users to calculate the slab storage capacity.

  • Post available in 5 standard heights of 800mm (31 1/2"), 1200mm (47 1/4"), 1400mm (55 1/8"), 1600mm ( 63") and 1800mm (70 7/8").

Note: Rails sold as a pair

​To view the Slab Rack Storage Calculator, click here

This tool will help you decide how many posts and what type of posts you may require.

Warning: Do not use the Aardwolf Slab Rack Storage Calculator to calculate the storage capacity of competitors’ posts, as they may use posts with a different profile and steel of lower yield strength.

Specifications


 ....................................
Qty
......................Imperial.......................
Galvanised steel rail2117 1/4" x 6 1/2" x 6 1/2"
Square hole 2" x 2"
Increment 2 1/4"
Posts wall thickness  1/4"
Timber battens per rail 2" x 1"
Net weight 149
Gross weight 150
Packaging dimensions L.117 3/8" x W.6 1/2" x H.6 1/2"

$ 1,369.64 $ 1,369.64
$ 1,369.64

This combination does not exist.


The Aardwolf Slab Rack Galvanized Steel Rails (one pair) — Premium storage for stone slabs such as marble, granite, quartz, engineered stone, and all other types of stone.

Pair of bases only — poles sold separately.

The Aardwolf Slab Rack is made for storing stone slabs. Each set includes a pair of galvanized steel rails 9' 10" (3 m). Square steel tube posts are sold separately and can be positioned anywhere along the rack. The system is rated up to 10,000 lbs max capacity when used with compatible Aardwolf posts. Users can choose two different post strengths. All posts are manufactured from square tube steel with a minimum yield strength of 345 MPa, ensuring safe vertical storage.

  • Pair of galvanized base rails (posts sold separately) for corrosion-resistant, long-life use.
  • Flexible layout: posts can be positioned anywhere along the rails.
  • Two post strength options to match various slab/bundle requirements.
  • High safety: posts ≥345 MPa yield strength, 5 mm wall thickness.
  • System capacity up to 10,000 lbs when paired with compatible Aardwolf posts.
ASR01 Metric (mm-kg) Imperial (inch-lbs)
Galvanized steel rail (each) 2,979 × 164 × 165 mm 117.3" × 6.4" × 6.5"
Square hole 52 × 52 mm 2" × 2"
Increment 57 mm 2.2"
Square tube post (compatible) 50 × 50 mm 2" × 2"
Posts wall thickness (compatible) 5 mm 0.2"
Square rubber cap 52 × 52 mm 2" × 2"
Timber battens per rail 50 × 25 mm 2" × 1"
Max system capacity — 10,000 lbs*
Net weight (each rail) 67.7 kg 149 lbs
Gross weight (each rail) 68 kg 150 lbs
Packaging dimension (each rail) 2,980 × 165 × 165 mm 117.3" × 6.5" × 6.5"

* Maksimum sistem kapasitesi, uygun Aardwolf direkleri ile doğru kurulum ve dengeli yükleme koşullarında geçerlidir.

SKU T-AW ASR01

Weight (lbs.) 149.0 (each rail, net)

Non-Returnable No

Manufacturer Aardwolf

Manufacturer Part Number ASR01

Dimensions (L × W × H) 117.3" × 6.5" × 6.5"

Note: This listing is for the pair of base rails only. Poles are sold separately and are required to create bays for slab storage.
