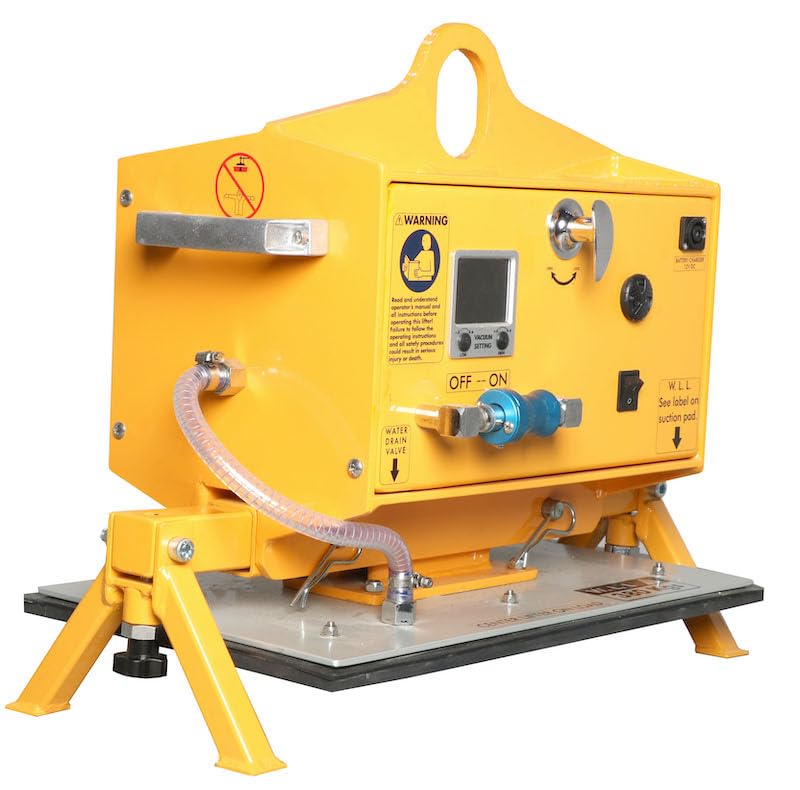

AVBL380 Vacuum Block Lifter - 380kg
A powerful battery-operated vacuum lifting device for laying marble and granite slabs, concrete and similar. Robust and compact, this Vacuum Block Lifter can be suspended on all types of lifting equipment by means of load hooks, chains, cables, etc.
Strong and compact body with built-in mount for crane hook and the ability to quickly replace the vacuum suction pads.
Features
- Equipped with a battery-operated vacuum pumps.
- ON/OFF slide valve.
- Audio/visual safety system: warning flashlight, vacuum gauge, large vacuum reserve tank.
- The automatic vacuum pumping system.
- Long working hours.
- Battery charge indicator.
- Manually operated valve for vacuum.
Specifications
Vacuum Block Lifter AVBL380
|
Metric
|
Imperial
|
|
| Working load limit | 500 x 125 mm: 126 kg 420 x 220 mm: 220 kg 500 x 150 mm: 164 kg 500 x 300 mm: 380 kg |
19 3/4" x 4 7/8": 278 lb 16 1/2" x 8 5/8": 485 lb 19 3/4" x 5 7/8": 362 lb 119 3/4" x 11 3/4": 838 lb |
| Net weight | 39 kg | 86 lb |
| Gross weight | 55 kg | 121 lb |
| Packaging dimensions | L.585 x W.385 x H.530 mm | L.23" x W.15 1/8" x H.20 7/8" |
Comes with alternate size suction pads when lifting smaller pieces. (Custom dimension vacuum plates made on request)
Powered by a clip-in 24V battery with energy-saving system allows you to work without recharging throughout the day. Clip-in battery can be replaced in a matter of seconds.
