Brand
| Brand: Aardwolf |

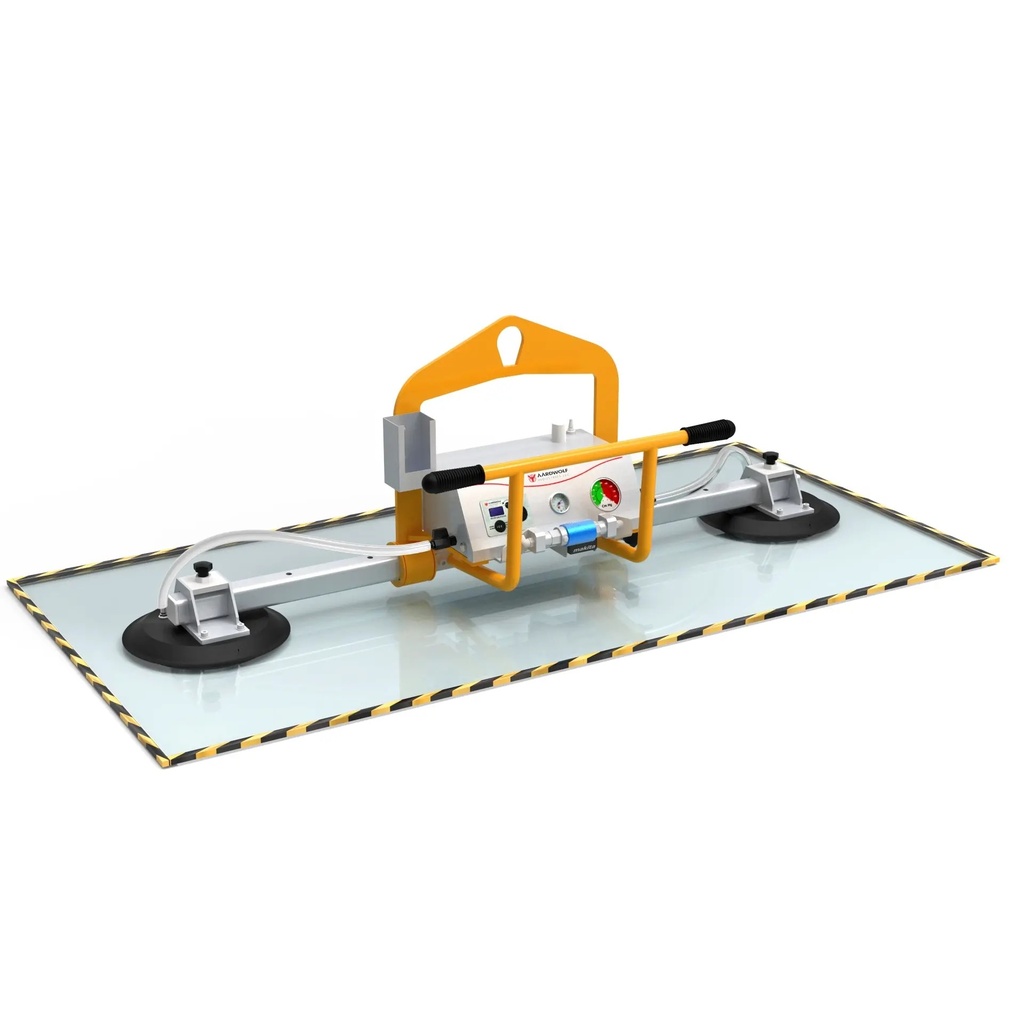

This Vacuum Lifter stands out with its specialised design and is adept at handling glass sheets. It boasts a rugged construction, ensuring durability and reliability during intensive operations. Beyond merely lifting, it can tilt materials, accommodating various handling requirements for delicate tasks.
Operating on compressed air, this equipment underscores efficiency and safety. This focus on utilising compressed air indicates a deliberate choice for energy efficiency and a safe yet powerful operation essential in handling sensitive materials like glass.
The vacuum lifter presents solutions for transporting and maneuvering glass sheets through its robust construction and versatile functionality. Its design integrates features that not only move but also adjust the orientation of the glass, ensuring precision and security in its handling .
The vacuum lifter features a durable metal structure that can be manually tilted anywhere from 0° to 90° for enhanced flexibility.
Equipped with rotating pads as standard, the Vacuum Glass Lifter enables swift rotation by the operator to both 45° and 90° angles for optimal positioning.
Features
- Capacity, Horizontal: 441 lb (200 kg)
- Net Weight: 93 lb (42.2 kg)
- Number of Pads: 2
- Pad Size: Ø 11-3/4" (~Ø 298 mm)
- Package Dimensions: 58-1/4" × 18-1/8" × 32-1/4" (1480 × 460 × 820 mm)
- Compatible Materials: Glass, smooth non-porous slabs (glazing & construction)
- Rotation: Manual 45° or 90°
AVGLM2-200
| Property | Detail |
|---|---|
| Capacity, Horizontal | 441 lb (200 kg) |
| Number of Pads | 2 |
| Pad Size | Ø 11-3/4" (~Ø 298 mm) |
| Pump Type | Compressed-air vacuum (73–87 PSI / 5–6 bar) |
| Vacuum Level | 5–87 PSI (6 bar) working principle |
| Tilting | Manual up to 90° |
| Rotation | Manual 45° or 90° |
| Vacuum Tank | Yes (large) |
| Alarm | Rechargeable acoustic + visual |
| Net Weight | 93 lb (42.2 kg) |
| Package Dimensions | 58-1/4" × 18-1/8" × 32-1/4" (1480 × 460 × 820 mm) |
| Compatible Materials | Glass, smooth non-porous slabs (glazing & construction) |
| Operation | Manual hand-pump vacuum lifting |
| Country of Origin | Vietnam |
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
