Brand
| Brand: Aardwolf |

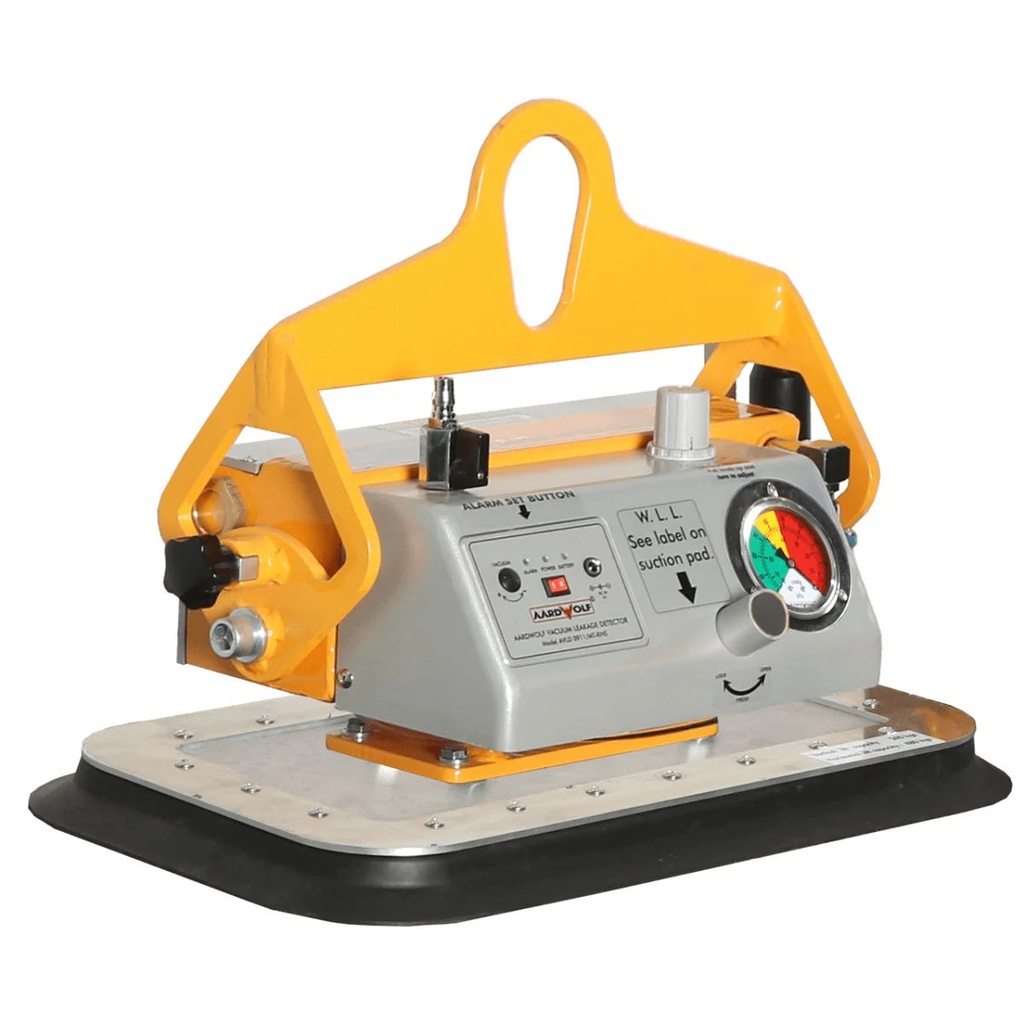

AVLHP240/480 Hand Pump Vacuum Lifter
The Aardwolf Hand Pump Vacuum Lifter AVLHP480 is a vacuum lifter for handling smooth, non-porous material. Application: Horizontal transport of non-porous sheets. Handles steel plate, glass, aluminum plate, polished marble, granite. It is rated at 528-1,056 lb (240-480 kg, by pad configuration), a 20.5" x 12.6" (520 x 320 mm) rectangular pad. Power/actuation: Hand pump or venturi pump.
Features
- 528-1,056 lb (240-480 kg, by pad configuration) lifting capacity
- 20.5" x 12.6" (520 x 320 mm) rectangular vacuum pad
- Hand pump or venturi pump
- Handles Steel plate, glass, aluminum plate, polished marble, granite
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Pad Size | 20.5" x 12.6" (520 x 320 mm) rectangular |
| Pump | Hand pump or venturi pump |
| Application | Horizontal transport of non-porous sheets |
| Materials | Steel plate, glass, aluminum plate, polished marble, granite |
| Lifting Capacity | 528-1,056 lb (240-480 kg, by pad configuration) |
| Country of Origin | Vietnam |
- Inspect the vacuum pad seal for cuts, grit, or compression set before each shift.
- Charge or connect the pump power supply and confirm it primes.
- Seat the pad flat on clean, sound, non-porous material with no chips or seams under the seal.
- Draw vacuum and wait for the gauge to reach the safe zone before taking any load.
- Lift slowly and keep the load low; never stand or pass under a suspended load. Never exceed the rated 528-1,056 lb (240-480 kg, by pad configuration).
- Set the material down fully, then release vacuum and vent the pad.
