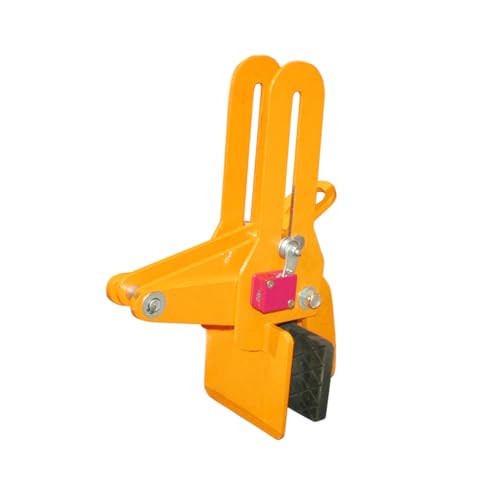

The Aardwolf Slab Billet Clamp utilises gravity to grip and release materials. The machine is used for handling marble and granite slabs from the billet saw.
Features
- A gravity hoisting device is used to control the opening and closing of the clamp.
- The clamp has one movable jaw, which is lined with rubber.
- The clamp uses the weight of the load to generate a closing force and the friction generated by the clamping force to clamp the slabs.
Specifications
|
Metric
|
Imperial
|
|
| Grip range | 5 - 60 mm | 1/4" - 2 3/8" |
| Working load limit | 200 kg | 441 lb |
| Net weight | 16 kg | 35 lb |
| Gross weight | 17 kg | 38 lb |
| Packaging dimensions | L.570xW.185xH.320 mm | 22 1/2"x7 1/4"x12 5/8" |
Specifications
| Brand | AARDWOLF |
| Package Dimensions | 23" x 8" x 13" |
