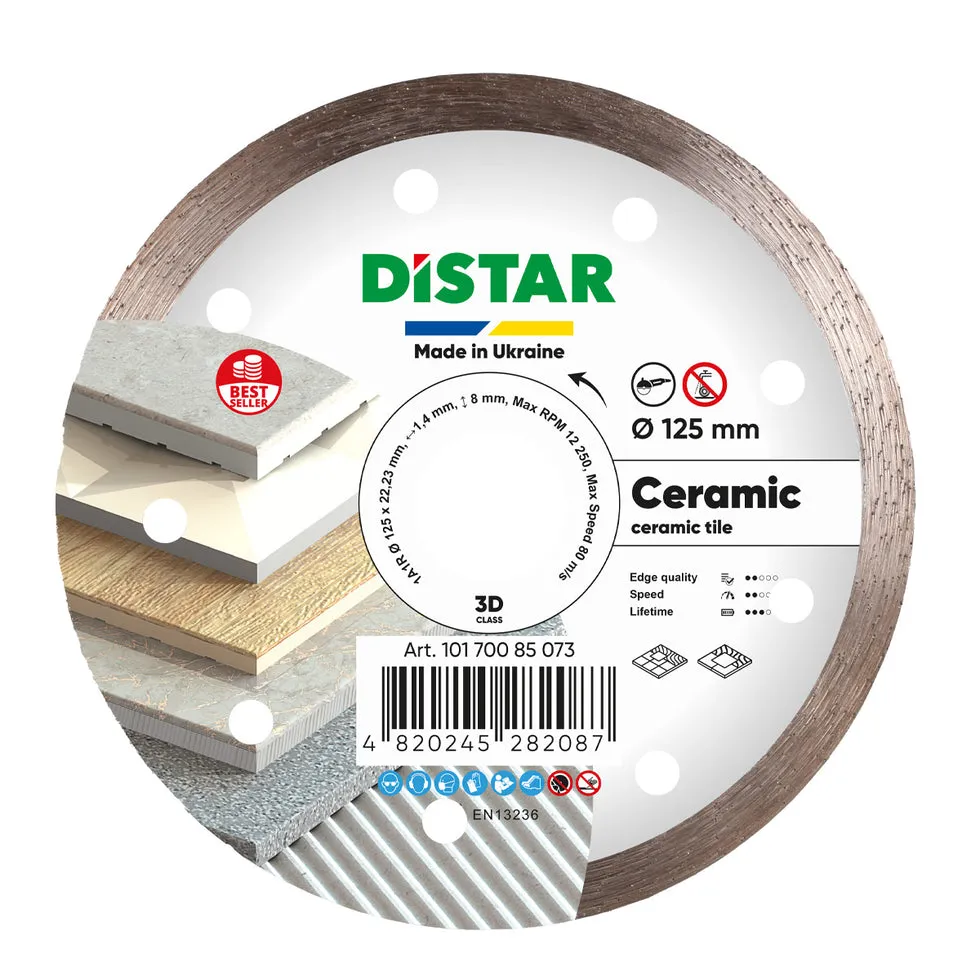

The DiStar Ceramic is a continuous-rim (1A1R) diamond blade built for clean, chip-free cutting of ceramic and porcelain gres tile. The dense continuous diamond rim delivers a smooth cut edge, and the blade runs on standard angle grinders with a 22.23 mm (7/8") bore. It can be used dry or with water cooling.
| Property | Detail |
|---|---|
| Brand | DiStar |
| Model / Series | Ceramic (1A1R, 3D class) |
| Available Diameters | 4.5" (115 mm) and 5" (125 mm) |
| Bore / Mounting | 7/8" (22.23 mm) |
| Blade Thickness | 0.055" (1.4 mm) |
| Rim Height | 5/16" (8 mm) |
| Rim Type | Continuous rim (1A1R) |
| Max Operating Speed | 80 m/s |
| Max RPM | 12,250 (5" / 125 mm) |
| Type | Dry or wet cutting |
| Materials | Ceramic tile, porcelain gres |
| Compatible Equipment | Angle grinders and tile machines with 22.23 mm bore |
| Standard | EN 13236 |
| Product Type | Diamond cutting blade |
Straight cutting of ceramic tile and porcelain gres with a handheld angle grinder.
Wear appropriate PPE. Follow manufacturer instructions and safety regulations.
