APEXX CNC Finger Bit

(0 review)
$ 69.92 $ 69.92
$ 69.12
  • Brand
  • Spec
Contact Us
Terms and Conditions
Spec Blue 15x40mm 4-seg Extra Soft (Low-HP CNC), Blue 23x40mm 6-seg Extra Soft (Quartzite), Blue 23x50mm 6-seg Extra Soft (Quartzite), Brazed 20x40mm (Marble/Limestone), Brazed 20x50mm (Marble/Limestone), Dark-Blue 20x40mm 6-seg Heat-Durable (Quartzite), Orange 20x40mm 6-seg High Speed (ES), Orange 23x40mm 5-seg High Speed (ES), Orange 23x50mm 5-seg High Speed (ES), Orange 25x70mm 5-seg High Speed (ES), Purple 23x40mm 5-seg Cobalt Bond (ES) Long Life, Purple 23x50mm 5-seg Cobalt Bond (ES) Long Life, Red 23x40mm 5-seg Soft Bond (ES/Granite), Red 23x50mm 5-seg Soft Bond (ES/Granite), Reverse-Thread Blue 20x40mm 6-seg w/ Bottom Segment, White 20x40mm 6-seg Super Soft (UltraCompact)
Brand Apexx

APEXX CNC Finger Bit

APEXX CNC Finger Bit is part of the Apexx line from Ocean Diamond. The table below lists the manufacturer's published specifications for each item number in this product, exactly as the manufacturer prints them.

Item #COLORDIAMOND DIAMETERDIAMOND HEIGHTTHREADMATERIALSSUGGESTED RPMFEED RATE
22601-01016Purple23mm40mm½”GasQuartz (ES); Granite4,800 – 5,20012–16 ipm

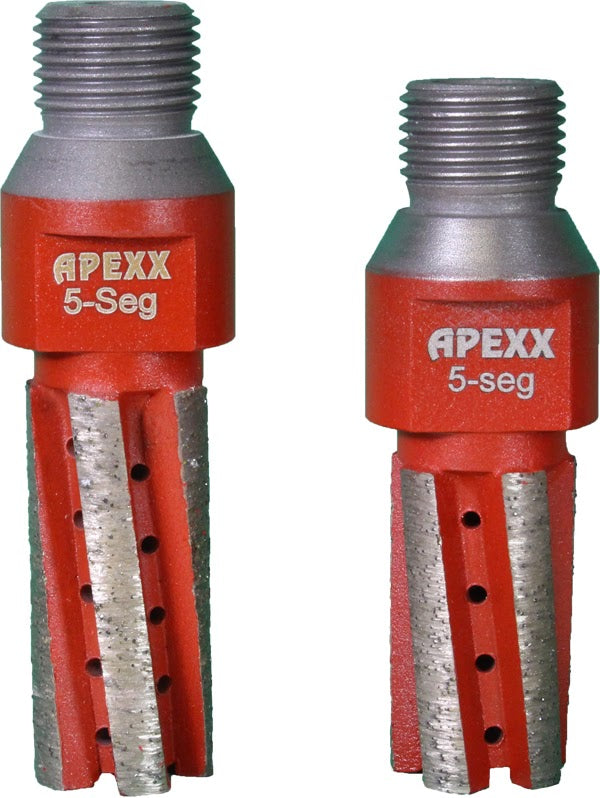

22601-01020Red23mm40mm½”GasQuartz (ES); Granite5,000 – 5,5008–12 ipm
22601-01023Red23mm50mm½”GasQuartz (ES); Granite5,000 – 5,5008–12 ipm
22601-01027Purple23mm50mm½”GasQuartz (ES); Granite4,800 – 5,20012–16 ipm
22601-01035Orange25mm70mm½”GasQuartz (ES); Granite4,500 – 5,500—
22601-01038Blue23mm40mm½”GasNatural Quartzite4,200 – 4,5004–6 ipm
22601-01040Orange20mm40mm½”GasQuartz (ES); Granite5,800 – 6,20015–22 ipm
22601-01047Orange23mm40mm½”GasQuartz (ES); Granite5,500 – 6,00015–20 ipm
22601-01049Blue23mm50mm½”GasNatural Quartzite4,200 – 4,5004–6 ipm
22601-01050Orange23mm50mm½”GasQuartz (ES); Granite5,500 – 6,00015–20 ipm
22601-01053Dark Blue20mm40mm½”GasNatural Quartzite4,200 – 4,6002–4 ipm
22601-01056White20mm40mm½”GasUltraCompact Surfaces; Porcelain3,800 – 4,2002–4 ipm
22601-01057Blue15mm40mm½”GasGranite; ES6,000 – 8,000Adjust
22601-01058Blue20mm (w/ Bottom Segment)40mm½”GasNatural Quartzite, Granite, Engineered Stone4,500 – 5,00010–16 ipm
22629-01004Silver20mm40mm½”GasMarble; Limestone5,500 – 6,00012–16 ipm
22629-01005Silver20mm50mm½”GasMarble; Limestone5,500 – 6,00012–16 ipm

The SUGGESTED RPM column is the manufacturer's recommended operating speed for that item number. It is not a maximum rating and must not be treated as one. Every figure applies to the item number on its own row; ratings vary by item and must not be applied across the range.

Always wear appropriate PPE for diamond tooling — eye and face protection, hearing protection, and respiratory protection appropriate to the operation. Never run this tool above the speed rating published by its manufacturer for the specific item number you are using, and observe the speed limits of the machine it is mounted in.
