Brand: Ocean Diamond

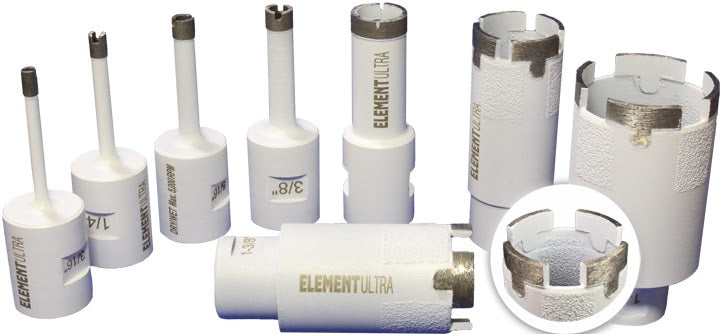

Element-Ultra Dry/Wet Thin-Wall Core Bit

Built with the latest THIN-WALL & DRY/WET technology.

Features

  • The most advanced heat-resistant metal bond
  • T-shape segments prevent segments from coming off
  • Brazed diamond INSIDE & OUTSIDE of the barrel
  • Fast Drilling, Minimum Chipping
  • Diameter: 1-3/8" – Item #23701-16001
  • Diameter: 3/16" – Item #23701-16002
  • Diameter: 1/4" – Item #23701-16003
  • Diameter: 5/16" – Item #23701-16004
  • Diameter: 3/8" – Item #23701-16005
  • Diameter: 1/2" – Item #23701-16006
  • Diameter: 3/4" – Item #23701-16007
  • Diameter: 1" – Item #23701-16008
  • Diameter: 1-1/4" – Item #23701-16009
  • Diameter: 1-1/2" – Item #23701-16010
  • Diameter: 1-3/4" – Item #23701-16011
  • Diameter: 2" – Item #23701-16012
  • Diameter: 2-1/2" – Item #23701-16013
  • Diameter: 3" – Item #23701-16014
  • Diameter: 2-1/4" – Item #23701-16015
  • Diameter: 3-1/2" – Item #23701-16016
  • Diameter: 4" – Item #23701-16017

Recommended for: Porcelain, Dekton, Neolith, UltraCompact Surfaces, Quartzite. Dry or Wet use. Water recommended when possible.

PropertyDetail
MaterialPorcelain, Dekton, Neolith, UltraCompact Surfaces, Quartzite
Dry / Wet UseDry or Wet use. Water recommended when possible.
WallThin-wall dry/wet construction
Segment DesignT-shape segments; brazed diamond protection inside and outside the barrel
BondHeat-resistant metal bond
Drilling Depth1-3/8" (3/16" through 1"); 1-3/4" (1-1/4" through 4")
Maximum Speed5,000 RPM (3/16" through 1-1/2"); 4,000 RPM (1-3/4" through 3"); 3,500 RPM (3-1/2" and 4")

Always wear appropriate PPE (ANSI Z87 eye protection, hearing protection and respiratory protection as required). Observe the tool's maximum speed rating and follow local safety regulations. California Proposition 65 WARNING: this product can expose you to chemicals, including nickel, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
