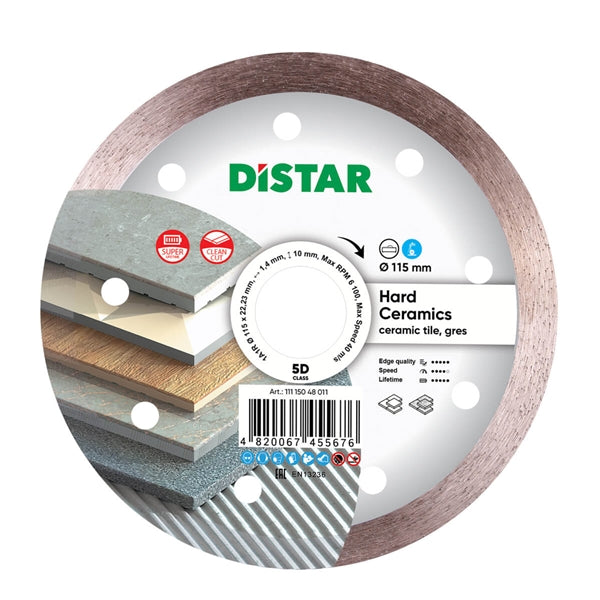

DiStar Hard Ceramics 1A1R Diamond Blade 4.5"–16"

DiStar Hard Ceramics 1A1R Diamond Blade 4.5"–16" — Clean, Chip-Free Cuts in Ceramic & Porcelain Gres

The DiStar Hard Ceramics is a continuous-rim (1A1R) diamond blade for clean, chip-free cutting of ceramic tile and porcelain gres. The 5D-class rim gives a super-clean cut edge; the 4.5" size runs on standard angle grinders with a 22.23 mm (7/8") bore and can be used dry or wet.

Specifications

Property	Detail
Brand	DiStar
Model / Series	Hard Ceramics (1A1R, 5D class)
Available Diameters	4.5" (115 mm) through 16"
Bore / Mounting	7/8" (22.23 mm) on 4.5"–5" sizes
Blade Thickness	0.055" (1.4 mm)
Rim Height	3/8" (10 mm)
Rim Type	Continuous rim (1A1R)
Max Operating Speed	80 m/s
Max RPM	6,100 (4.5" / 115 mm)
Type	Dry or wet cutting
Materials	Ceramic tile, porcelain gres
Compatible Equipment	Angle grinders (small sizes); tile saws (large sizes)
Standard	EN 13236
Product Type	Diamond cutting blade

Features & Benefits

Continuous 1A1R rim — super-clean, chip-free tile edges.
5D-class bond for a smooth finish on hard ceramics and porcelain.
Dry or wet cutting flexibility.
10 mm rim height for extended service life.
Wide size range — 4.5" for angle grinders up to 16" for saws.

Applications

Clean straight cutting of ceramic tile and porcelain gres with an angle grinder or tile saw.

Wear appropriate PPE. Follow manufacturer instructions and safety regulations.

Diameter	4-1/2", 5", 6", 7", 8", 9", 10", 12", 14", 16"
Machine Type	Angle Grinder, Bridge Saw, Tile Saw
Brand	DiStar
Wet / Dry Use	Wet & Dry
Material to Cut	Porcelain & Tile
