Brand

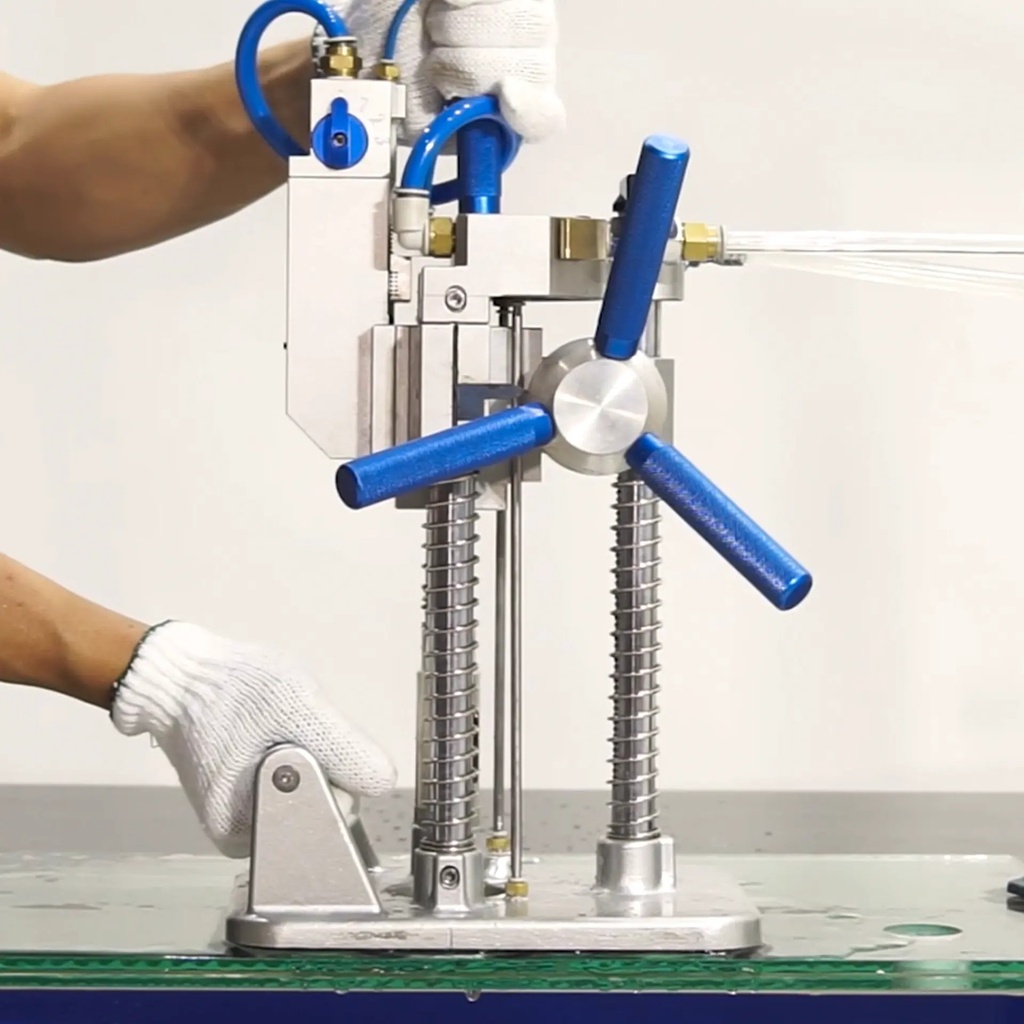

The Aardwolf Portable Air Drilling Machine is a lightweight, versatile drill made of aluminium to reduce weight. It features an integrated vacuum base, making it instantaneous to set up with no need for anchoring or clamping. The Aardwolf Air Drilling Machine quickly attaches to both smooth and rough flat surfaces once the vacuum is applied. This drilling machine is suitable for use on vertical and horizontal surfaces, whether the surface is cement, stone, glass or metal. The vacuum base provides stability.
The machine has stepless speed regulation and the max free speed is 1,200rpm.
Conveniently placed water nozzle ensures that the drill bit is kept cool during drilling.
The Drilling Depth Control design can show or set the depth that you are drilling.
The Aardwolf Portable Drilling Machine has an integrated vacuum base that can be mounted on cement, stone, glass or metal.
Features
- The machine has stepless speed regulation and the max. free speed is 1,200 rpm
- Conveniently placing water nozzle ensures that the drill bit is kept cool during drilling
- The Drilling Depth Control design can show or set the depth that you are drilling
- Three-speed control switch
- The Aardwolf Portable Drilling Machine has an integrated vacuum base that can be mounted on cement, stone, glass, or metal
APADM
| Property | Detail |
|---|---|
| Max Free Speed | 1,200 rpm (stepless, 3-speed switch) |
| Max Drill Bit Length | 4 7/8" (≈ 124 mm) |
| Chuck Diameter Range | 0.03" – 5/8" |
| Max Drilling Bore | 2" (≈ 50 mm) |
| Air Consumption | 0.56 m³/min (20 SCFM) |
| Working Air Pressure | 6.3 kgf/cm² (≈ 90 psi) |
| Air Inlet Thread | 1/4" |
| Hose Size | 3/8" |
| Sound Pressure | 88 dBA |
| Vacuum Base Footprint | 9 1/2" × 7 1/8" (≈ 241 × 181 mm) |

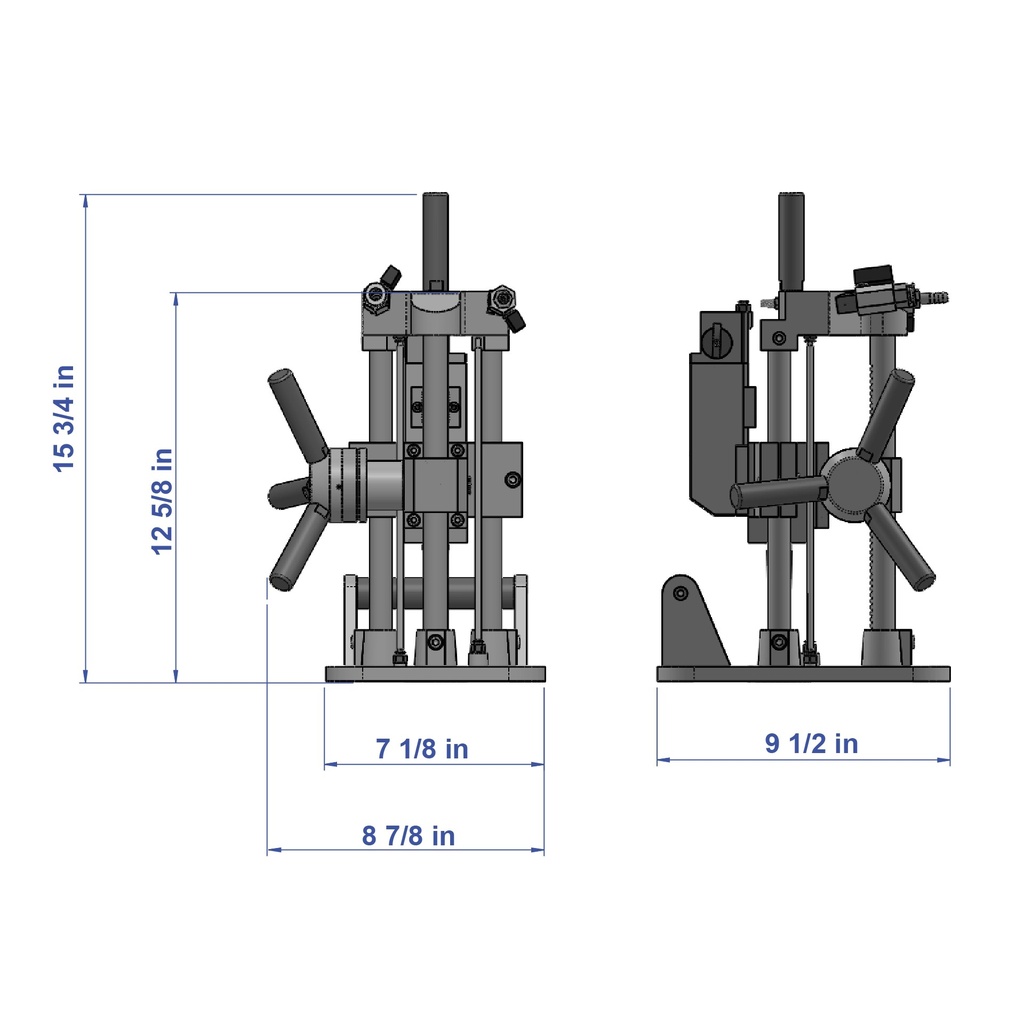

| Overall Dimensions | 9 1/8" × 9 1/8" × 15 3/8" (232 × 232 × 391 mm) |
| Net Weight | 22 lb (10 kg) |
| Gross Weight | 31 lb (14 kg) |
| Construction/Material | Aluminum body (lightweight) |
| Compatible Materials | Stone, concrete, cement, glass, metal |
| Operation type | Pneumatic with vacuum base mounting; water-cooled drilling |
| Operator Count | 1 |
| Country of Origin | Vietnam |
| Notes | Often paired with PWST water tank. Mounts to vertical and horizontal surfaces via integrated vacuum base. |
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
Specifications
| Brand | Aardwolf |
