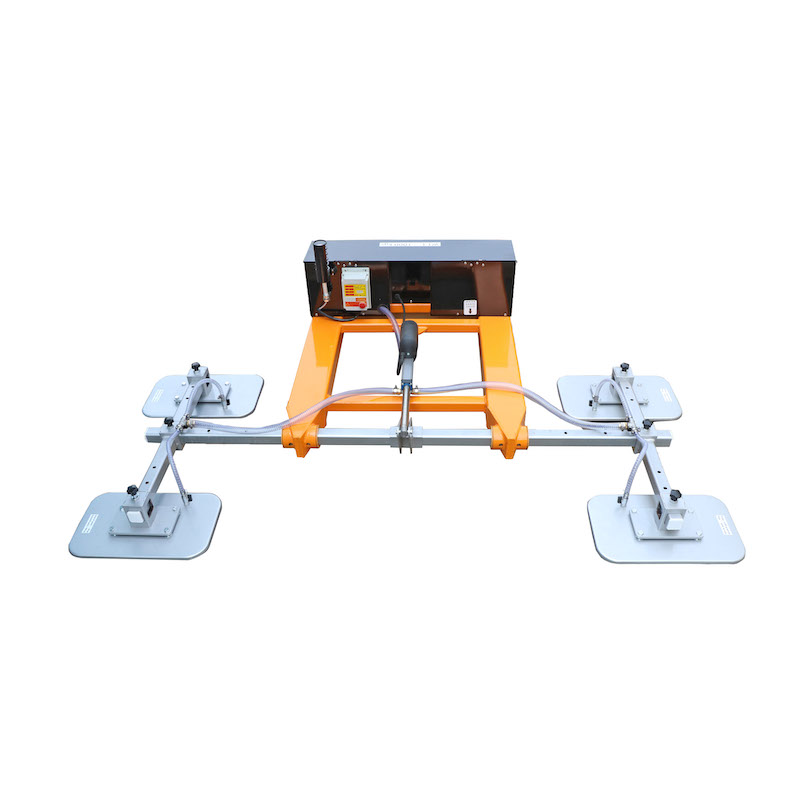

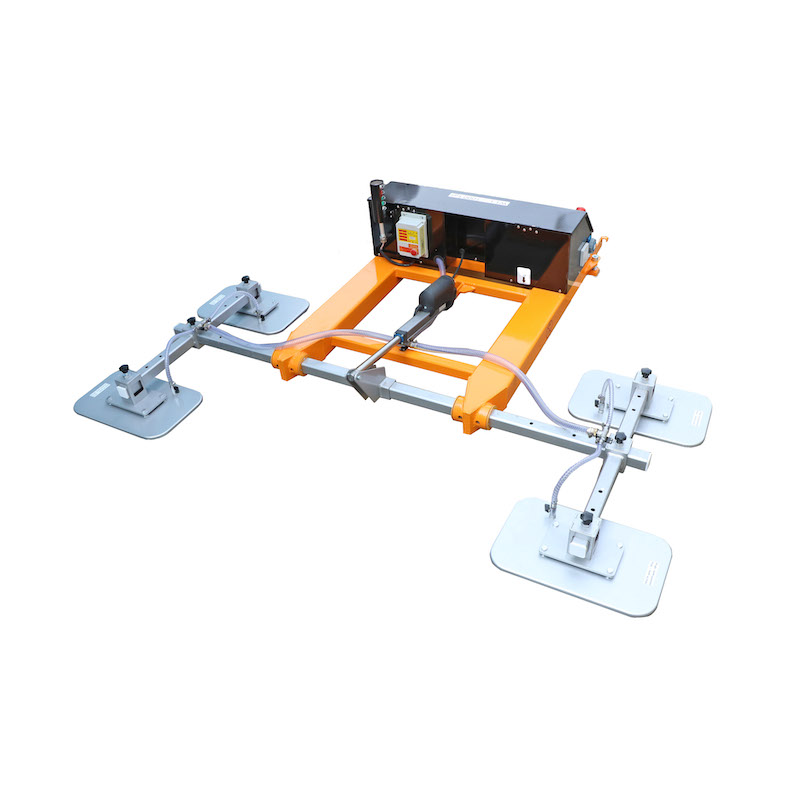

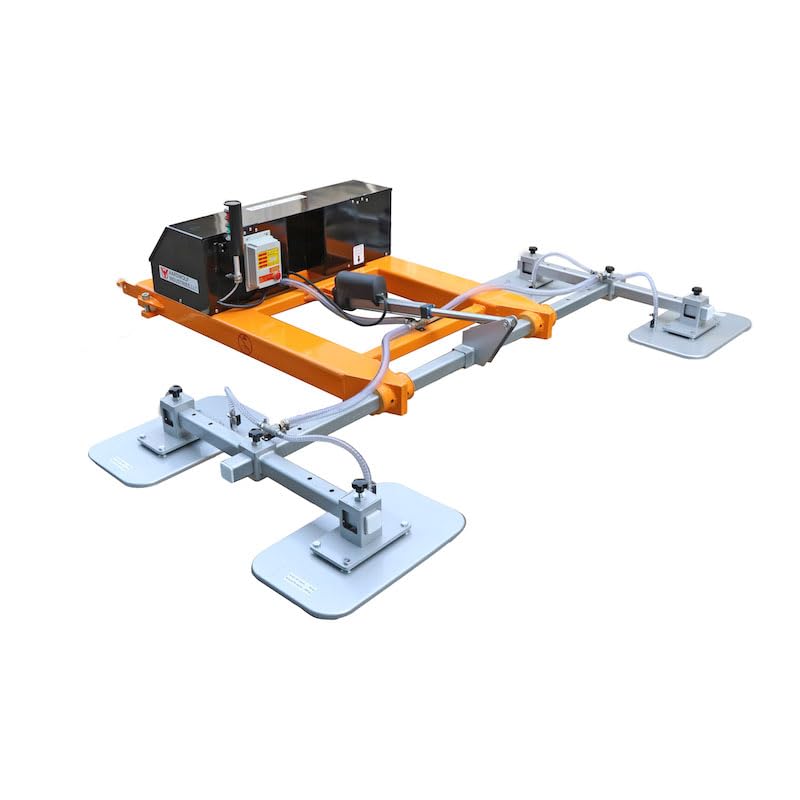

The Fork Mounted Vacuum Lifting Attachment is designed to lift and lower sheet materials. The device combines a vacuum lifter with a fork truck and remote control for handling diversified types of sheet, plate and large panels such as glass, stone, metal, concrete, plastics, timber and laminates.
Ability to turn 90 degrees through an electrically operated remote control.
Vacuum pads can be easily adjusted.
The pressure control system automatically activates the vacuum pump once the pressure exceeds the limit.
Operated by an Australian Standard AS4991-2004 battery.
Audio/visual safety system.
Integrated with a forklift through a safe chain system.
It provides versatile lifting that is cost-effective.
It is more versatile than magnets and more productive than clamps or slings
Fork Mounted Vacuum Lifter FMVLA
|
Metric
|
Imperial
|
|
| Number of pads |
4 | - |
| Pad sizes | 520x320 mm | 20.5"x12.6" |
| Work load limit | Vertical: 760 kg Horizontal: 1000 kg |
1676 lb 2204 lb |
| Net weight | 275 kg | 606 lb |
| Gross weight | 360 kg | 1200 lb |
| Packaging dimensions | L.2140 x W.1650 x H.580 mm | L.84.3" x W.65" x H.22.8" |
Fork Mounted Vacuum Lifter FMVLA04-2T
|
Metric
|
Imperial
|
|
| Number of pads |
4 | - |
| Pad sizes | 508x808 mm | 20"x32" |
| Work load limit | 2000 kg | 4408 lb |
| Power supply | 12V-100A battery |
| Charging requirements | 12V-20A |
| Standby time | >100 hours |
| Charging cycle | 1000 times |
| Charging time | 5 hours |
| Non-stop working time |
3 hours |
| 6-month warranty |
| Vacuum flow rate | 55.8 liters/minute |
| Motor | 12V - DC-12.8A |
| Brand | AARDWOLF |
| Package Dimensions | 89" x 68" x 31" |
