Marmo Elettromeccanica D20 Shark Nose - 20mm Diamond Profiling Wheel - Line 60 CNC Bore 35mm

(0 review)
$ 456.75 $ 456.75
$ 215.00
  • Brand
  • Position
  • Kit Type
Contact Us
Terms and Conditions
Position 00, 1, 2, 3, 3X, 4, 5, 6, Full Set
Kit Type EHS Kit, Electroplated Kit, Standard Kit
Brand Marmo Elettromeccanica

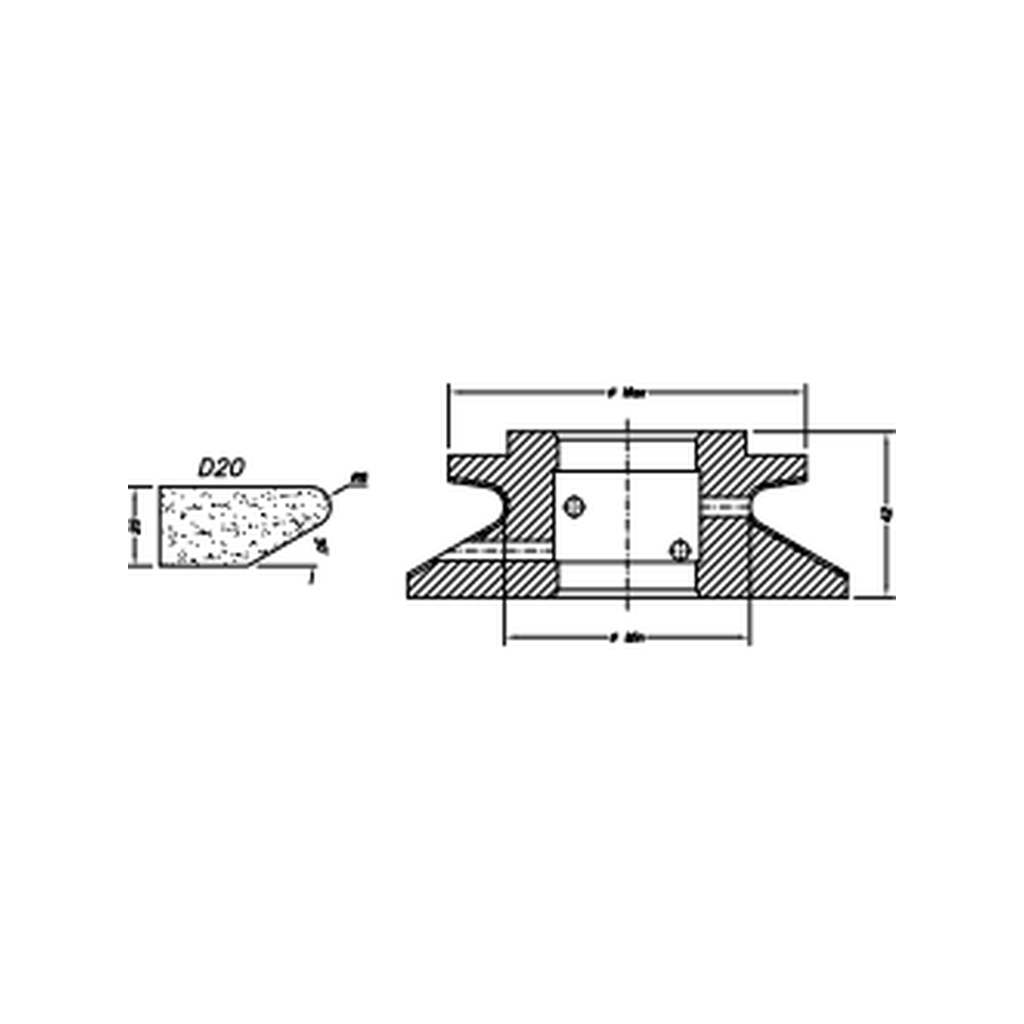

Marmo Elettromeccanica D20 Shark Nose - 20mm Diamond Profiling Wheel - Line 60 CNC Bore 35mm

Marmo Elettromeccanica D20 Shark Nose - 20mm Diamond Profiling Wheel - Line 60 CNC Bore 35mm. This listing covers 27 orderable configurations built from 12 manufacturer part codes — Kit Type: EHS Kit, Electroplated Kit, Standard Kit; Position: 00, 1, 2, 3, 3X, 4, 5, 6, Full Set. Select the configuration you need from the options above; the manufacturer code for each configuration is shown in the specifications table below.

Features

  • 12 distinct manufacturer part codes covered by this listing.
  • Kit Type options: EHS Kit, Electroplated Kit, Standard Kit.
  • Position options: 00, 1, 2, 3, 3X, 4, 5, 6, Full Set.
  • CNC operating parameters published per manufacturer code (see Specifications).
PropertyDetail
SC61311
1 / Standard Kit		Max spindle speed 6,000 rpm · Min spindle speed 4,000 rpm · Feed rate 31.5–98.43 in/min (800–2,500 mm/min) · Stock removal 0.012–0.02 in (0.3–0.5 mm)
SC62311
2 / Standard Kit		Max spindle speed 6,000 rpm · Min spindle speed 4,000 rpm · Feed rate 31.5–98.43 in/min (800–2,500 mm/min) · Stock removal 0.012–0.016 in (0.3–0.4 mm)
SC63311
3 / Electroplated Kit; 3 / Standard Kit		Max spindle speed 5,000 rpm · Min spindle speed 3,000 rpm · Feed rate 31.5–78.74 in/min (800–2,000 mm/min) · Stock removal 0.006–0.008 in (0.15–0.2 mm)
SC64311
4 / EHS Kit; 4 / Electroplated Kit; 4 / Standard Kit		Max spindle speed 3,000 rpm · Min spindle speed 2,000 rpm
SC65311
5 / EHS Kit; 5 / Electroplated Kit; 5 / Standard Kit		Max spindle speed 3,000 rpm · Min spindle speed 2,000 rpm
SC66311
6 / EHS Kit; 6 / Electroplated Kit; 6 / Standard Kit		Max spindle speed 3,000 rpm · Min spindle speed 2,000 rpm
SC67311
1 / Electroplated Kit		Max spindle speed 6,000 rpm · Feed rate 31.5–98.43 in/min (800–2,500 mm/min) · Stock removal 0.012–0.02 in (0.3–0.5 mm)
SC68311
2 / Electroplated Kit		Max spindle speed 6,000 rpm · Feed rate 31.5–98.43 in/min (800–2,500 mm/min) · Stock removal 0.012–0.016 in (0.3–0.4 mm)
SC72311
00 / EHS Kit; 00 / Standard Kit		Max spindle speed 6,000 rpm · Min spindle speed 4,000 rpm · Feed rate 39.37–157.48 in/min (1,000–4,000 mm/min) · Stock removal 0.02–0.028 in (0.5–0.7 mm)
SCE61311
1 / EHS Kit		Max spindle speed 6,000 rpm · Min spindle speed 3,000 rpm · Feed rate 59.06–393.7 in/min (1,500–10,000 mm/min) · Stock removal 0.012–0.02 in (0.3–0.5 mm)
SCE62311
2 / EHS Kit		Max spindle speed 6,000 rpm · Min spindle speed 3,000 rpm · Feed rate 59.06–393.7 in/min (1,500–10,000 mm/min) · Stock removal 0.012–0.016 in (0.3–0.4 mm)
SCE63311
3 / EHS Kit		Max spindle speed 6,000 rpm · Min spindle speed 3,000 rpm · Feed rate 59.06–393.7 in/min (1,500–10,000 mm/min) · Stock removal 0.006–0.008 in (0.15–0.2 mm)

Wear appropriate PPE (ANSI Z87.1 safety glasses, hearing protection, gloves, and dust or respiratory protection). Never exceed the wheel’s rated spindle speed — observe the min/max rpm listed in the specifications. Inspect the wheel before each use and follow the machine manufacturer’s safety instructions.
