Marmo Elettromeccanica YS20 3x3 CNC Diamond Profiling Wheel — Chamfer Step. Also known as: Stepped Chamfer. Precision-engineered in Italy for professional stone countertop fabrication on CNC machines.
Available in EHS Kit (Extra High Speed — copper bonded, fastest technology up to 15,000 mm/min), Standard Kit (Zenith + BiPower — universal sintered, all materials), and Electroplated Kit (specialized for marble and travertine — soft cut, no chipping). Each position is sold individually for easy replacement.
Each CNC profiling set consists of up to 9 positions. Select the position you need as a replacement, or purchase the full set:
| Position | Function | Technology (EHS Kit) | Technology (Standard Kit) |
|---|---|---|---|
| 00 | Breaker | Frangistone | Frangistone |
| 0 | Pre-cutting | Razorstone / Hyper-Z | Razorstone / Hyper-Z |
| 1 | Profiling (Metal) | EHS (Copper Bonded) | Zenith (Sintered) |
| 2 | Profiling (Metal) | EHS (Copper Bonded) | Zenith (Sintered) |
| 3 | Profiling (Transition) | EHS (Copper Bonded) | BiPower (Double Duty) |
| 4 | Polishing | Longlife+ / GlossForce 3.0 | Longlife+ / GlossForce 3.0 |
| 5 | Polishing | Longlife+ / GlossForce 3.0 | Longlife+ / GlossForce 3.0 |
| 6 | Final Polish | Longlife+ / GlossForce 3.0 | Longlife+ / GlossForce 3.0 |
| Specification | Details |
|---|---|

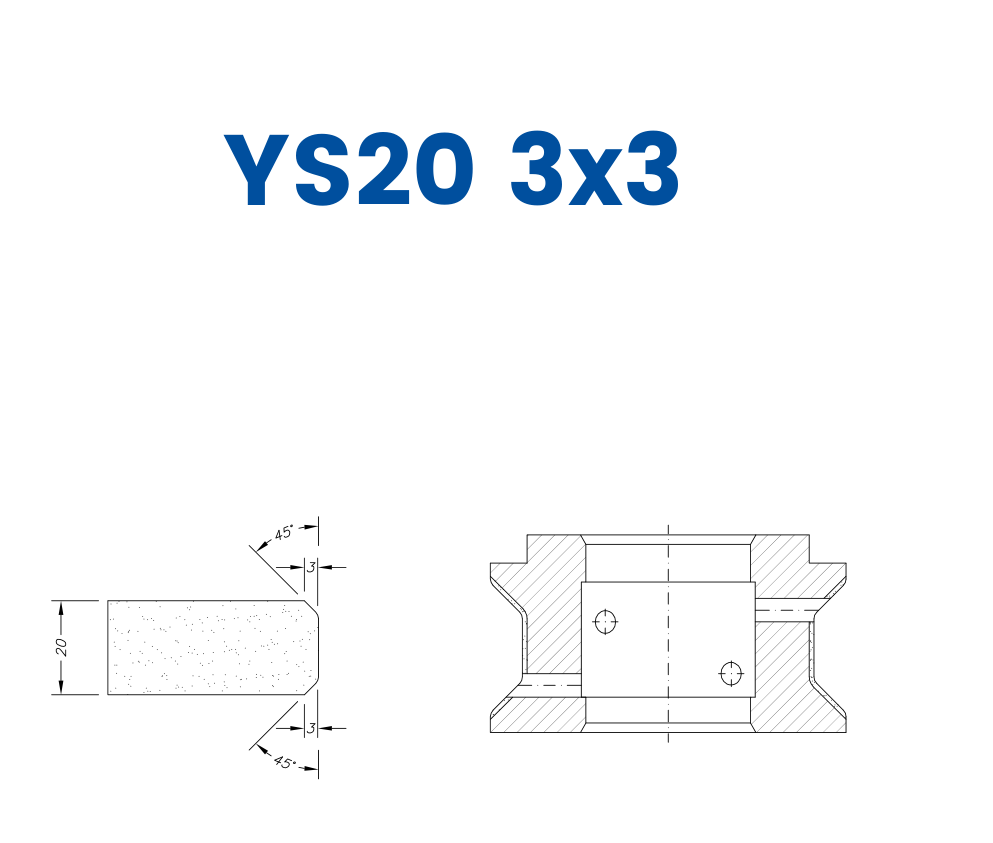

| Profile | YS20 3x3 — Chamfer Step |
| Line | Line 20 (1/2" Gas) |
| Min. Diameter | 20mm |
| Internal Radius | 10mm internal |
| Application | Internal sinkhole profiling |
| Manufacturer | Marmo Elettromeccanica (Made in Italy) |
| Country of Origin | Italy |
| HS Code | 8207.90 |
| Kit Type | Granite | Engineered Stone / Quartz | Marble / Travertine | Best For |
|---|---|---|---|---|
| EHS Kit | ✔ | ✔ | ✔ | Maximum speed on all materials |
| Standard Kit | ✔ | ✔ | ✔ | Universal — great balance of speed & life |
| Electroplated Kit | ✘ | ✘ | ✔ | Soft materials — prevents chipping |
Established in 1980 in Italy, Marmo Elettromeccanica is one of the leading companies in the world specializing in manufacturing diamond tools for processing natural and synthetic stone. With the highest number of patents in the stone industry and over 4,000 products in their catalog, they invest approximately 7% of annual revenue in R&D.
North America warehouse located at 2400 Main Street, Sayreville, NJ 08872. 1-2 day delivery across the continental US.
| Position | 1, 2, 3, 3X, 4, 5, 6, Full Set |
| Kit Type | EHS Kit, Electroplated Kit, Standard Kit |
