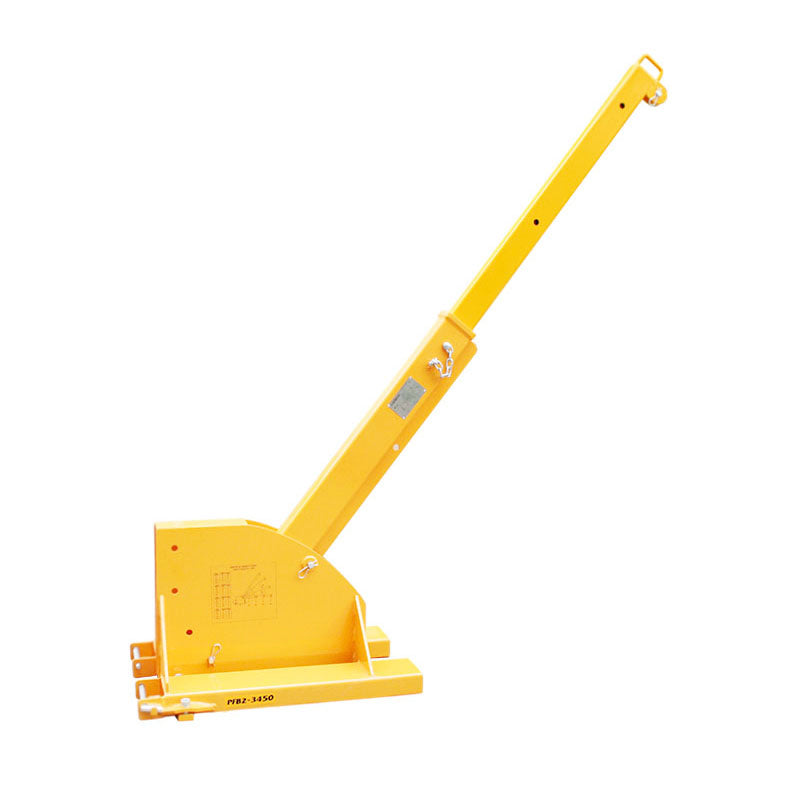

The Pivot Boom model PFB2-3450 is adjustable for height and length. The tilt facility allows the extra height to compensate for the hook and sling length lost when lifting with a jib attachment.
Features
- The boom extension is designed so that it cannot be pulled all the way out
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins
- Adjusts from 0 to 52 degrees
Specifications
Manual telescope: 76" - 134.3"
Increment: 19.4"
Slip onto fork designed with fork pocket: 6.1"x2.3"
Fork pocket: 14.4"
Working load limit: 3307 lb (Retracted) 1322 lb (Extended)
Specifications
| Brand | AARDWOLF |
| Package Dimensions | 89" x 28" x29" |
