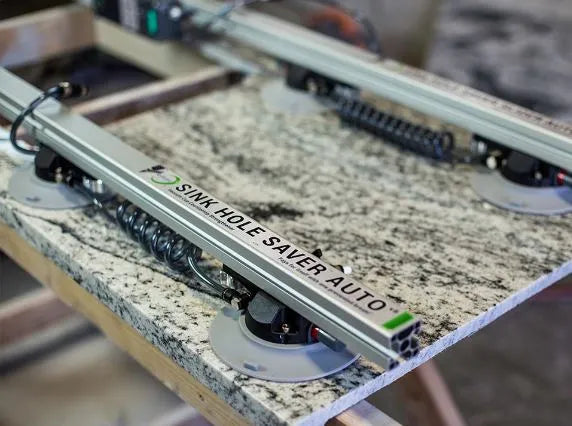

Omni Cubed 7' Sink Hole Saver™ v6 — Surface-Mounted Reinforcement Rail (Manual & Auto)
The Sink Hole Saver™ v6 is a surface-mounted reinforcement tool that strengthens fragile materials — granite, stone, and glass — during lifting, transportation, and installation. Engineered for thin materials, curved countertops, vertical panels, and high-low drops. Proprietary non-marking concave vacuum cups with triple sealing rings hold securely on textured / leathered surfaces, and high-flow vacuum release valves enable rapid removal.
Features
- FTS™ flexible triple-seal vacuum cups — secure hold on textured surfaces
- Reposition cups along the rail to clear cutouts
- High-flow vacuum release valves — fast removal
- Manual: thumb-pump cups with red-collar pressure indicator
- Auto: dual VMP750 rail-mounted rechargeable pumps (5-hour Li-Ion runtime)
- Pays for itself with one prevented break
- Manual is field-upgradable to Auto with a VMP750 add-on
| Variant | SKU | Weight | Dimensions | Cups | Pump |
|---|---|---|---|---|---|
| 7' Auto v6 | SHS-7A-20 | 14.3 lb | 84 × 5 × 6.5 in | 4 × 6" non-marking | 2 × VMP750 included |
| 7' Manual v6 | SHS-7M-20 | 11.7 lb | 84 × 5 × 6 in | 4 × 6" non-marking | Manual thumb pumps |
- Place the rail across the fragile area (sink cutout, vertical panel, high-low drop).
- Position the four vacuum cups to clear the cutout while spanning sound material.
- Manual: thumb-pump each cup until the red collar disappears. Auto: power on each VMP750 and watch the LCD confirm full vacuum.
- Lift, transport, and install with the rail acting as a stiffening backbone.
- When done, press each high-flow release valve and slide the cups away.
| Property | Detail |
|---|---|
| Rated Capacity | 70 lb per cup / 200 lb per rail |
| Vacuum Cup | 6 in non-marking, concave, FTS™ triple-seal |
| Cup Count | 4 per rail |
| Package | 84 × 5 × 6.5 in |
| Materials (both) | Aluminum, reinforced polymer, stainless steel, silicone, zinc-plated steel |
| Materials (Auto) | + anodized aluminum, polyurethane air tubes (VMP750 components) |
| Warranty | 5-year manufacturer warranty |
- Auto: 1 × rail, 4 × 6" vacuum cups with covers, vacuum hose, 2 × VMP750 rechargeable pump, smart charger
- Manual: 1 × rail, 4 × 6" vacuum cups with covers (no pump)
- Granite
- Marble
- Quartz
- Engineered Stone
- Sintered Stone
- Large-Format Tile
- Glass
Always wear appropriate PPE. Follow Omni Cubed manufacturer instructions.
