Aardwolf AL30R Slab Lifter with Rollers (7963)

Aardwolf Slab Lifter with Rollers

(0 incele)

$ 1.162,91

$ 771,23

Marka
- Aardwolf
Model

Terms and Conditions

Özellikler

Model	AL20AR, AL20R, AL30AR, AL30AWJ, AL30AWJR, AL30R, AL50A, AL50AR, AL50BR, AL50R, AL60AR, AL60R, AL75A, AL75AR, AL75R
Marka	Aardwolf

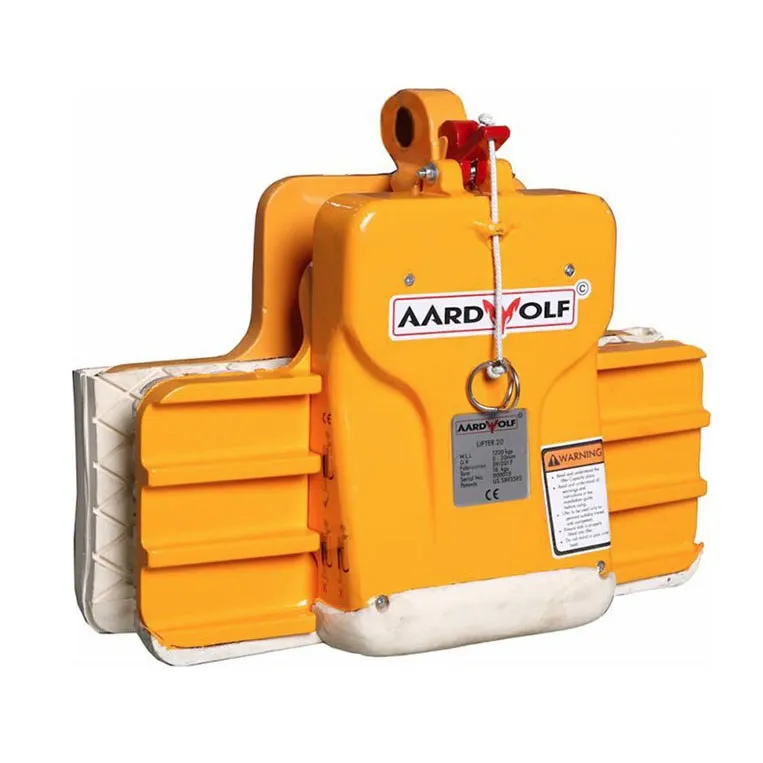

Aardwolf Slab Lifter with Rollers AL Series — Auto-Lock Stone Clamp

The Aardwolf AL Slab Lifter is an auto-locking clamp that grips slabs on pick-up and releases them on set-down. Two integrated support rollers protect the slab top edge and let the operator center the clamp by hand. The series spans capacities from 882 lb (AL20) up to roughly 3,307 lb (AL75A) with a force-multiplying grip of about 3 to 1 on most models.

Features

Size: Being of compact construction, the Aardwolf Slab Lifter AL40 allows for close-packed stone slabs to be lifted out of racks and containers. Lower-height slabs alongside taller slabs offer no problem, as with scissor clamps.
Versatile: Ideal for construction work. Because the clamping mechanism is to the front of the slab, they allow panels to be placed close against walls.
Safety: Requires only a small movement of the slab to engage and grip it, which is generally well below the over-balance angle, thus eliminating the danger to the operator.
Secure: The Aardwolf clamps grip marble and granite slabs firmly. The Aardwolf Slab Lifter AL40 has a force-multiplying factor of approximately 2.5 to 1.

Models

AL20AR — Auto Slab Lifter with Rollers, 1,764 lb

Property	Detail
Capacity	1,764 lb (800 kg)
Grip Range	0 to 0.8 in (0 to 0.8" (20 mm))
Force Multiplication	approx. 3:1
Rollers	Two top-edge rollers
Locking	Auto-lock on lift / auto-release on set-down

AL20R — Slab Lifter with Rollers, 1,764 lb

Property	Detail
Capacity	1,764 lb (800 kg)
Grip Range	0 to 0.8 in (0 to 0.8" (20 mm))
Force Multiplication	approx. 3:1
Net Weight	36 lb (16.2 kg)
Rollers	Two top-edge rollers
Locking	Manual close, automatic release

AL30AR — Auto Slab Lifter with Rollers, 2,646 lb

Property	Detail
Capacity	2,646 lb (1,200 kg)
Grip Range	0 to 1.2 in (0 to 1.2" (30 mm))
Force Multiplication	approx. 2.5:1
Net Weight	36 lb (16.3 kg)
Rollers	Two top-edge rollers
Locking	Auto-lock on lift / auto-release on set-down

AL30AWJR — Wide-Jaw Auto Slab Lifter with Rollers, 2,646 lb

Property	Detail
Capacity	2,646 lb (1,200 kg)
Grip Range	0.2 in to 1 in (5 to 1.2" (30 mm))
Jaw	Wide jaw for porcelain, marble, glass
Net Weight	45 lb (20.6 kg)
Rollers	Two top-edge rollers
Locking	Auto-lock on lift / auto-release on set-down

AL30R — Slab Lifter with Rollers, 2,646 lb

Property	Detail
Capacity	2,646 lb (1,200 kg)
Grip Range	0.2 in to 1.2 in (5 to 1.2" (30 mm))
Force Multiplication	approx. 3:1
Rollers	Two top-edge rollers
Locking	Manual close, automatic release

AL50A — Auto Slab Lifter, 2,646 lb

Property	Detail
Capacity	2,646 lb (1,200 kg)
Grip Range	0.4 in to 2 in (10 to 2.0" (50 mm))
Force Multiplication	approx. 3:1
Locking	Auto-lock on lift / auto-release on set-down

AL50AR — Auto Slab Lifter with Rollers, 2,646 lb

Property	Detail
Capacity	2,646 lb (1,200 kg)
Grip Range	0.4 in to 2 in (10 to 2.0" (50 mm))
Force Multiplication	approx. 3:1
Rollers	Two top-edge rollers
Locking	Auto-lock on lift / auto-release on set-down

AL50BR — Type B Slab Lifter with Rollers, 2,646 lb

Property	Detail
Capacity	2,646 lb (1,200 kg)
Grip Range	0.4 in to 2 in (10 to 2.0" (50 mm))
Type	B build with rollers
Rollers	Two top-edge rollers
Locking	Manual close, automatic release

AL50R — Slab Lifter with Rollers, 2,646 lb

Property	Detail
Capacity	2,646 lb (1,200 kg)
Grip Range	0.4 in to 2 in (10 to 2.0" (50 mm))
Force Multiplication	approx. 3:1
Net Weight	42 lb (19 kg)
Rollers	Two top-edge rollers
Locking	Manual close, automatic release

AL60AR — Auto Slab Lifter with Rollers, 2,646 lb

Property	Detail
Capacity	2,646 lb (1,200 kg)
Grip Range	0.6 in to 2.4 in (15 to 2.4" (60 mm))
Force Multiplication	approx. 2.5:1
Rollers	Two top-edge rollers
Locking	Auto-lock on lift / auto-release on set-down

AL60R — Slab Lifter with Rollers, 2,646 lb

Property	Detail
Capacity	2,646 lb (1,200 kg)
Grip Range	0.6 in to 2.4 in (15 to 2.4" (60 mm))
Force Multiplication	approx. 2.5:1
Net Weight	55 lb (25 kg)
Rollers	Two top-edge rollers
Locking	Manual close, automatic release

AL75A — Auto Slab Lifter, 2,646 lb

Property	Detail
Capacity	2,646 lb (1,200 kg)
Grip Range	1.2 in to 3 in (30 to 3.0" (75 mm))
Force Multiplication	approx. 2.5:1
Locking	Auto-lock on lift / auto-release on set-down

AL75AR — Auto Slab Lifter with Rollers, 2,646 lb

Property	Detail
Capacity	2,646 lb (1,200 kg)
Grip Range	1.2 in to 3 in (30 to 3.0" (75 mm))
Force Multiplication	approx. 2.5:1
Rollers	Two top-edge rollers
Locking	Auto-lock on lift / auto-release on set-down

AL75R — Slab Lifter with Rollers, 2,646 lb

Property	Detail
Capacity	2,646 lb (1,200 kg)
Grip Range	1.2 in to 3 in (30 to 3.0" (75 mm))
Force Multiplication	approx. 2.5:1
Rollers	Two top-edge rollers
Locking	Manual close, automatic release

Specifications

Property	Detail
Brand	Aardwolf
Maximum Lifting Capacity	2,646 lb (1,200 kg)
Jaws	Extra-wide
Rollers	Two support rollers (centering + edge protection)
Clamp Plates	Rubber-coated
Locking	Automatic gravity-controlled
Safety Factor	3:1
Country of Origin	Vietnam

How to Use

Hook the lifter shackle to a crane, gantry, or hoist.
Lower the lifter so the rollers rest on the slab top edge.
Slide the lifter laterally to center it on the slab balance point.
Lift slowly; the auto-lock cam engages as tension builds.
Lower fully onto a rack or floor to release the clamp automatically.
Wear gloves, hard hat, and steel-toe boots during every lift.

Compatibility

Granite, marble, quartzite, engineered quartz, porcelain slabs. Match model grip range to slab thickness for a secure auto-lock.
