Aardwolf Slab Lifter with Rollers

(0 review)
$ 1,162.91 $ 1,162.91
$ 771.23
  • Brand
  • Model
Contact Us
Terms and Conditions
Model AL20AR, AL20R, AL30AR, AL30AWJ, AL30AWJR, AL30R, AL50A, AL50AR, AL50BR, AL50R, AL60AR, AL60R, AL75A, AL75AR, AL75R
Brand Aardwolf

Aardwolf Slab Lifter with Rollers AL Series — Auto-Lock Stone Clamp

The Aardwolf AL Slab Lifter is an auto-locking clamp that grips slabs on pick-up and releases them on set-down. Two integrated support rollers protect the slab top edge and let the operator center the clamp by hand. The series spans capacities from 882 lb (AL20) up to roughly 3,307 lb (AL75A) with a force-multiplying grip of about 3 to 1 on most models.

Features

  • Size: Being of compact construction, the Aardwolf Slab Lifter AL40 allows for close-packed stone slabs to be lifted out of racks and containers. Lower-height slabs alongside taller slabs offer no problem, as with scissor clamps.
  • Versatile: Ideal for construction work. Because the clamping mechanism is to the front of the slab, they allow panels to be placed close against walls.
  • Safety: Requires only a small movement of the slab to engage and grip it, which is generally well below the over-balance angle, thus eliminating the danger to the operator.
  • Secure: The Aardwolf clamps grip marble and granite slabs firmly. The Aardwolf Slab Lifter AL40 has a force-multiplying factor of approximately 2.5 to 1.

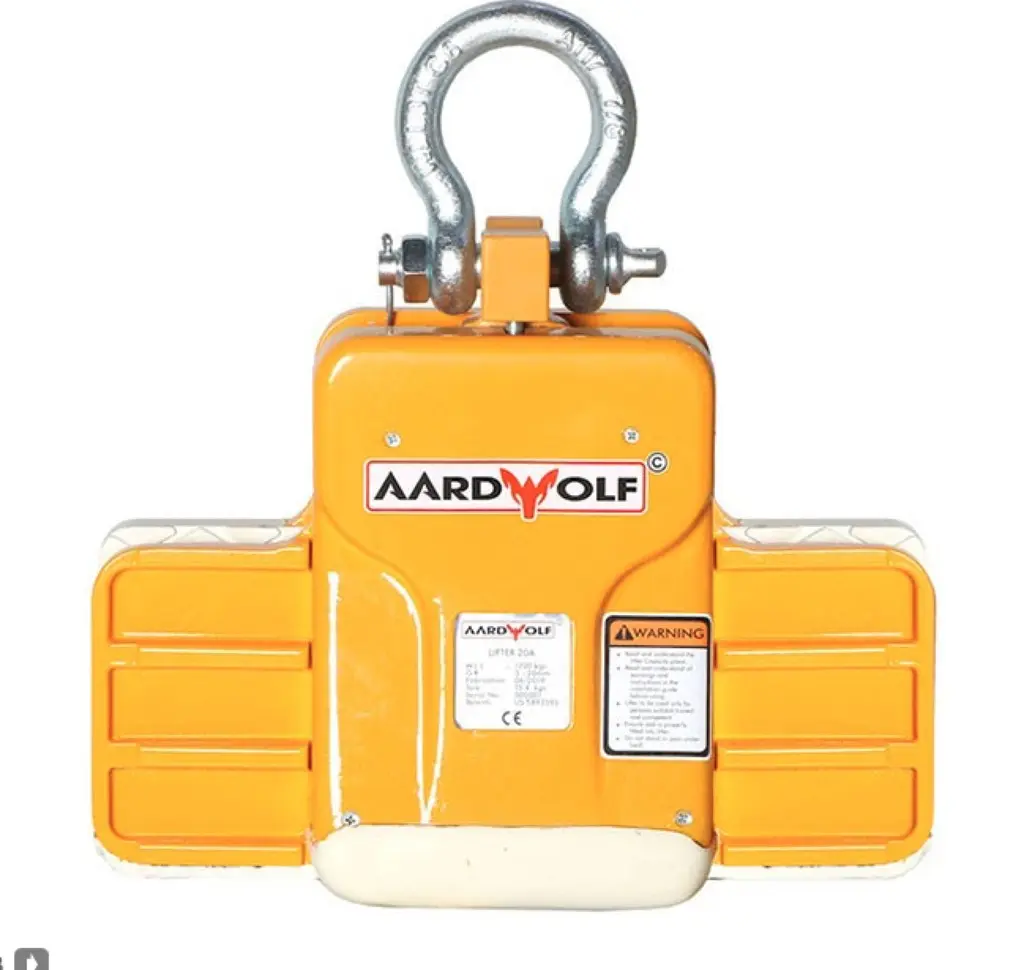

AL20AR — Auto Slab Lifter with Rollers, 1,764 lb
Property Detail
Capacity 1,764 lb (800 kg)
Grip Range 0 to 0.8 in (0 to 0.8" (20 mm))
Force Multiplication approx. 3:1
Rollers Two top-edge rollers
Locking Auto-lock on lift / auto-release on set-down

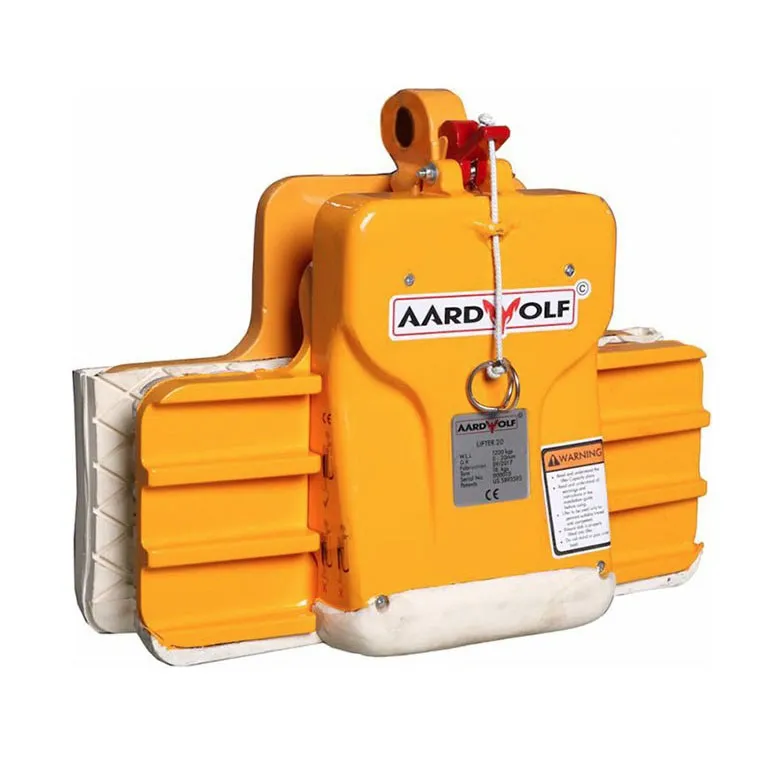

AL20R — Slab Lifter with Rollers, 1,764 lb
Property Detail
Capacity 1,764 lb (800 kg)
Grip Range 0 to 0.8 in (0 to 0.8" (20 mm))
Force Multiplication approx. 3:1
Net Weight 36 lb (16.2 kg)
Rollers Two top-edge rollers
Locking Manual close, automatic release

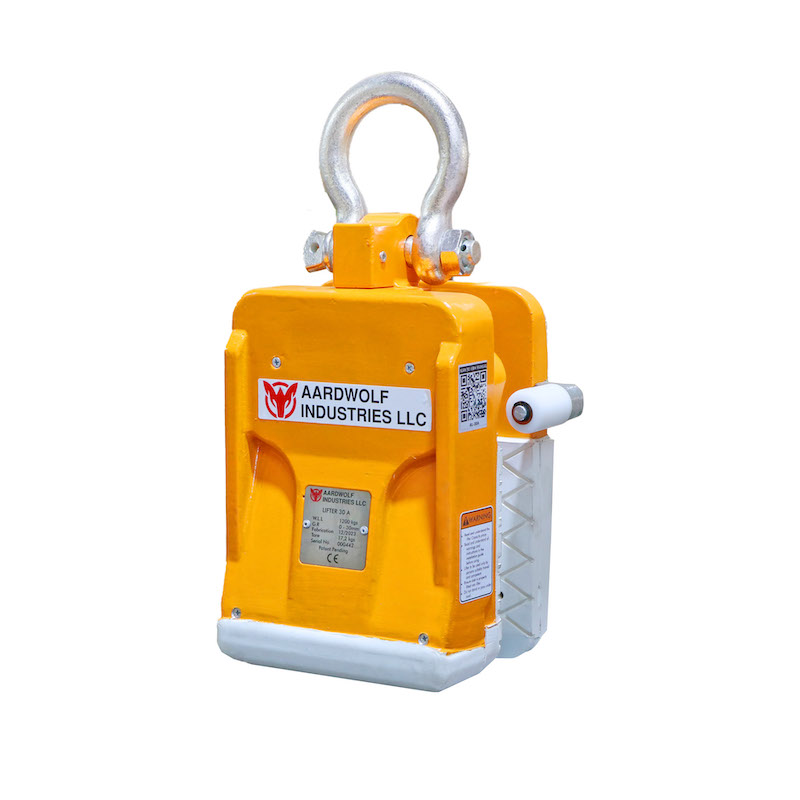

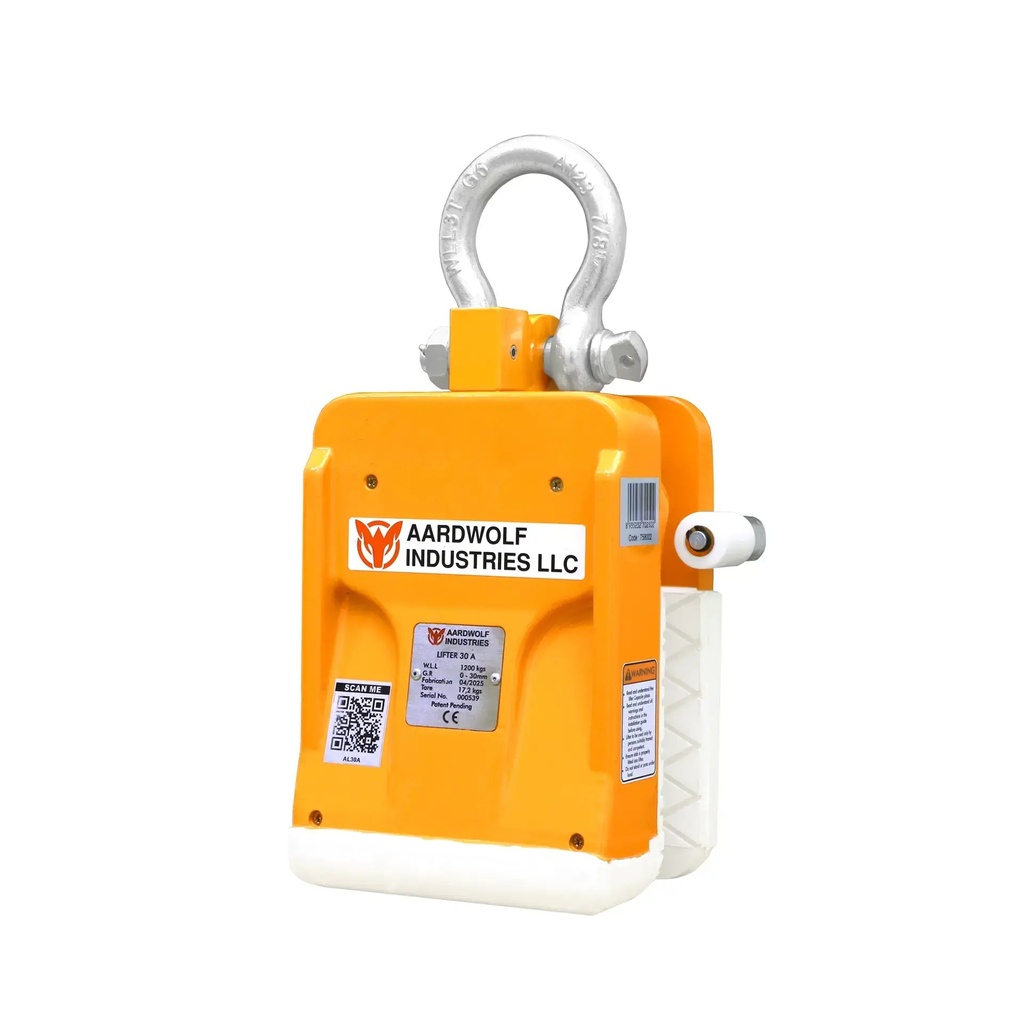

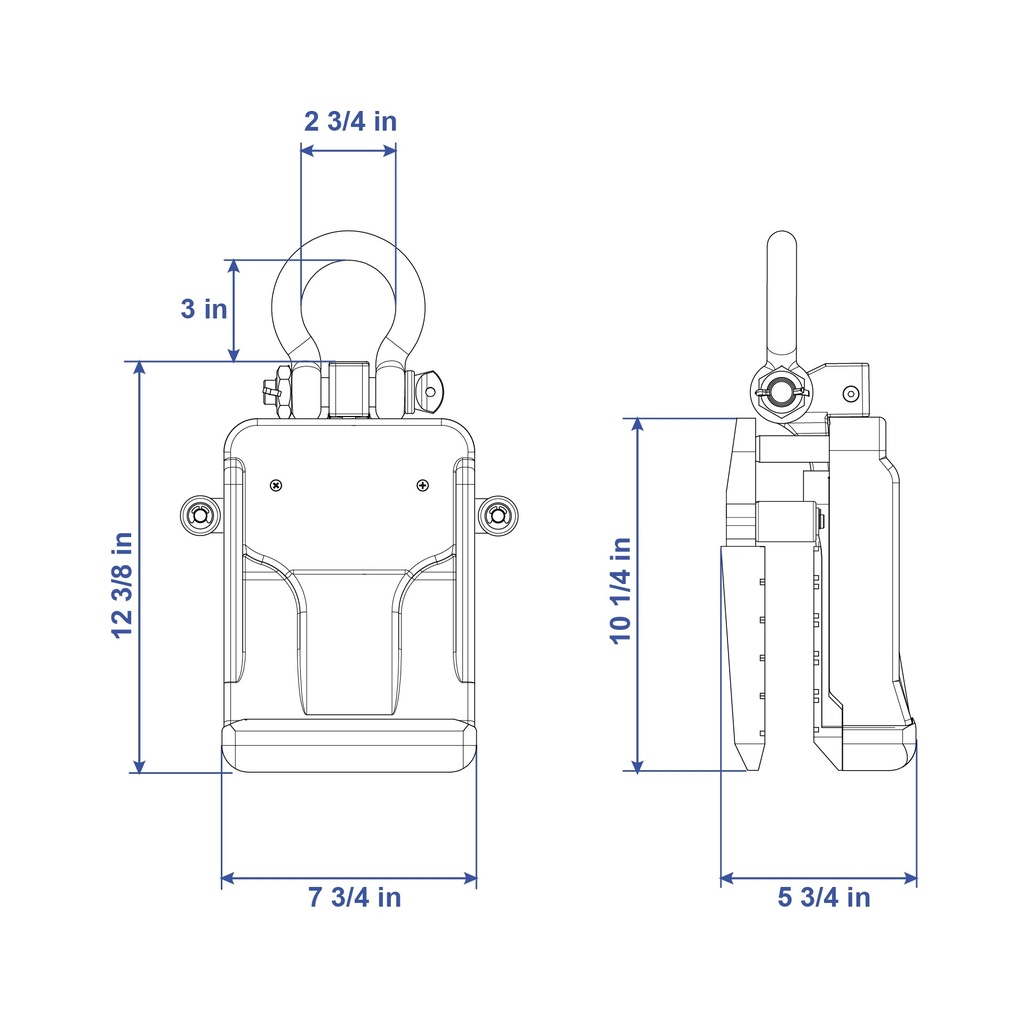

AL30AR — Auto Slab Lifter with Rollers, 2,646 lb
Property Detail
Capacity 2,646 lb (1,200 kg)
Grip Range 0 to 1.2 in (0 to 1.2" (30 mm))
Force Multiplication approx. 2.5:1
Net Weight 36 lb (16.3 kg)
Rollers Two top-edge rollers
Locking Auto-lock on lift / auto-release on set-down
AL30AWJR — Wide-Jaw Auto Slab Lifter with Rollers, 2,646 lb
Property Detail
Capacity 2,646 lb (1,200 kg)
Grip Range 0.2 in to 1 in (5 to 1.2" (30 mm))
Jaw Wide jaw for porcelain, marble, glass
Net Weight 45 lb (20.6 kg)
Rollers Two top-edge rollers
Locking Auto-lock on lift / auto-release on set-down

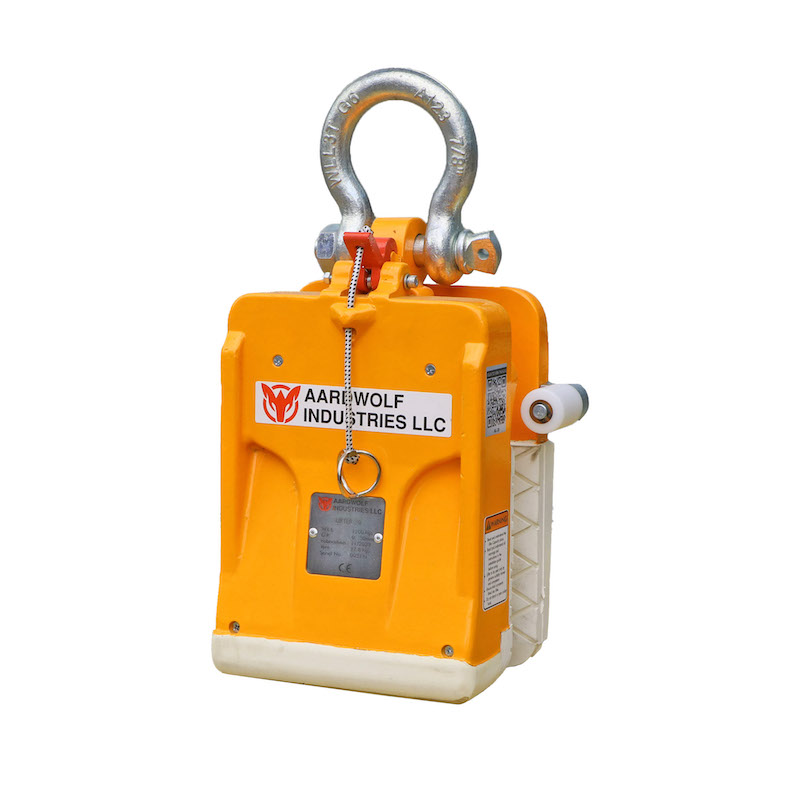

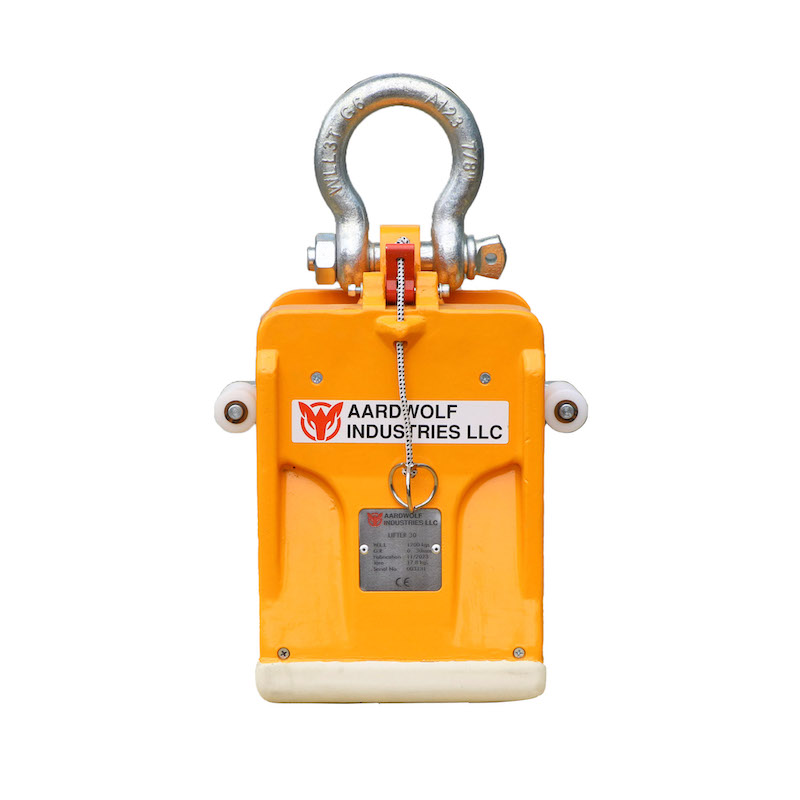

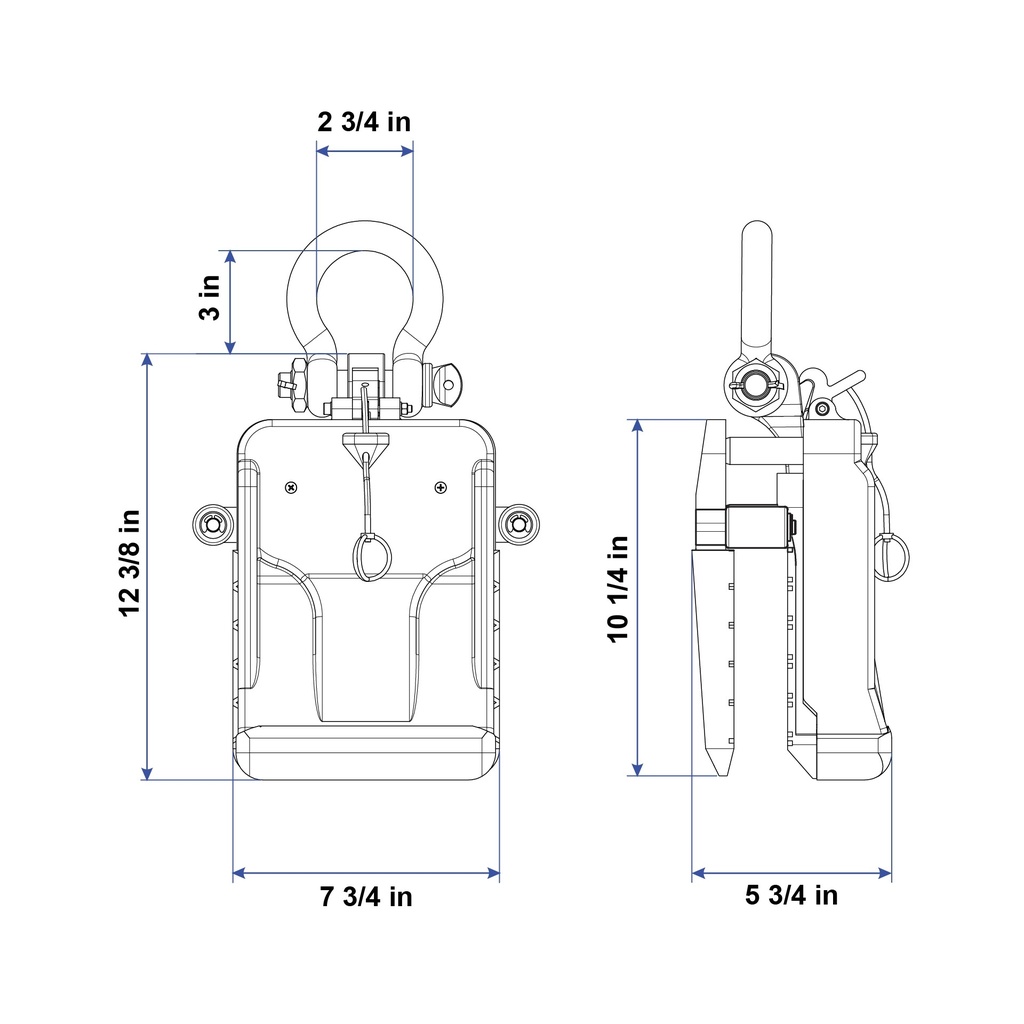

AL30R — Slab Lifter with Rollers, 2,646 lb
Property Detail
Capacity 2,646 lb (1,200 kg)
Grip Range 0.2 in to 1.2 in (5 to 1.2" (30 mm))
Force Multiplication approx. 3:1
Rollers Two top-edge rollers
Locking Manual close, automatic release
AL50A — Auto Slab Lifter, 2,646 lb
Property Detail
Capacity 2,646 lb (1,200 kg)
Grip Range 0.4 in to 2 in (10 to 2.0" (50 mm))
Force Multiplication approx. 3:1
Locking Auto-lock on lift / auto-release on set-down

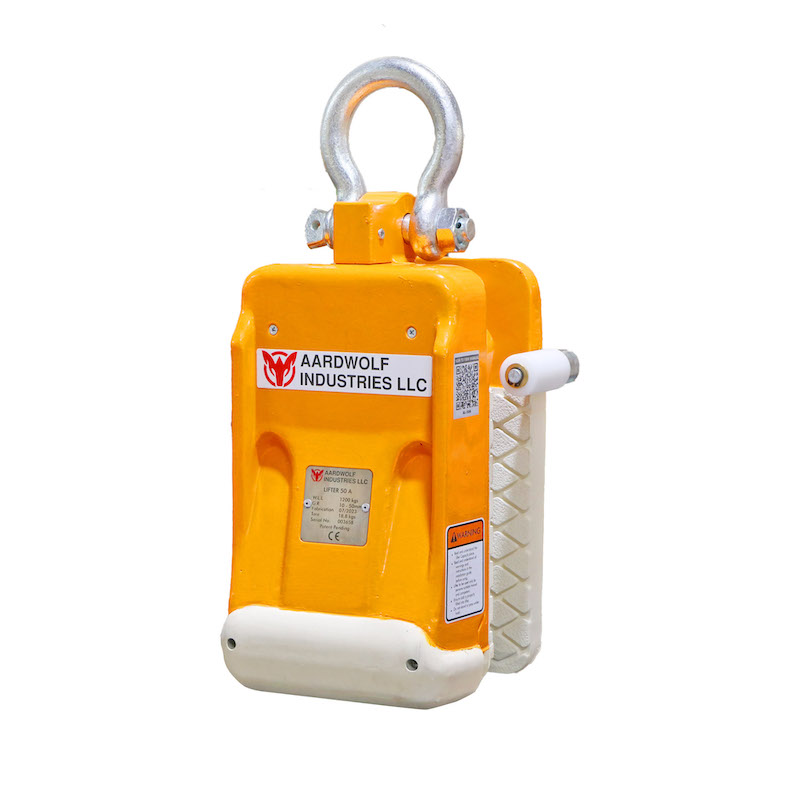

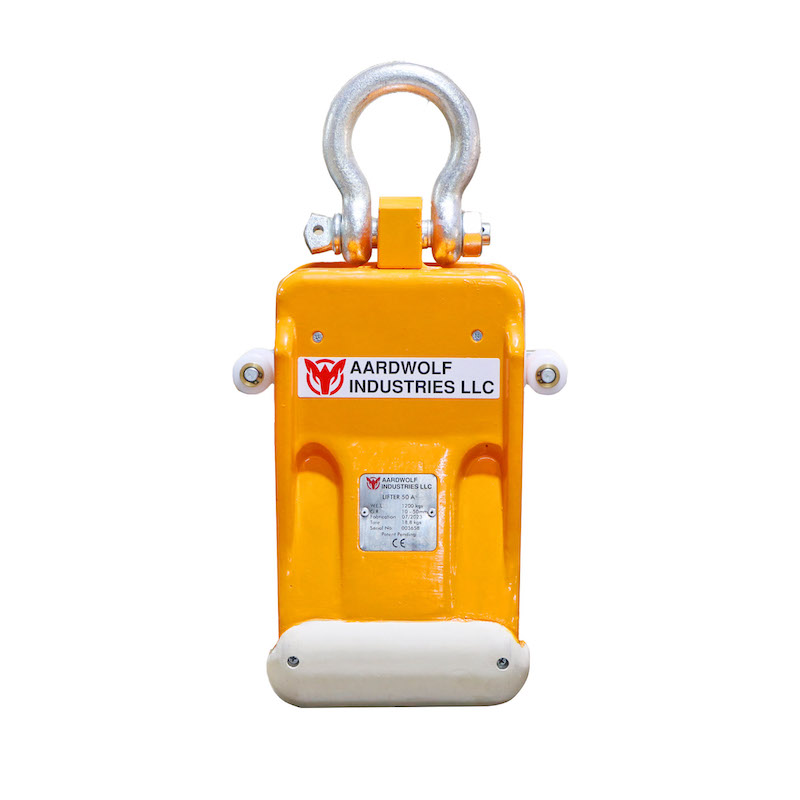

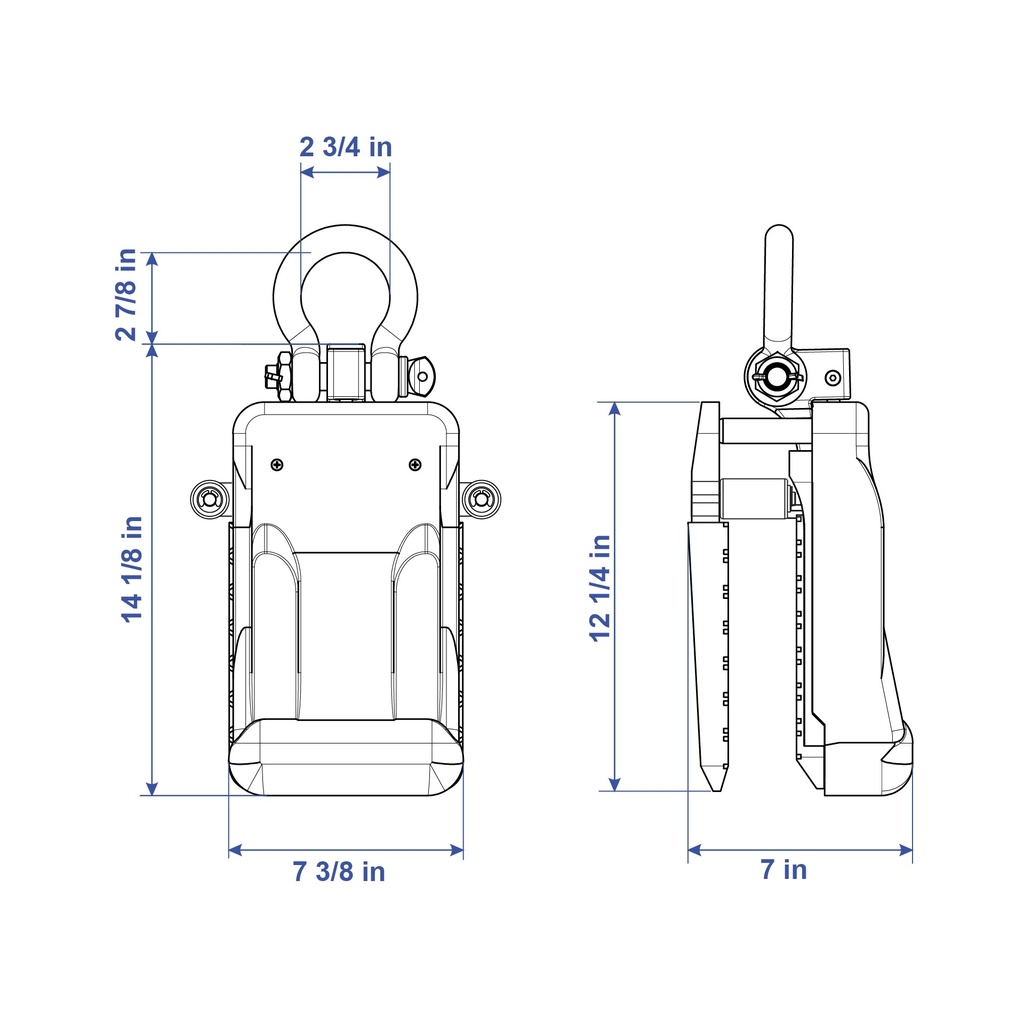

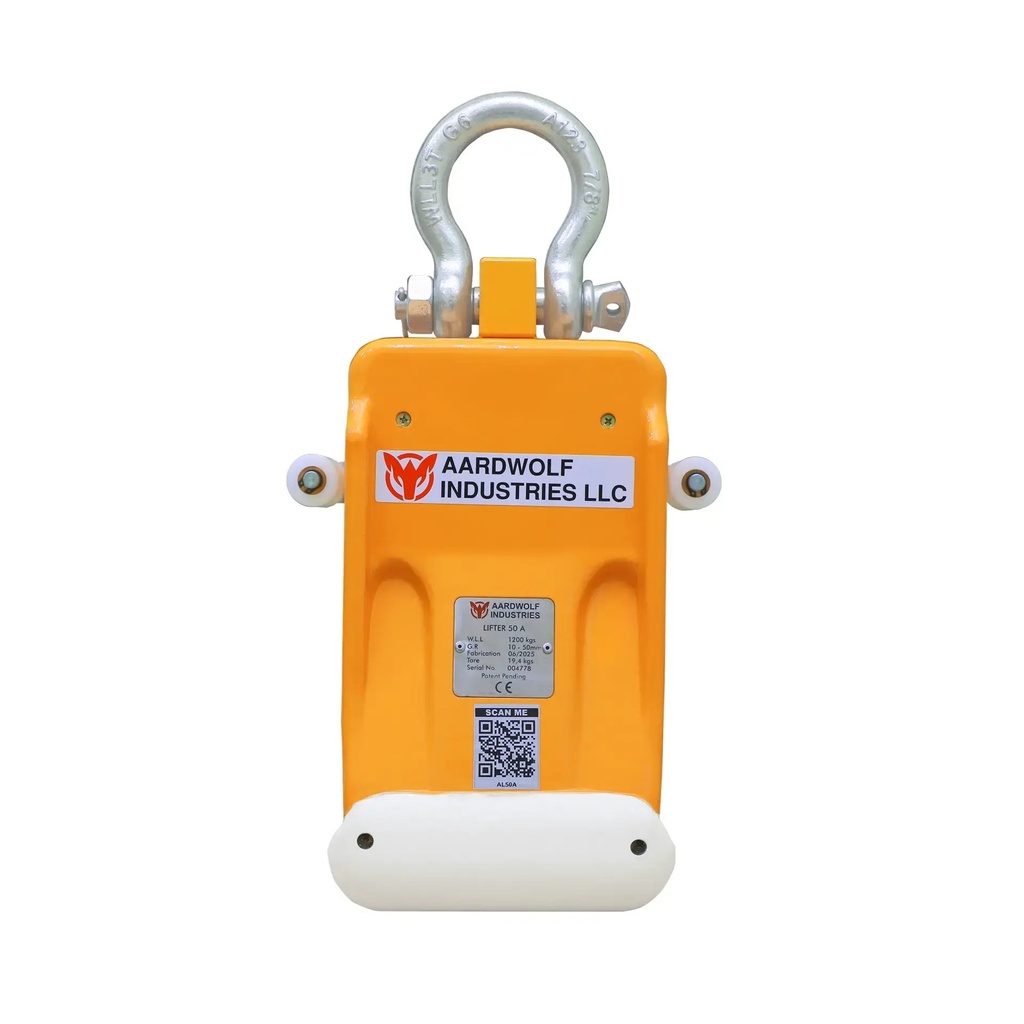

AL50AR — Auto Slab Lifter with Rollers, 2,646 lb
Property Detail
Capacity 2,646 lb (1,200 kg)
Grip Range 0.4 in to 2 in (10 to 2.0" (50 mm))
Force Multiplication approx. 3:1
Rollers Two top-edge rollers
Locking Auto-lock on lift / auto-release on set-down

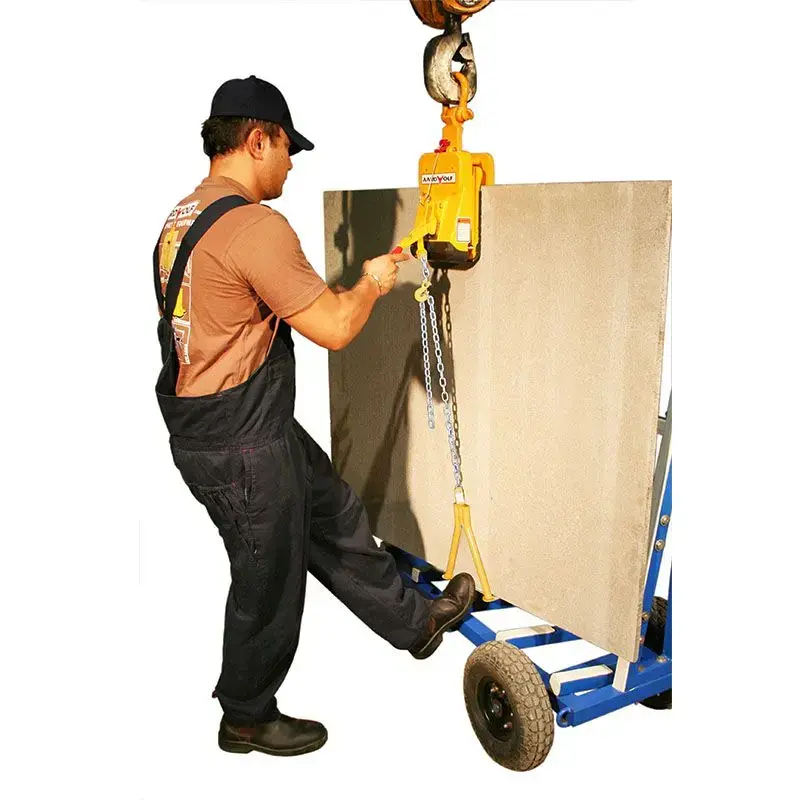

AL50BR — Type B Slab Lifter with Rollers, 2,646 lb
Property Detail
Capacity 2,646 lb (1,200 kg)
Grip Range 0.4 in to 2 in (10 to 2.0" (50 mm))
Type B build with rollers
Rollers Two top-edge rollers
Locking Manual close, automatic release

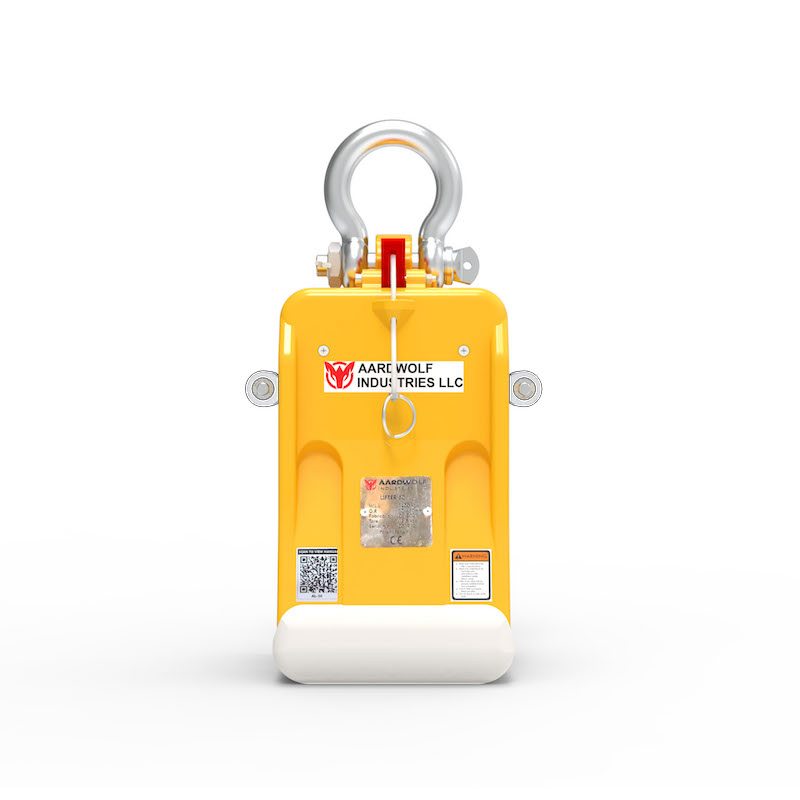

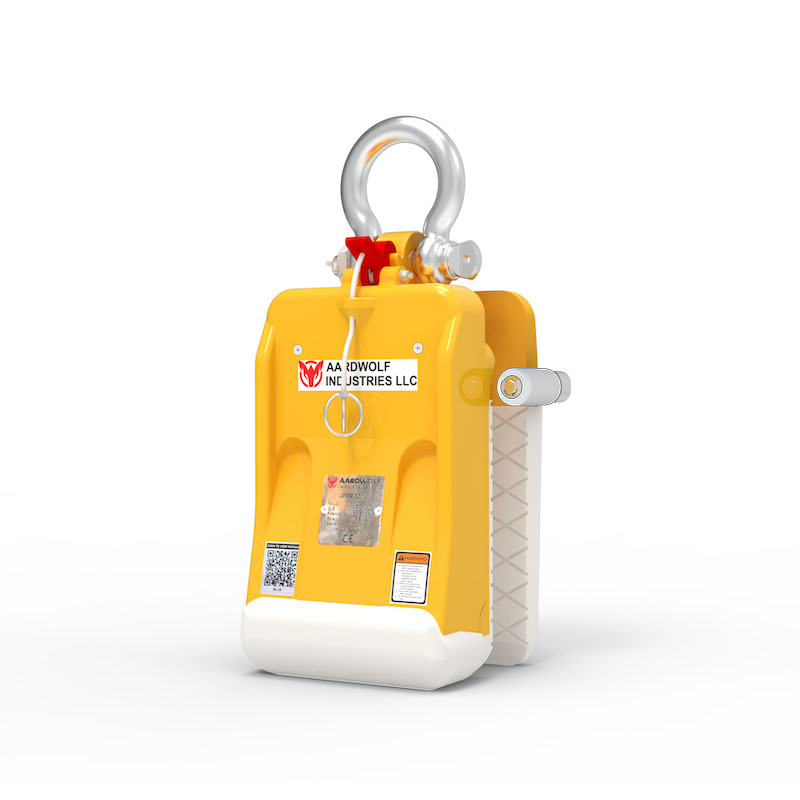

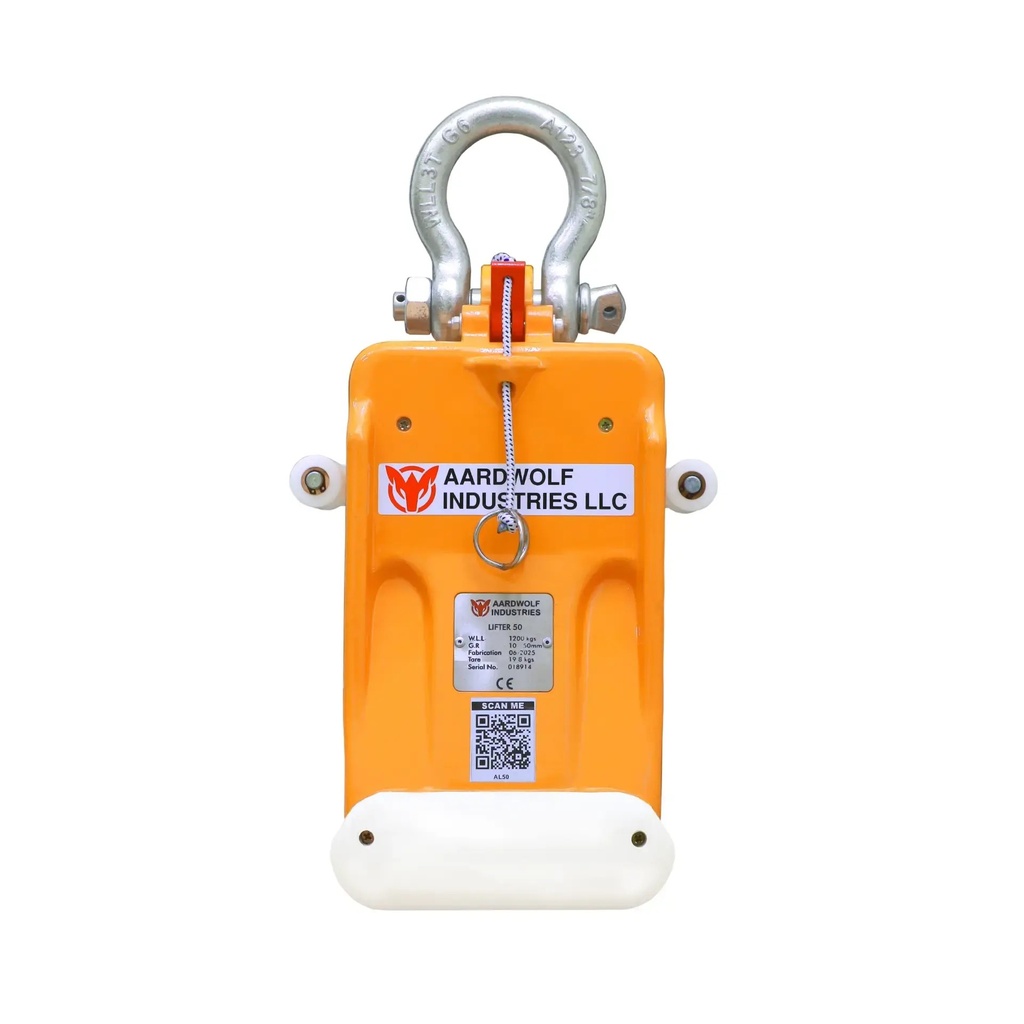

AL50R — Slab Lifter with Rollers, 2,646 lb
Property Detail
Capacity 2,646 lb (1,200 kg)
Grip Range 0.4 in to 2 in (10 to 2.0" (50 mm))
Force Multiplication approx. 3:1
Net Weight 42 lb (19 kg)
Rollers Two top-edge rollers
Locking Manual close, automatic release

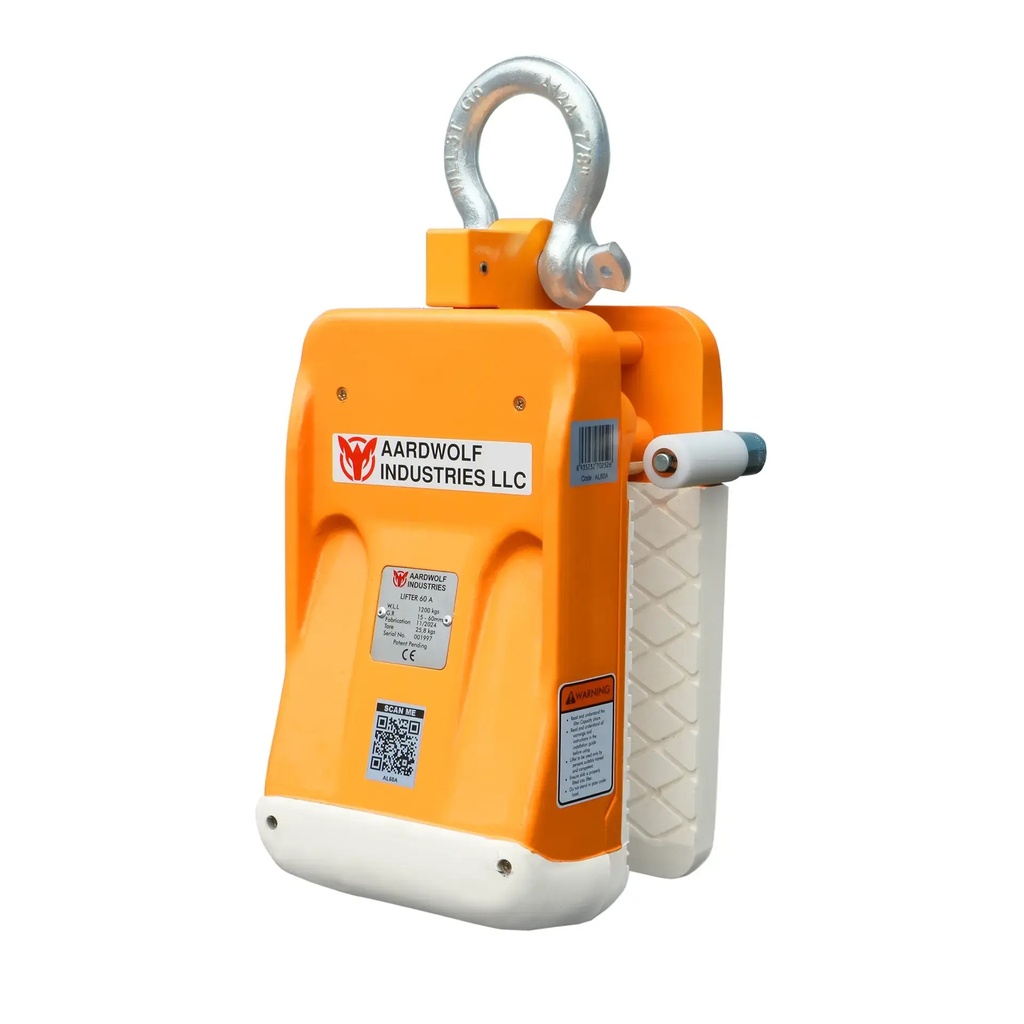

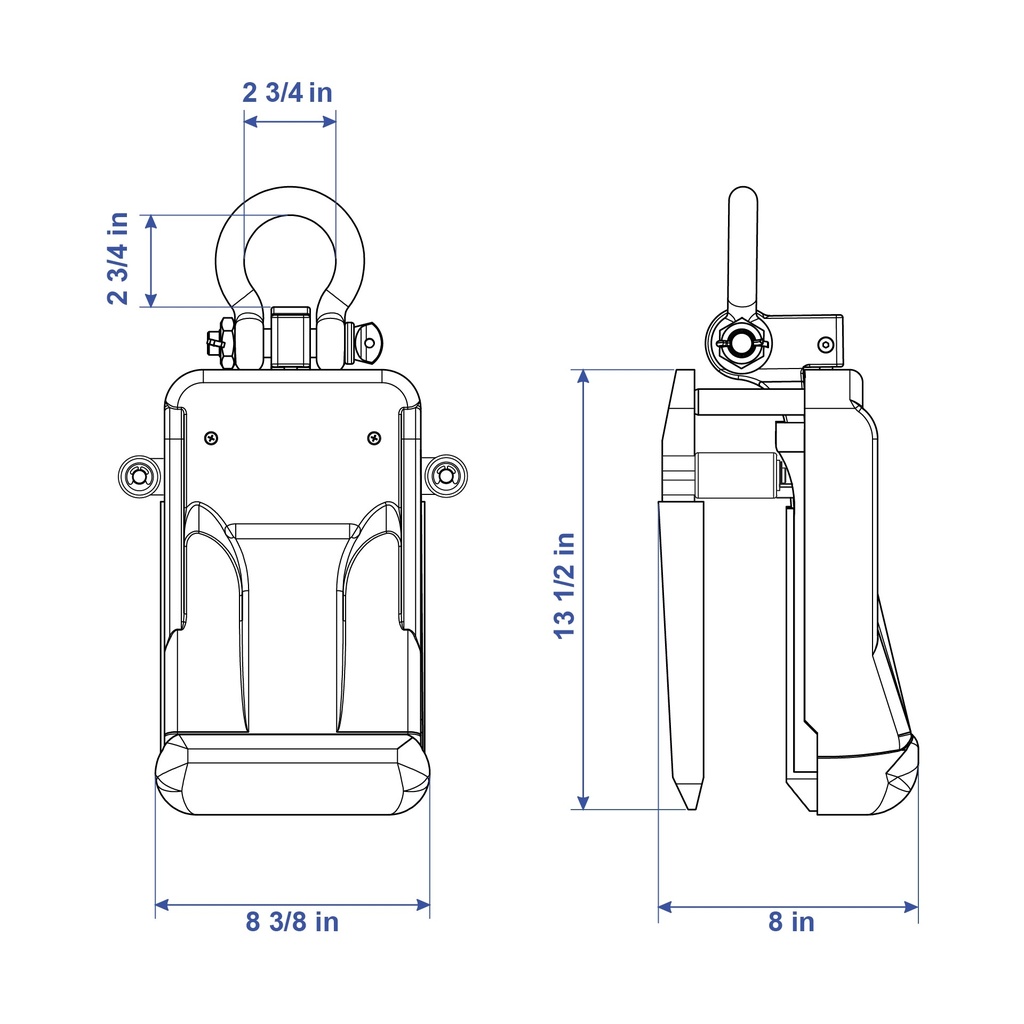

AL60AR — Auto Slab Lifter with Rollers, 2,646 lb
Property Detail
Capacity 2,646 lb (1,200 kg)
Grip Range 0.6 in to 2.4 in (15 to 2.4" (60 mm))
Force Multiplication approx. 2.5:1
Rollers Two top-edge rollers
Locking Auto-lock on lift / auto-release on set-down

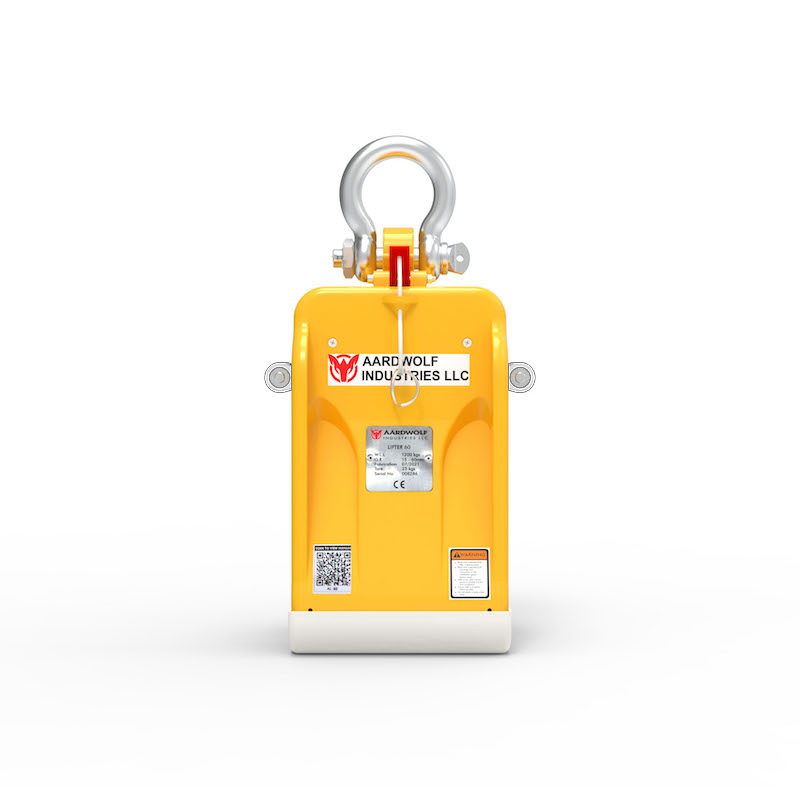

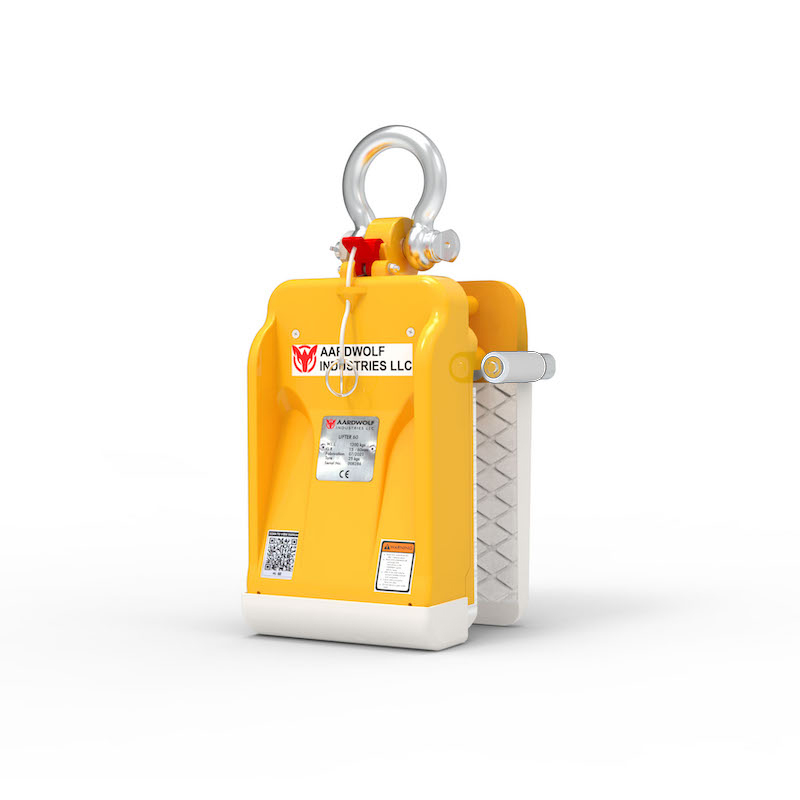

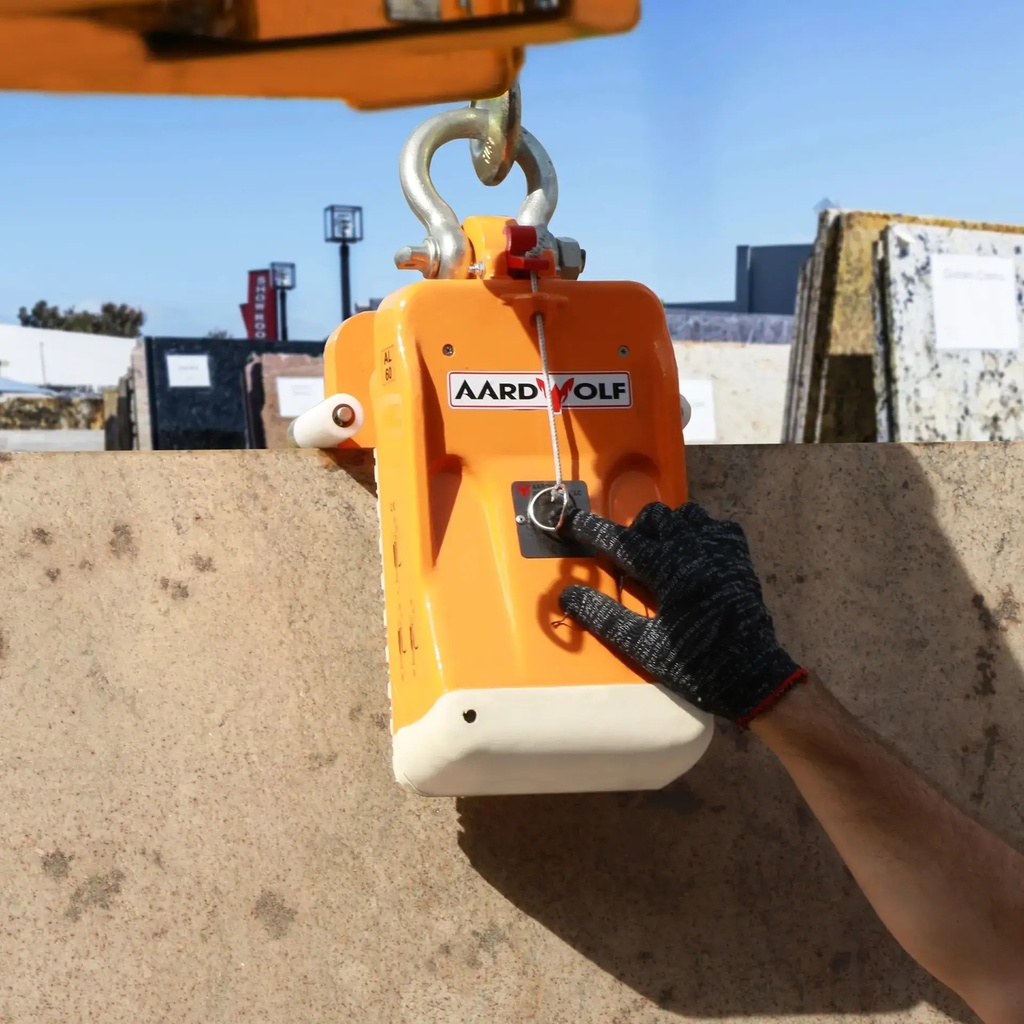

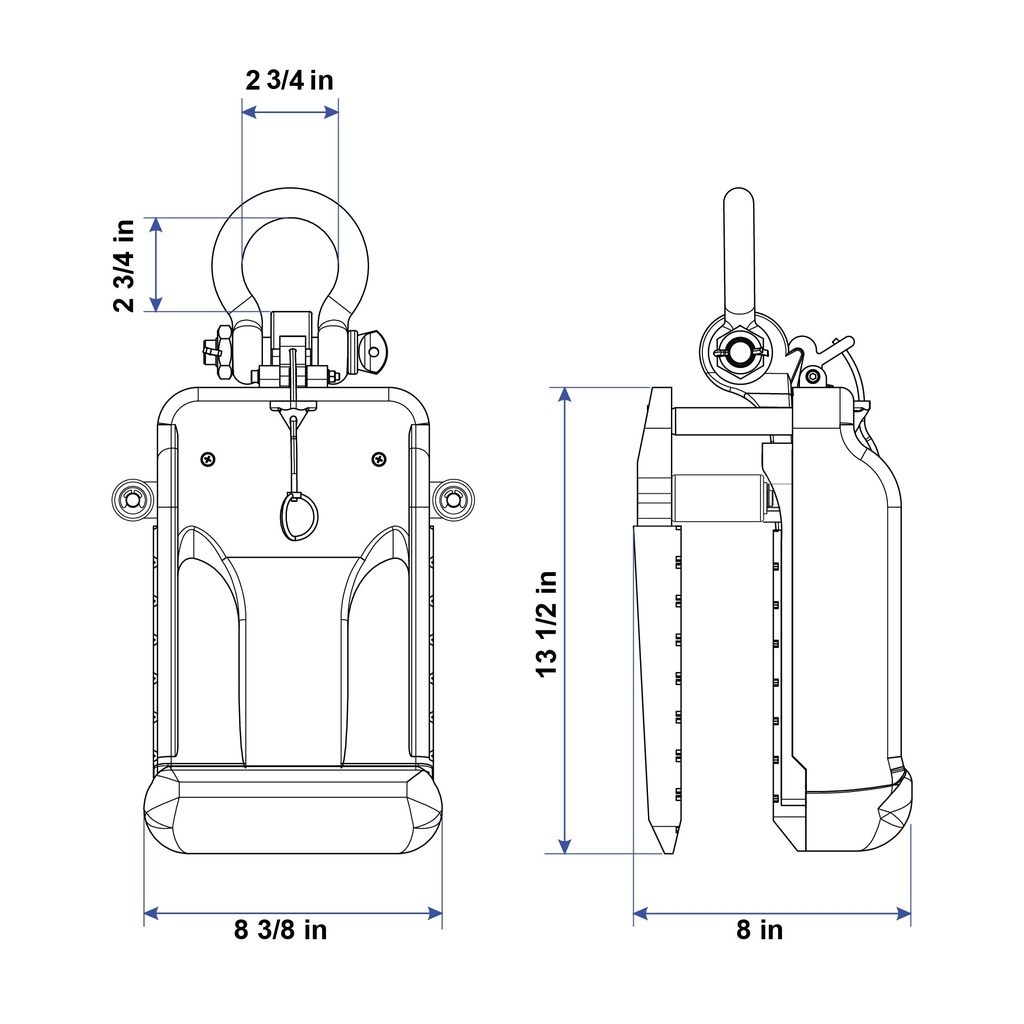

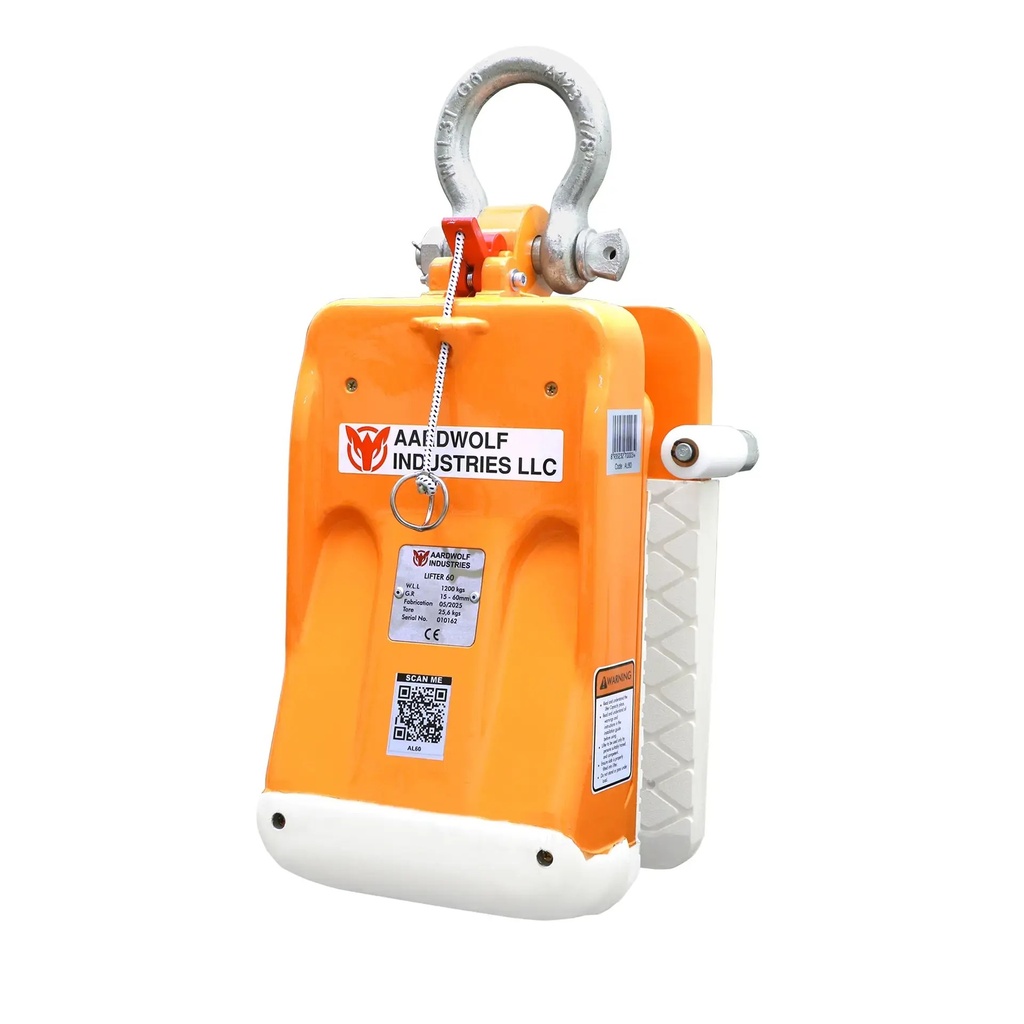

AL60R — Slab Lifter with Rollers, 2,646 lb
Property Detail
Capacity 2,646 lb (1,200 kg)
Grip Range 0.6 in to 2.4 in (15 to 2.4" (60 mm))
Force Multiplication approx. 2.5:1
Net Weight 55 lb (25 kg)
Rollers Two top-edge rollers
Locking Manual close, automatic release
AL75A — Auto Slab Lifter, 2,646 lb
Property Detail
Capacity 2,646 lb (1,200 kg)
Grip Range 1.2 in to 3 in (30 to 3.0" (75 mm))
Force Multiplication approx. 2.5:1
Locking Auto-lock on lift / auto-release on set-down

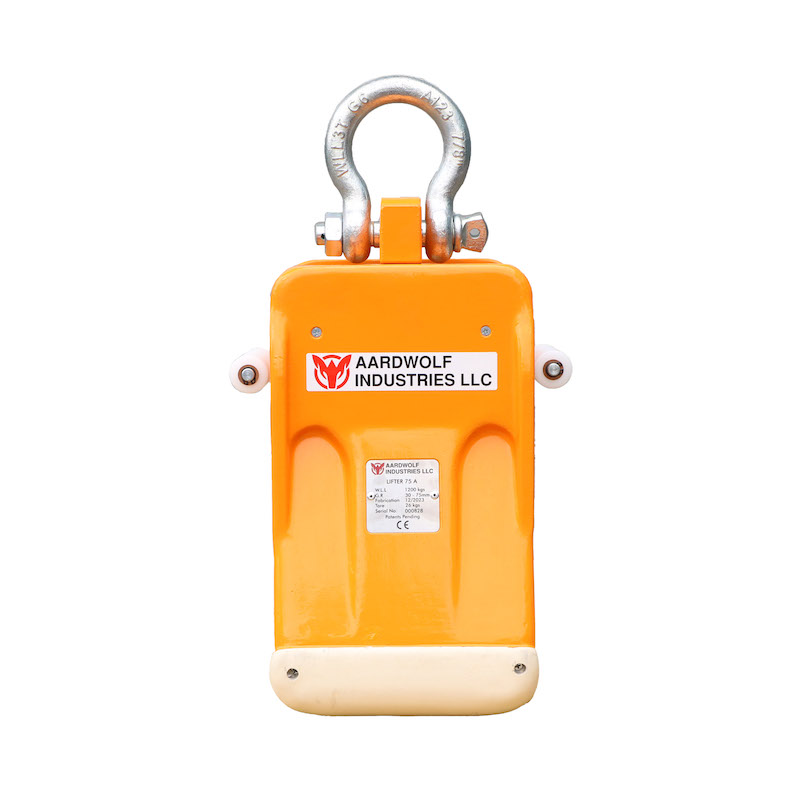

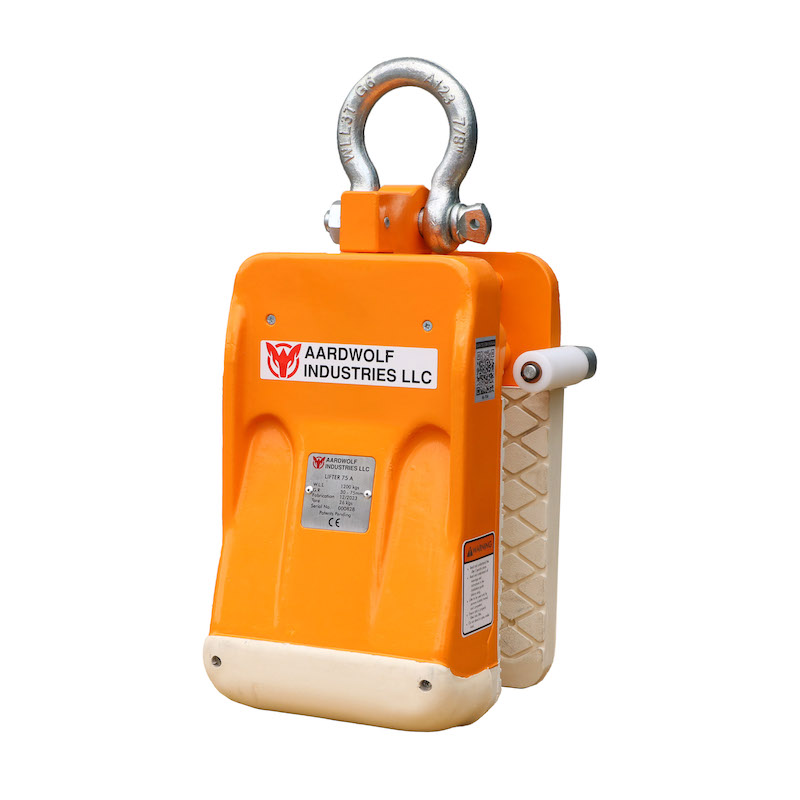

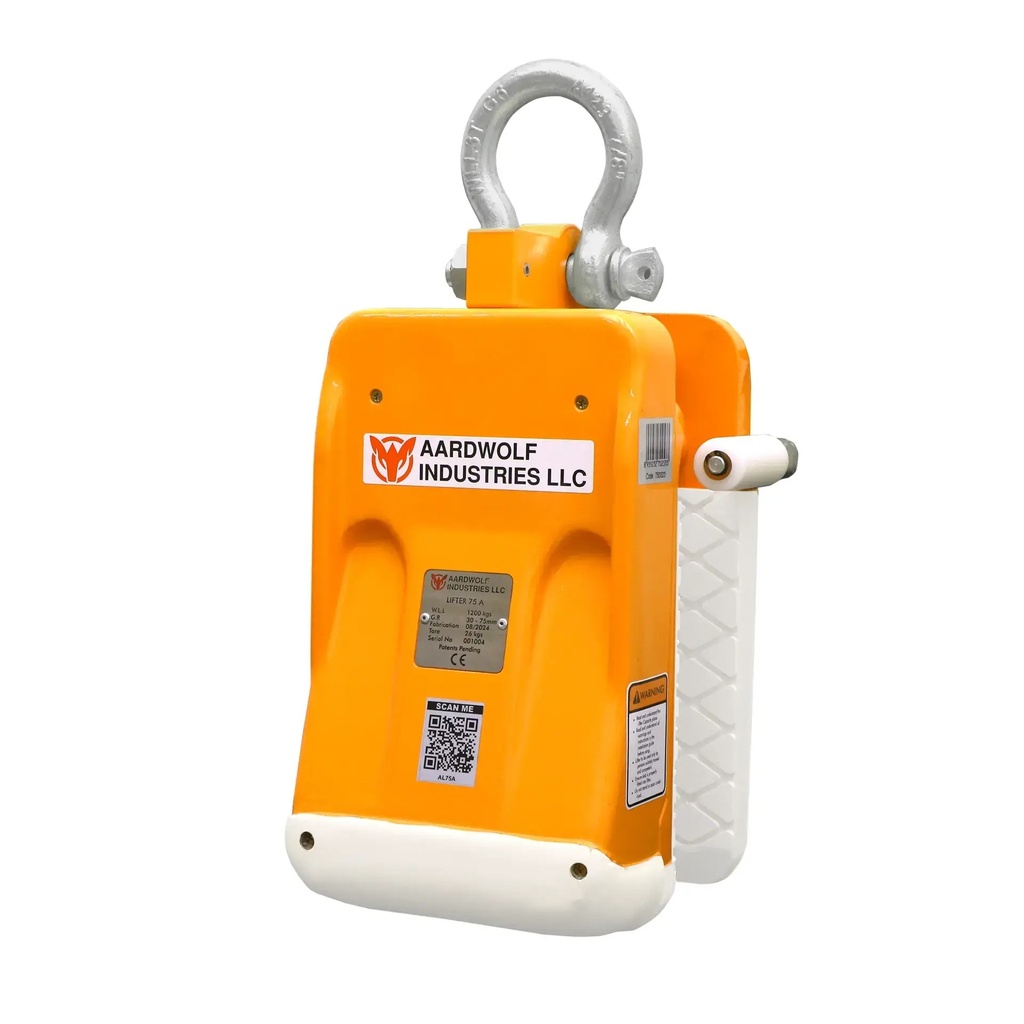

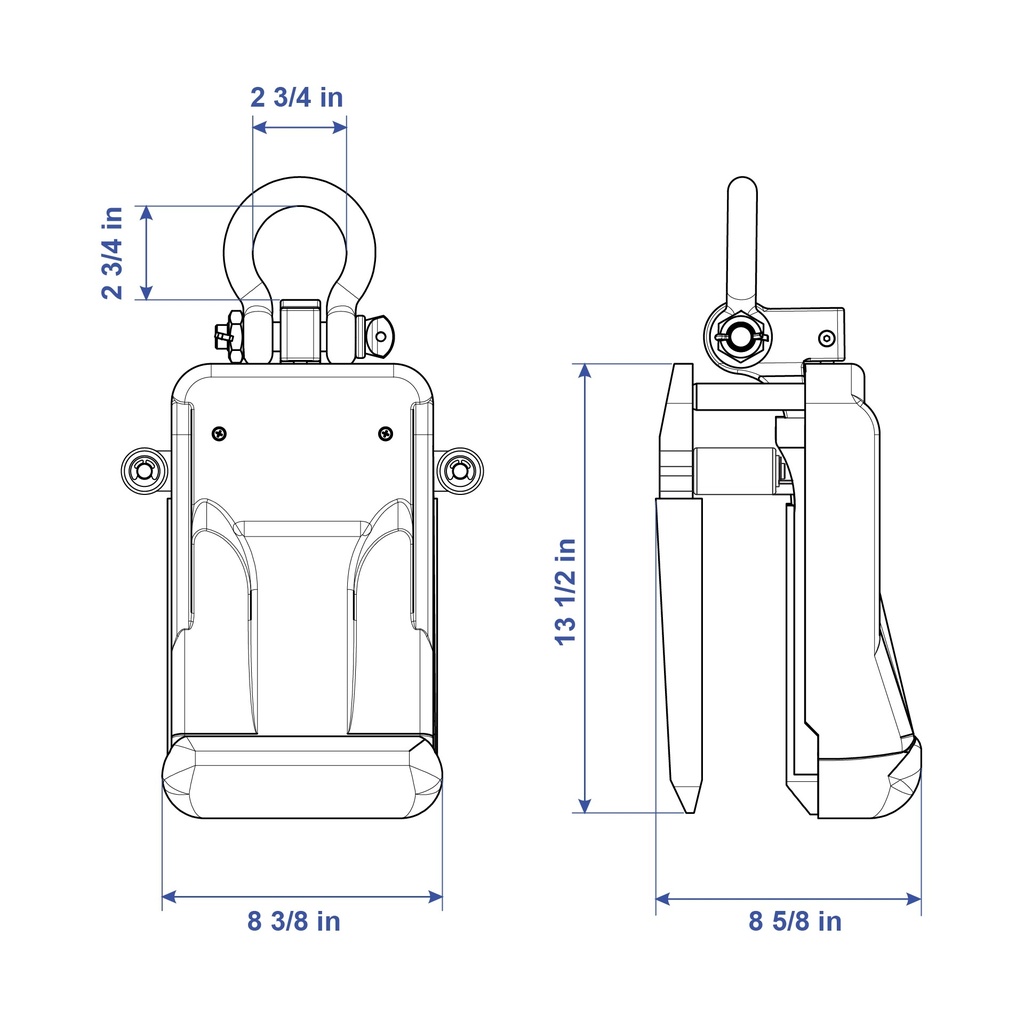

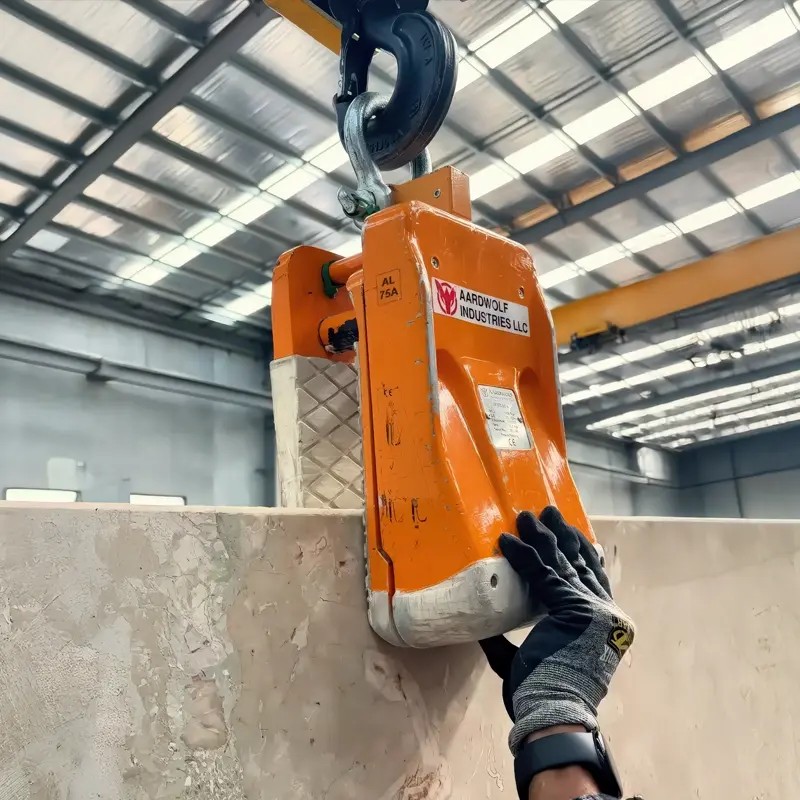

AL75AR — Auto Slab Lifter with Rollers, 2,646 lb
Property Detail
Capacity 2,646 lb (1,200 kg)
Grip Range 1.2 in to 3 in (30 to 3.0" (75 mm))
Force Multiplication approx. 2.5:1
Rollers Two top-edge rollers
Locking Auto-lock on lift / auto-release on set-down

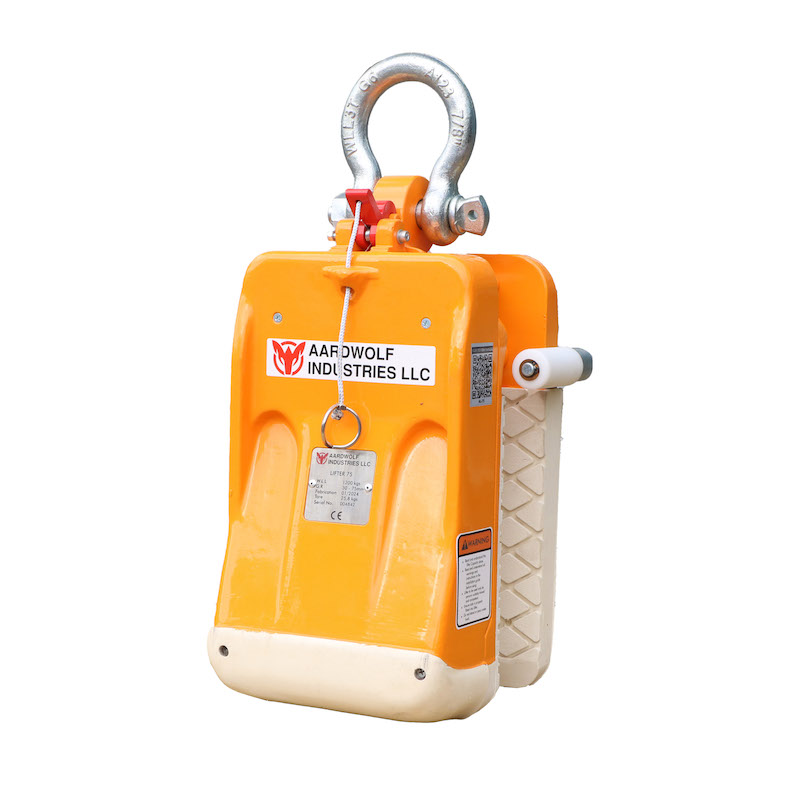

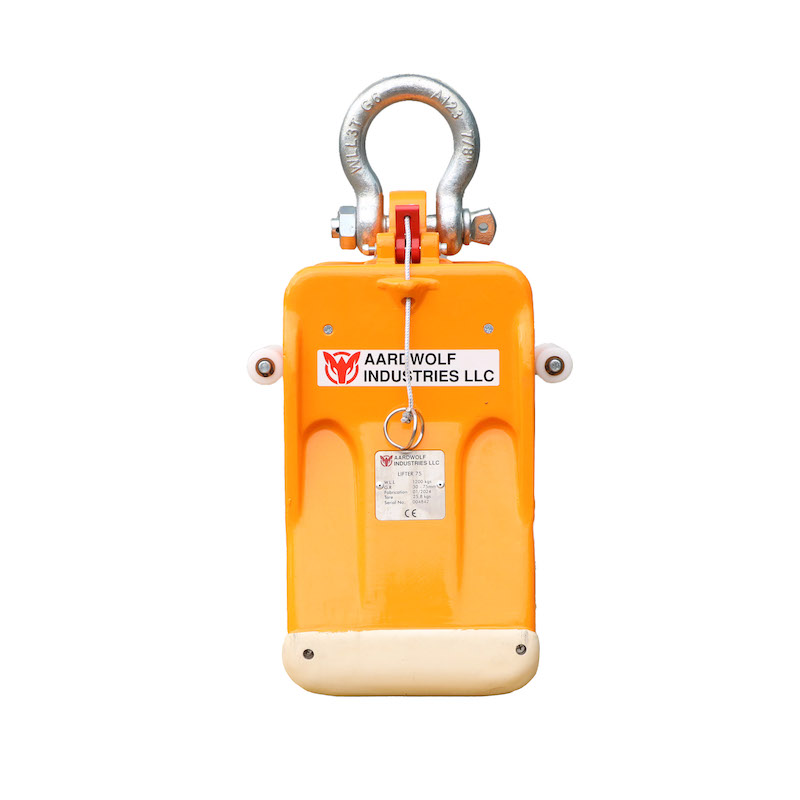

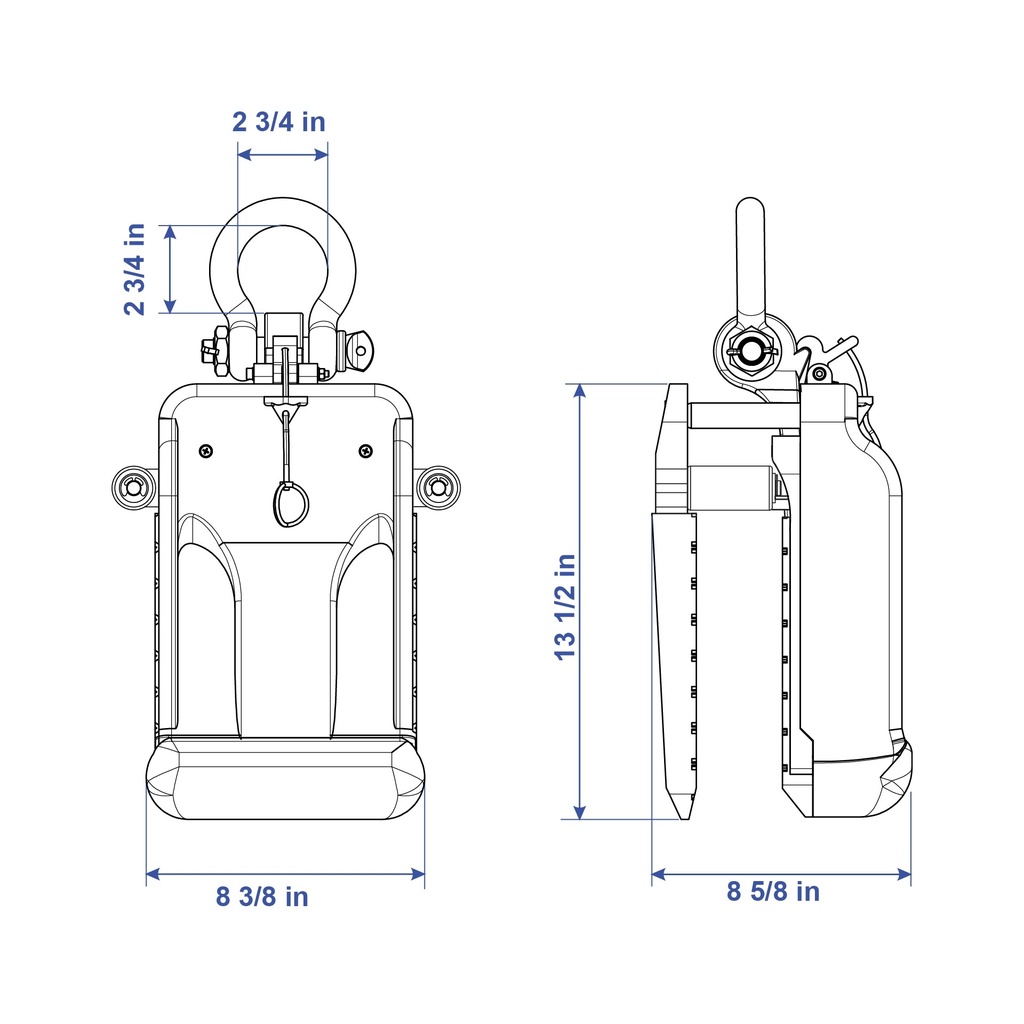

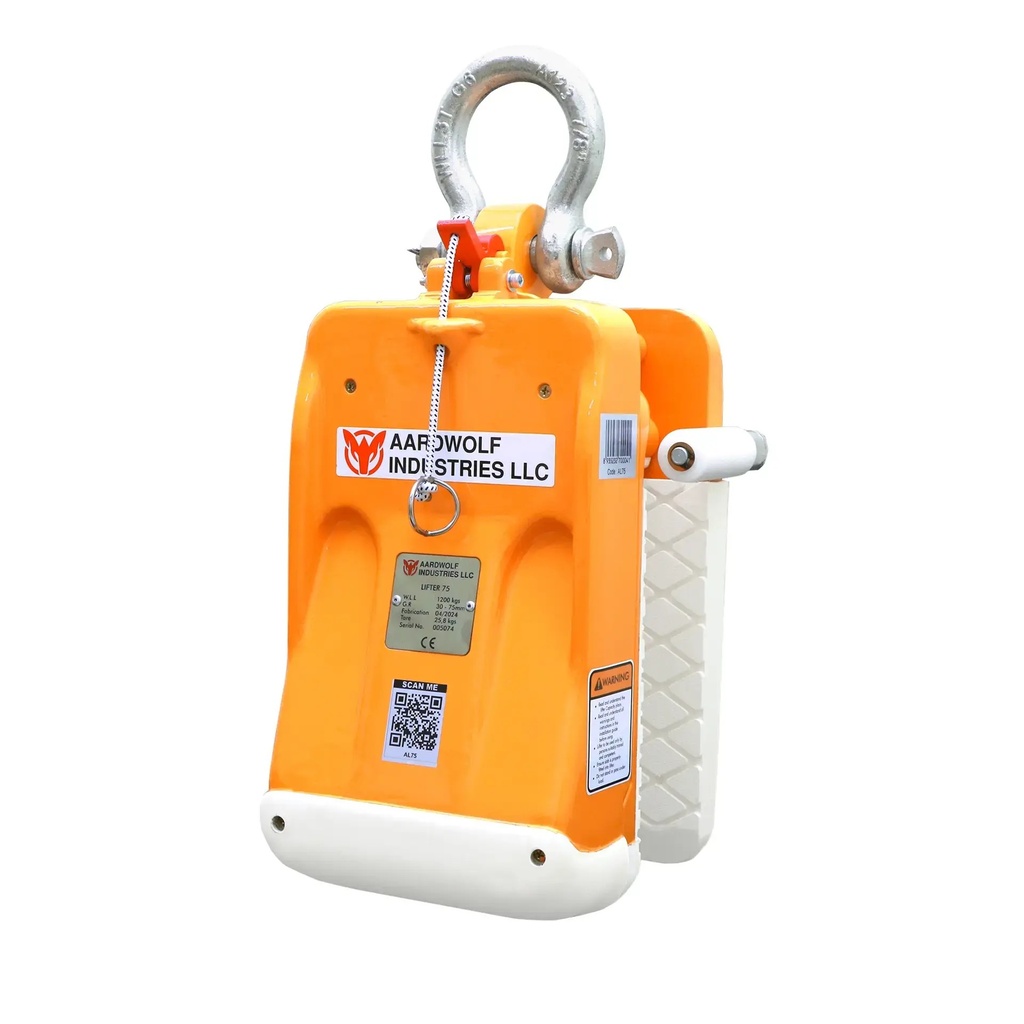

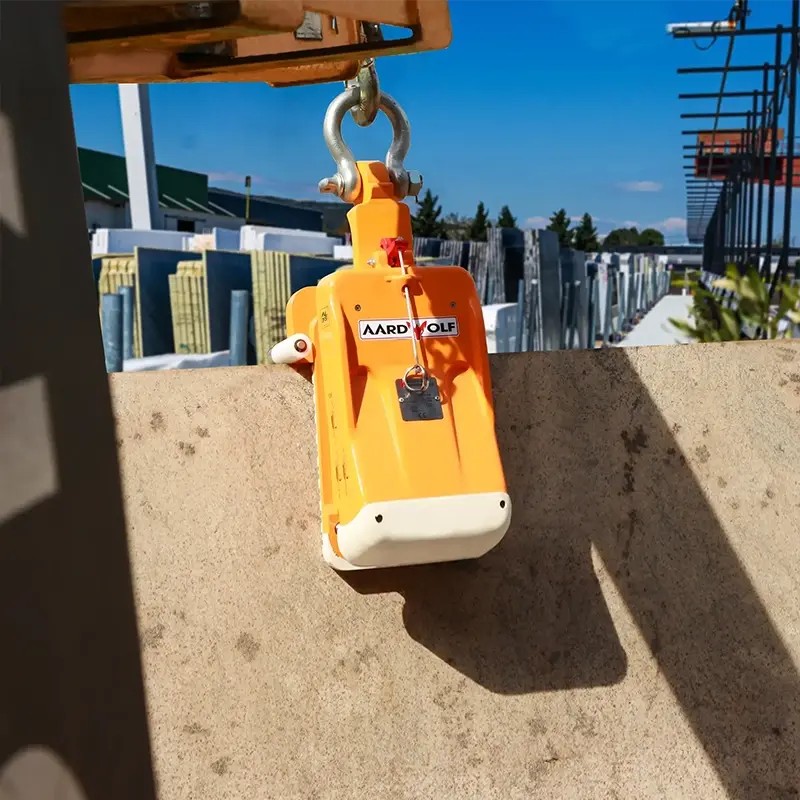

AL75R — Slab Lifter with Rollers, 2,646 lb
Property Detail
Capacity 2,646 lb (1,200 kg)
Grip Range 1.2 in to 3 in (30 to 3.0" (75 mm))
Force Multiplication approx. 2.5:1
Rollers Two top-edge rollers
Locking Manual close, automatic release
Property Detail
Brand Aardwolf
Maximum Lifting Capacity 2,646 lb (1,200 kg)
Jaws Extra-wide
Rollers Two support rollers (centering + edge protection)
Clamp Plates Rubber-coated
Locking Automatic gravity-controlled
Safety Factor 3:1
Country of Origin Vietnam

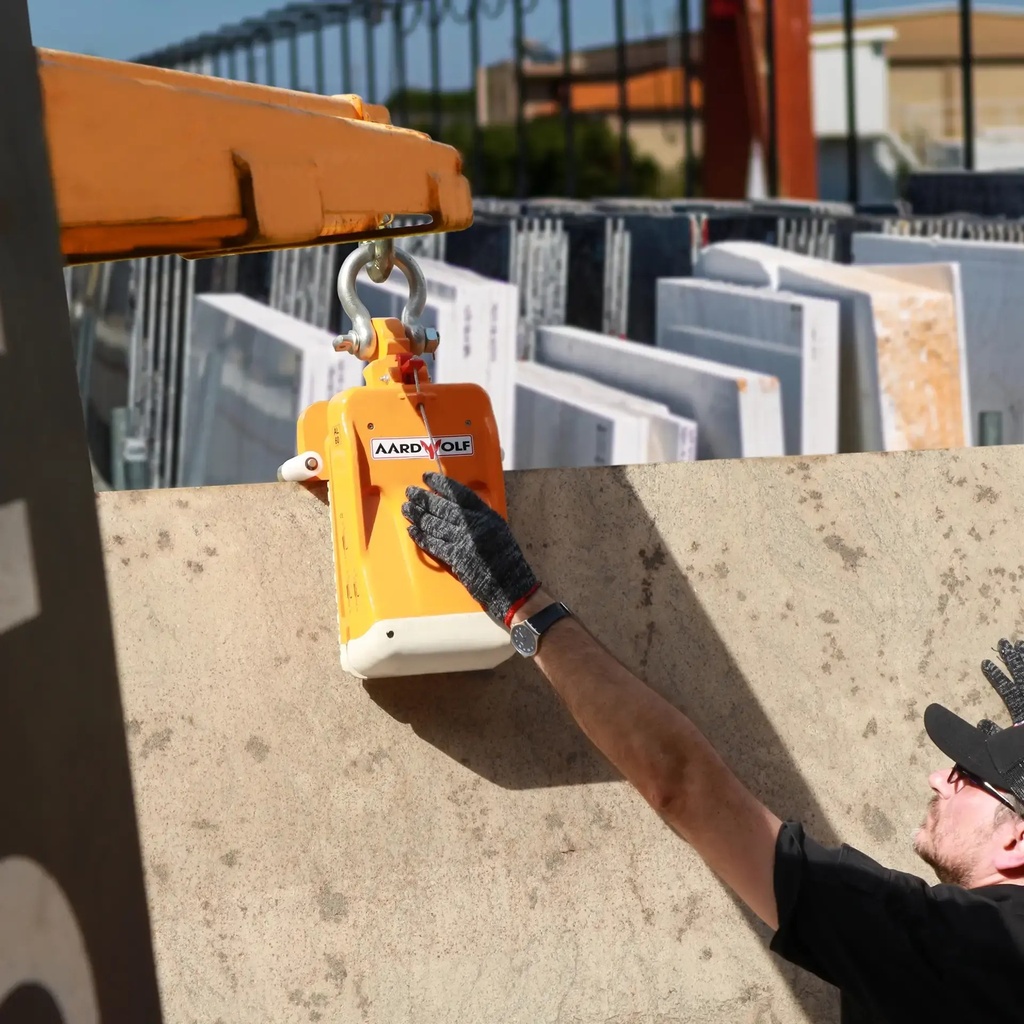

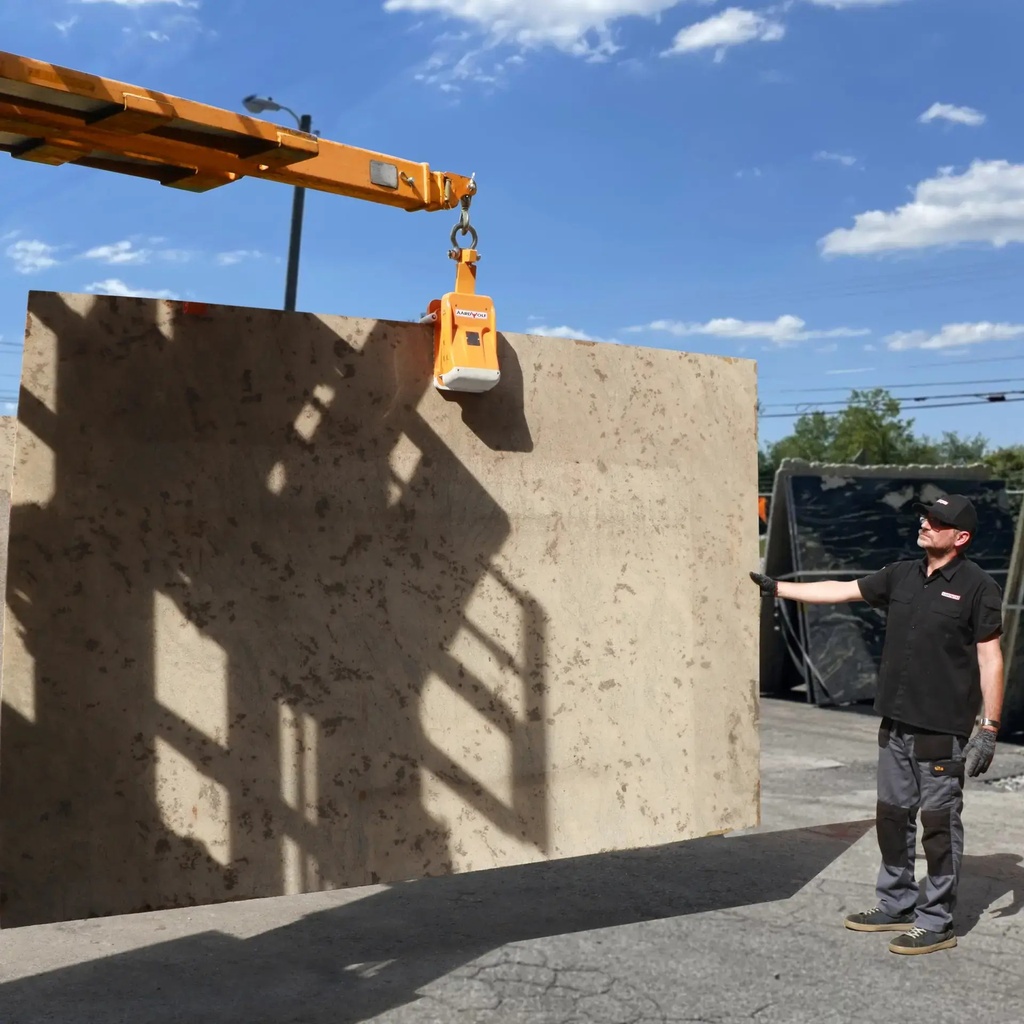

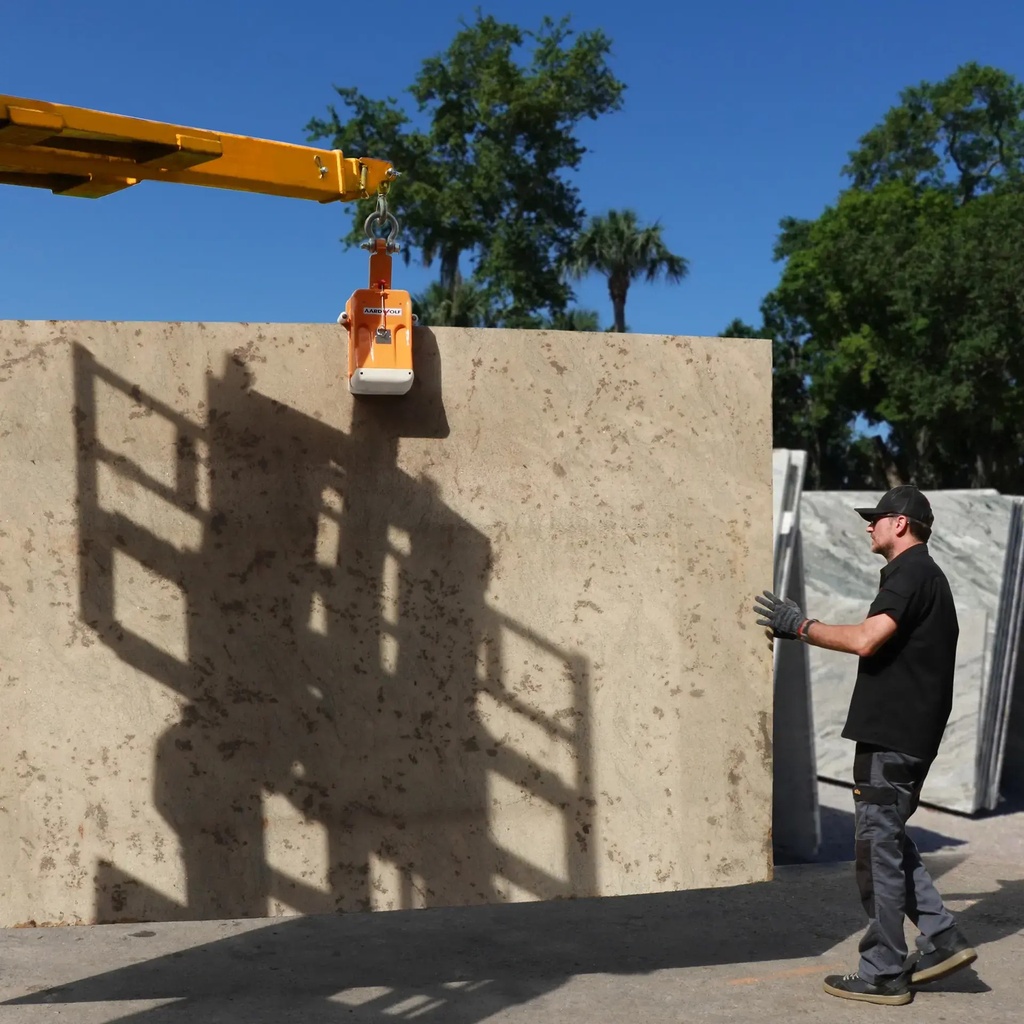

  1. Hook the lifter shackle to a crane, gantry, or hoist.

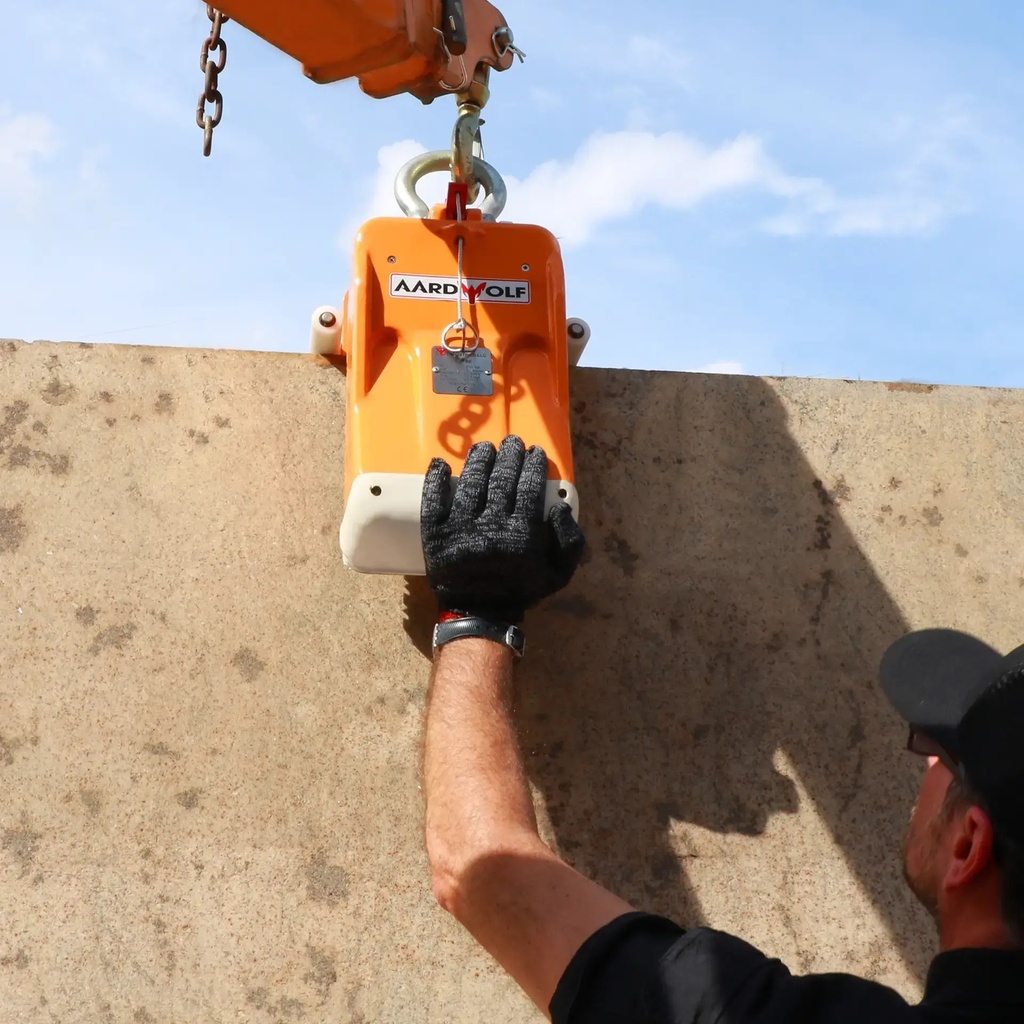

  2. Lower the lifter so the rollers rest on the slab top edge.
  3. Slide the lifter laterally to center it on the slab balance point.
  4. Lift slowly; the auto-lock cam engages as tension builds.
  5. Lower fully onto a rack or floor to release the clamp automatically.
  6. Wear gloves, hard hat, and steel-toe boots during every lift.

Granite, marble, quartzite, engineered quartz, porcelain slabs. Match model grip range to slab thickness for a secure auto-lock.
