Aardwolf Spreader Bar

(0 incele)
LTL $250
$ 746,36 $ 746,36
$ 522,45

  • Marka
  • Model
  • Package Dimensions
Terms and Conditions
Shipping: 2-3 Business Days
Bize Ulaşın

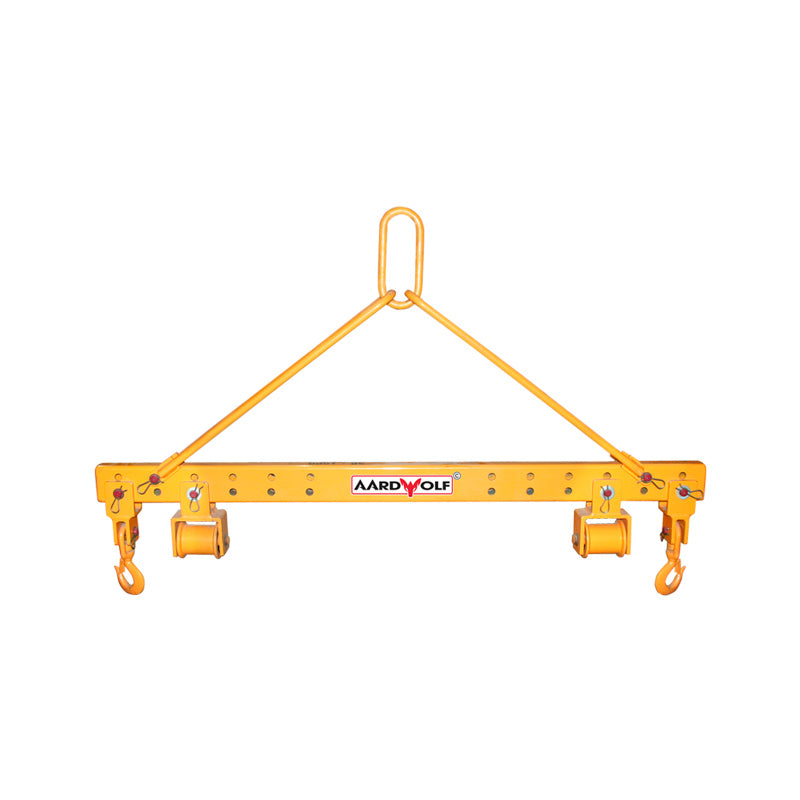

Aardwolf Spreader Bar ASB — Adjustable Lifting Beam for Slabs

The Aardwolf ASB Spreader Bar balances wide and unbalanced loads under a single crane hook for slab turning, rolling, and lifting. Three capacities cover 5,512 lb (ASB25T), 7,716 lb (ASB35T), and 11,023 lb (ASB50T). Crowned aluminum rollers accept slings up to 3.54 inches wide.

Features

  • Three capacities: 2.5, 3.5, and 5 short-ton ratings
  • Adjustable lifting points to balance wide or off-center loads
  • Crowned aluminum rollers center slings during lift
  • Sling slot accepts webbing slings up to 3.54 in (90 mm) wide
  • Heavy-duty welded steel construction in yellow finish
  • Used with endless webbing slings to lift, turn, and roll slabs
  • Swivel hooks at the rigging points reduce sling twist
ASB25T — 2.5-Ton Spreader Bar
Property Detail
Brand Aardwolf
Model ASB25T
Working Load 2.5 ton (5,512 lb)
Rollers Crowned aluminum
Sling Width up to 3.54 in (90 mm)
Lifting Points Adjustable
Rigging Swivel hooks
Finish Yellow heavy-duty paint
ASB35T — 3.5-Ton Spreader Bar
Property Detail
Brand Aardwolf
Model ASB35T
Working Load 3.5 ton (7,716 lb)
Rollers Crowned aluminum
Sling Width up to 3.54 in (90 mm)
Lifting Points Adjustable
Rigging Swivel hooks
Finish Yellow heavy-duty paint
ASB50T — 5-Ton Spreader Bar
Property Detail
Brand Aardwolf
Model ASB50T
Working Load 5 ton (11,023 lb)
Rollers Crowned aluminum
Sling Width up to 3.54 in (90 mm)
Lifting Points Adjustable
Rigging Swivel hooks
Finish Yellow heavy-duty paint
  1. Select the spreader bar rated above the slab plus rigging weight.
  2. Pass an endless sling under the slab and over each roller.
  3. Adjust the lifting points to balance the load under the crane hook.
  4. Lift slowly and keep the bar level during the entire travel.
  5. Lower the slab onto a rack or buggy before slacking the slings.
  6. Wear hard hat, gloves, and steel-toe boots during every lift.

Use with endless polyester or nylon webbing slings rated to or above the bar capacity. Suits granite, marble, quartzite, and engineered quartz slabs.

Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.

Özellikler

Model ASB25T, ASB35T, ASB50T
Marka Aardwolf
Package Dimensions 64" x 11" x 10"
