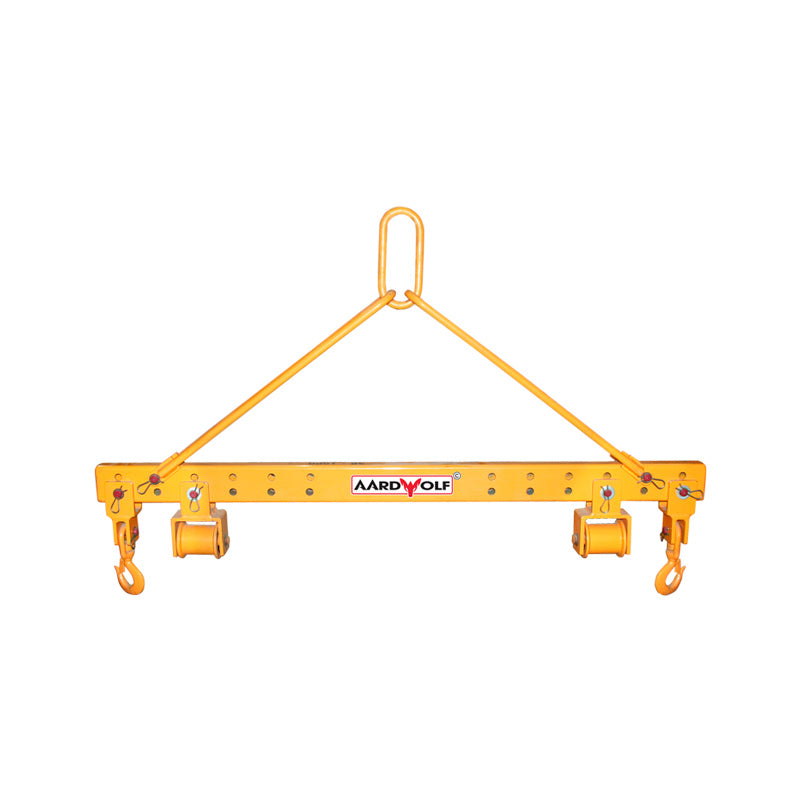

Aardwolf Spreader Bar ASB — Adjustable Lifting Beam for Slabs
The Aardwolf ASB Spreader Bar balances wide and unbalanced loads under a single crane hook for slab turning, rolling, and lifting. Three capacities cover 5,512 lb (ASB25T), 7,716 lb (ASB35T), and 11,023 lb (ASB50T). Crowned aluminum rollers accept slings up to 3.54 inches wide.
Features
- Three capacities: 2.5, 3.5, and 5 short-ton ratings
- Adjustable lifting points to balance wide or off-center loads
- Crowned aluminum rollers center slings during lift
- Sling slot accepts webbing slings up to 3.54 in (3.5" / 90 mm) wide
- Heavy-duty welded steel construction in yellow finish

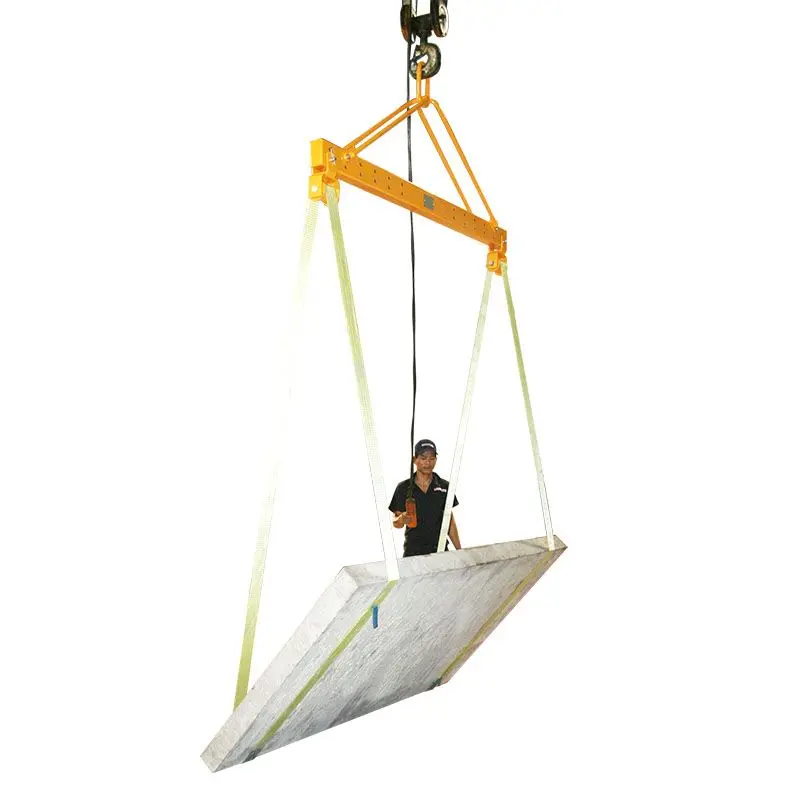

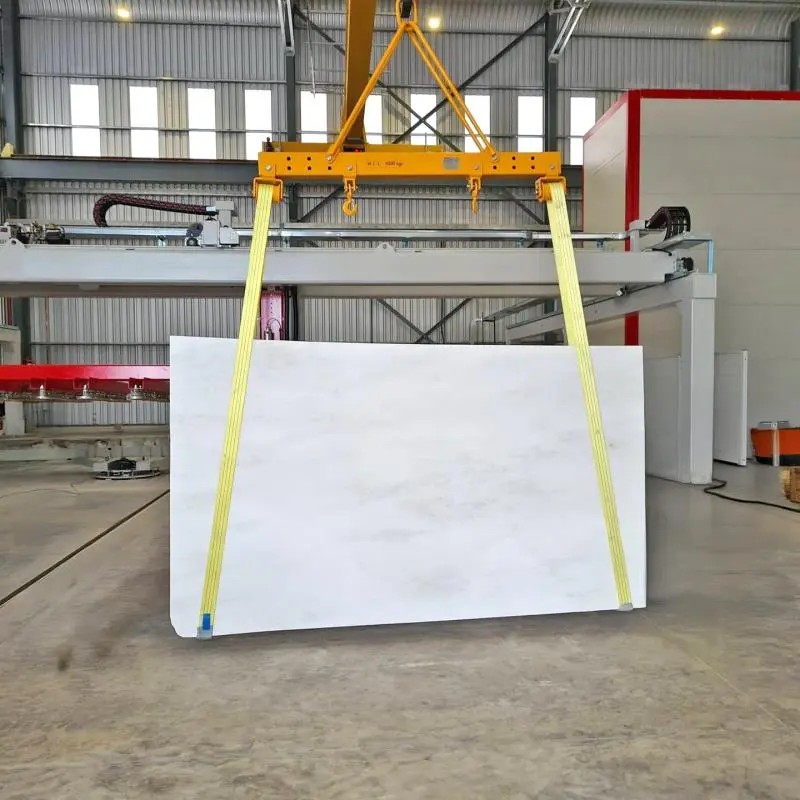

- Used with endless webbing slings to lift, turn, and roll slabs
- Swivel hooks at the rigging points reduce sling twist

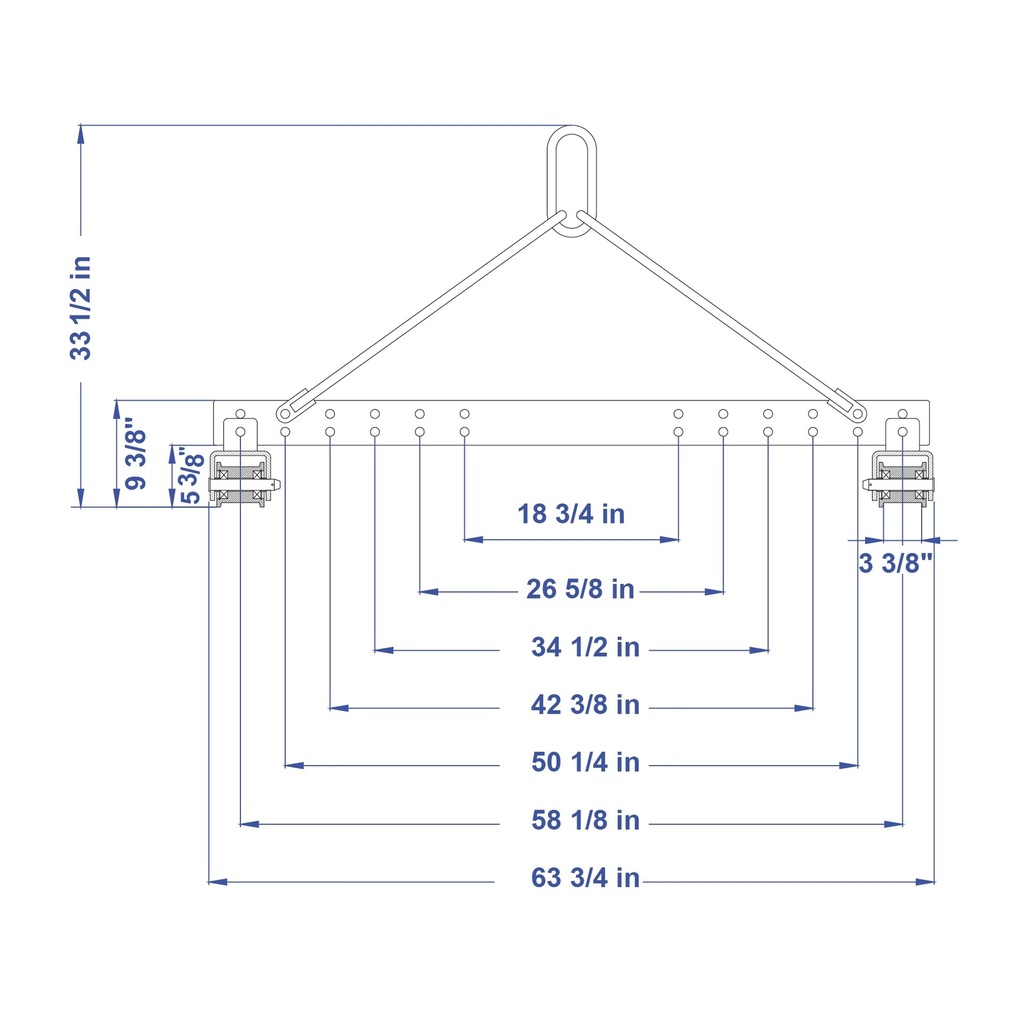

ASB25T — 2.5-Ton Spreader Bar
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Model | ASB25T |
| Working Load | 2.5 ton (5,512 lb) |
| Rollers | Crowned aluminum |
| Sling Width | up to 3.54 in (3.5" / 90 mm) |
| Lifting Points | Adjustable |
| Rigging | Swivel hooks |
| Finish | Yellow heavy-duty paint |

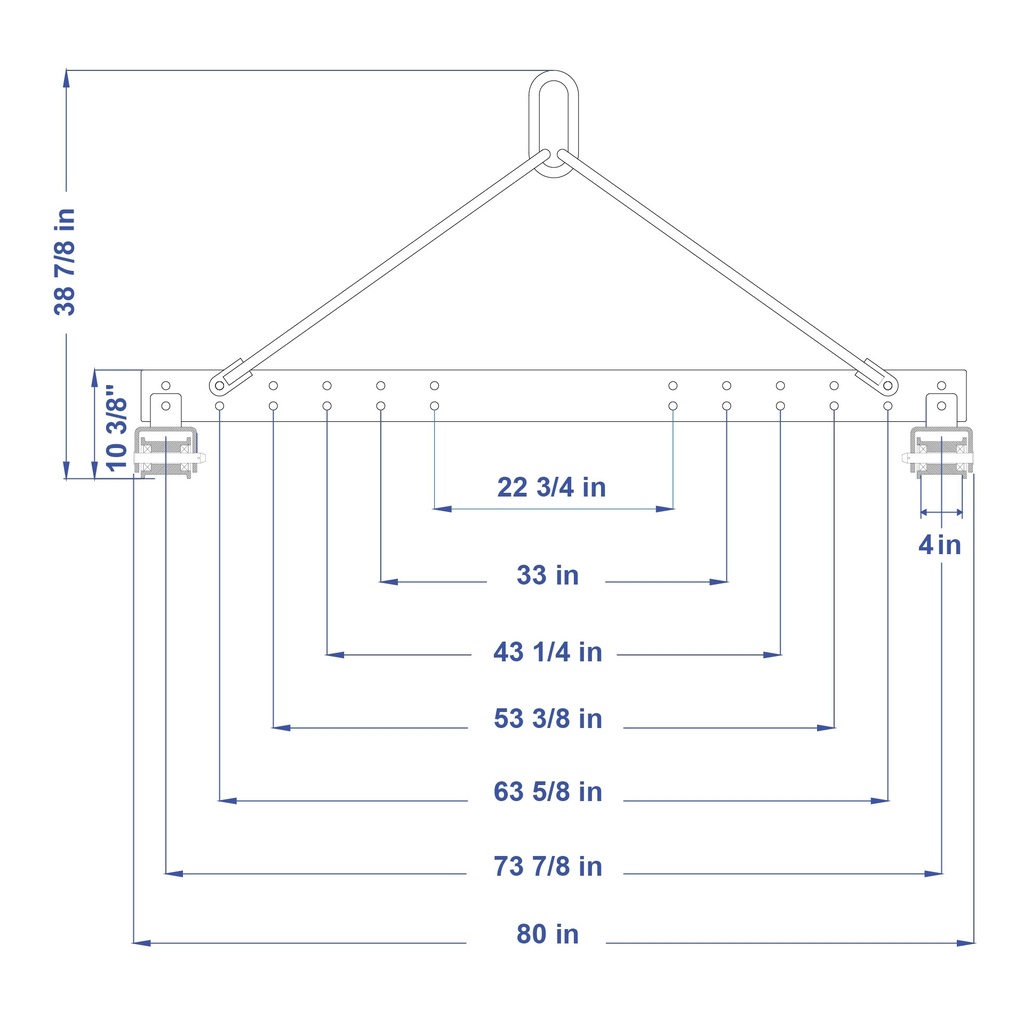

ASB35T — 3.5-Ton Spreader Bar
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Model | ASB35T |
| Working Load | 3.5 ton (7,716 lb) |
| Rollers | Crowned aluminum |
| Sling Width | up to 3.54 in (3.5" / 90 mm) |
| Lifting Points | Adjustable |
| Rigging | Swivel hooks |
| Finish | Yellow heavy-duty paint |

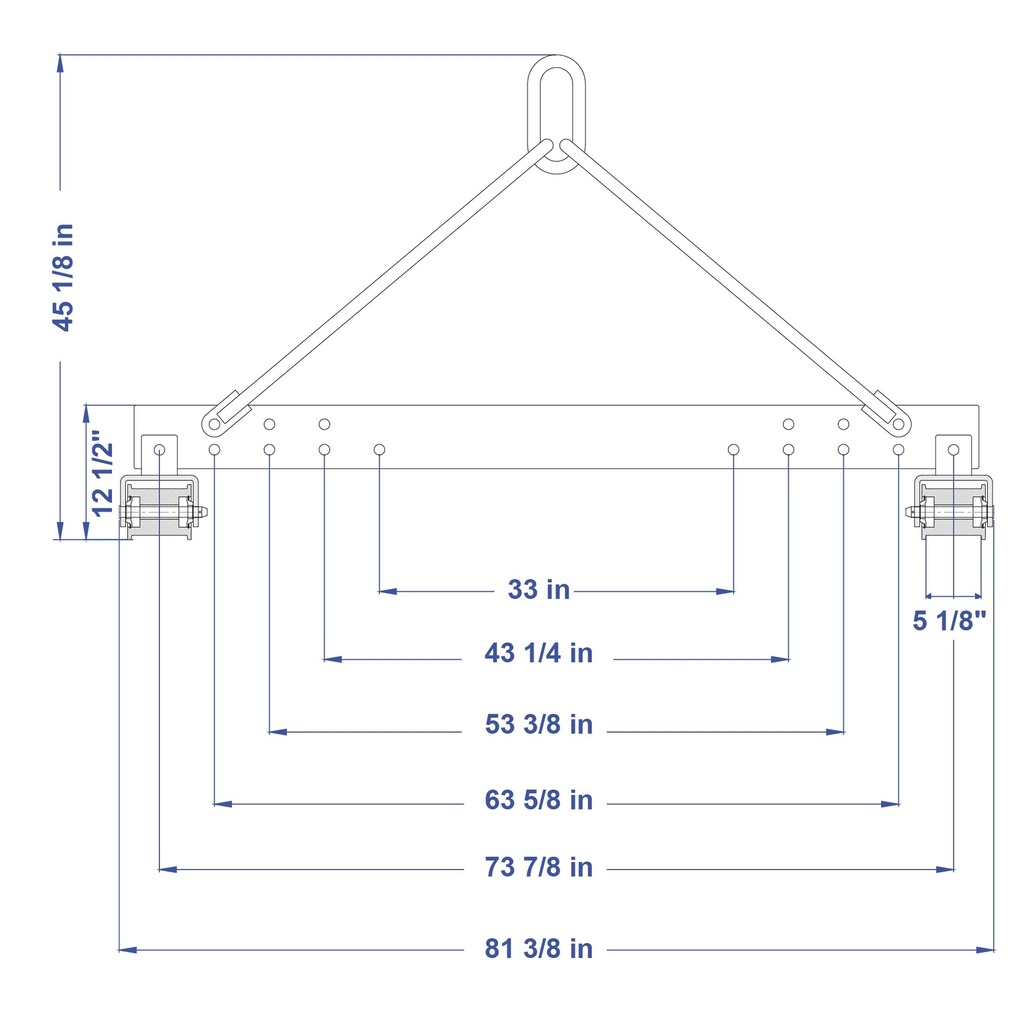

ASB50T — 5-Ton Spreader Bar
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Model | ASB50T |
| Working Load | 5 ton (11,023 lb) |
| Rollers | Crowned aluminum |
| Sling Width | up to 3.54 in (3.5" / 90 mm) |
| Lifting Points | Adjustable |
| Rigging | Swivel hooks |
| Finish | Yellow heavy-duty paint |
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Lifting Capacity | 2.5 tons (5,000 lb) |
| Width | 63.8" (1,620 mm) |
| Rollers | Crowned aluminum rollers for load turning |
| Sling Capacity | Up to 3.5" (90 mm) wide slings |
| Options | Swivel hooks available |
| Country of Origin | Vietnam |
- Select the spreader bar rated above the slab plus rigging weight.
- Pass an endless sling under the slab and over each roller.
- Adjust the lifting points to balance the load under the crane hook.
- Lift slowly and keep the bar level during the entire travel.
- Lower the slab onto a rack or buggy before slacking the slings.
- Wear hard hat, gloves, and steel-toe boots during every lift.
Use with endless polyester or nylon webbing slings rated to or above the bar capacity. Suits granite, marble, quartzite, and engineered quartz slabs.
Specifications
| Model | ASB25T, ASB35T, ASB50T |
| Brand | Aardwolf |
