Aardwolf ARGL-500 Vacuum Glass Lifter

The Aardwolf ARGL-500 series is a single-pad vacuum lifter optimized for glass, polished stone, and engineered slab handling. The 500 mm rubber pad seals on smooth surfaces and supports vertical rotation for installation. Available in DC (battery) and DS (dual-circuit safety) configurations.

Features

  • Single 500 mm rubber pad for smooth-surface lifting
  • ARGL-500DC — DC battery powered, cordless operation
  • ARGL-500DS — dual-circuit redundant vacuum for safety
  • Manual pad rotation and tilt for glazing installation
  • Vacuum gauge and audible alarm on low pressure
  • Suitable for glass, polished granite, and quartz panels
  • Compact frame with overhead lifting eye

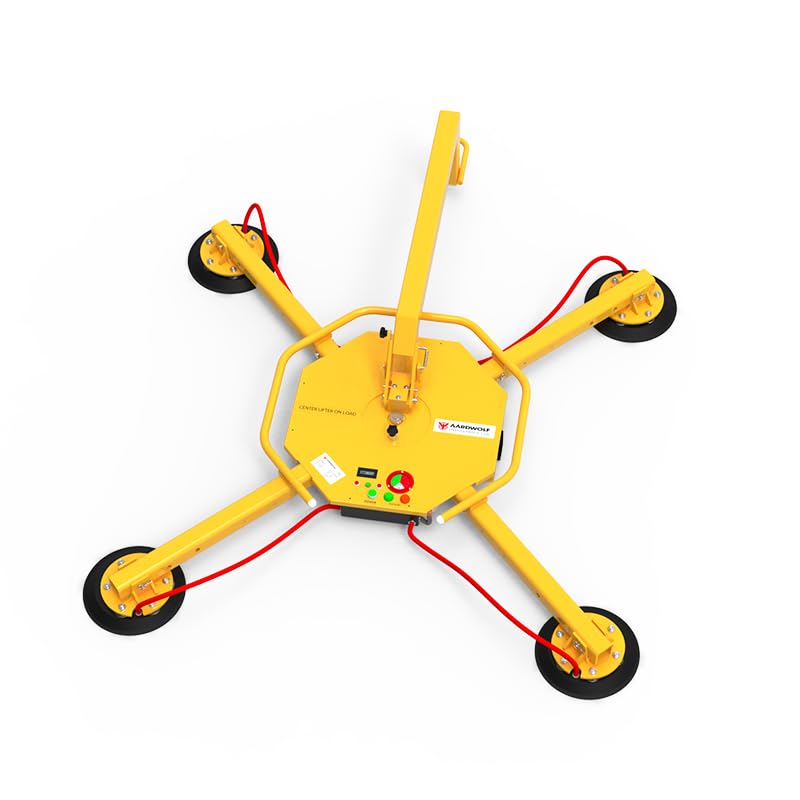

ARGL-500DC — ARGL-500DC DC Powered Vacuum Glass Lifter (Single System)
Property Detail
Working Load Limit (Horizontal) 1,102 lb (500 kg)
Working Load Limit (Vertical) 882 lb (400 kg)
Vacuum Pads Four; 12 in diameter circular
Rotation Manual 360 deg in 45 deg steps
Tilt Manual 90 deg in 15 deg grid
Power 12V Lithium-Ion battery
Safety Audio/visual alarm, automatic vacuum replenishment

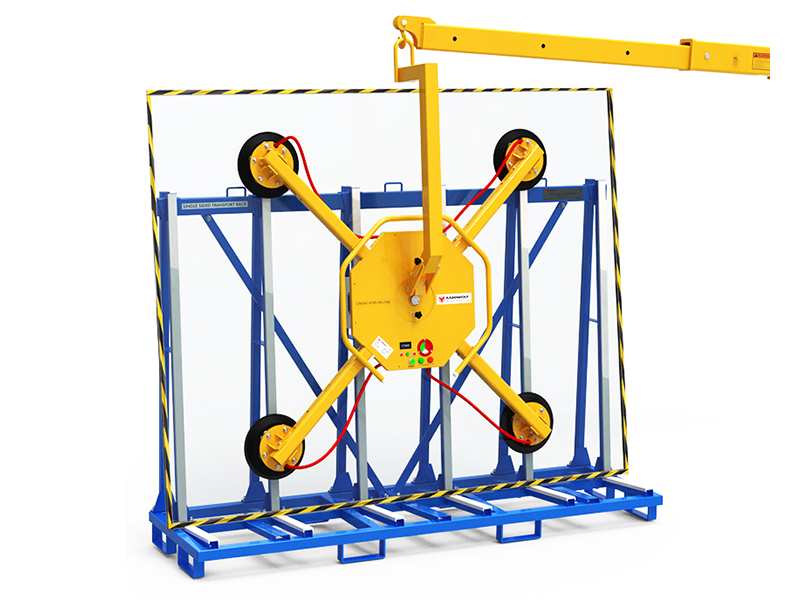

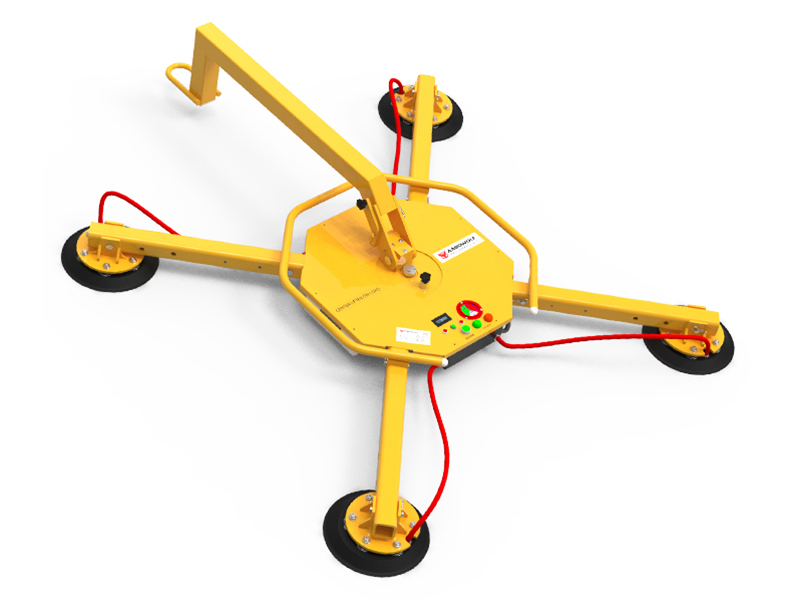

ARGL-500DS — ARGL-500DS DC Powered Vacuum Glass Lifter (Dual System)
Property Detail
Working Load Limit (Horizontal) 1,102 lb (500 kg)
Working Load Limit (Vertical) 882 lb (400 kg)
Vacuum Circuits Two independent circuits (double redundancy)
Vacuum Pads Four; 12 in diameter circular
Rotation 360 deg in 45 deg increments
Tilt 4-bar tilting; manual 90 deg in 15 deg grid
Power Two 12V M12B6 Lithium-Ion batteries; ~2 hr continuous
Charging Time 2.5 hr
Safety Audio/visual alarm, dual circuit failover
  1. Charge the battery (DC variant) and clean the panel surface.
  2. Center the pad on the glass or stone and press down to seal.
  3. Engage the vacuum pump and confirm the gauge reads safe.
  4. Lift, tilt, and rotate the panel as needed for placement.
  5. Release vacuum only when the panel is fully supported.
  6. Wear cut-resistant gloves and safety glasses when handling glass.

Flat glass panels, polished granite, polished marble, engineered quartz, and porcelain slabs. Not for textured or honed surfaces.

Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.

Specifications

Model ARGL-500DC, ARGL-500DS
