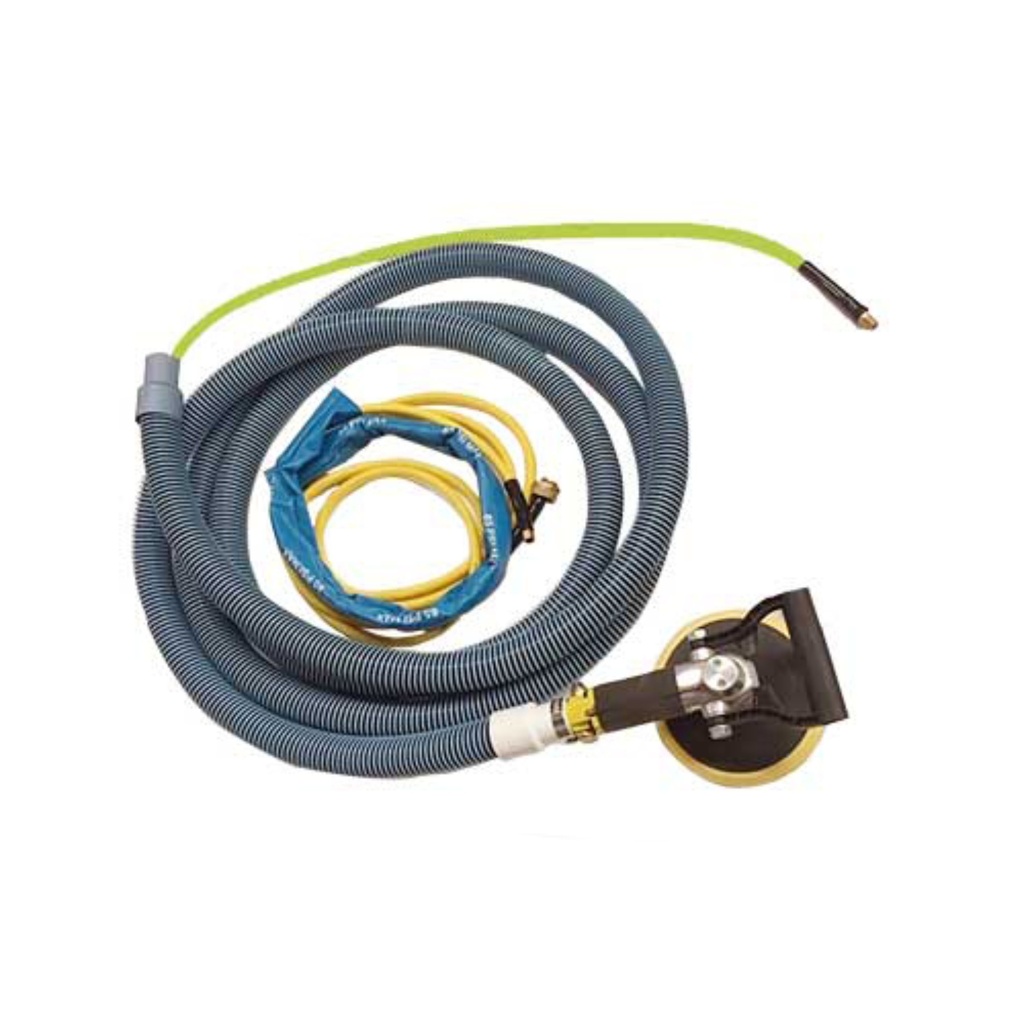

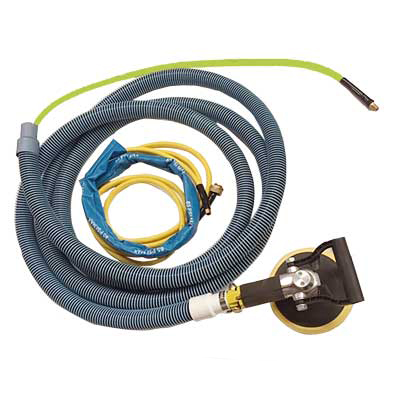

AIR-680UW Underwater Pneumatic Polisher
AIR-680UW Underwater Polishing Tool

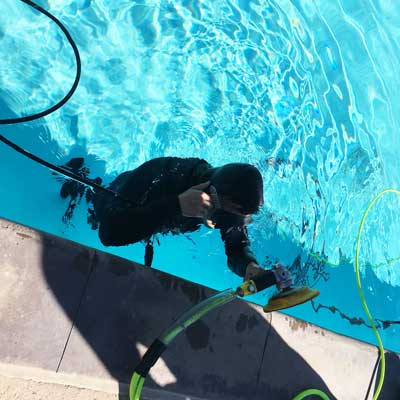

Introducing the latest Alpha® Pneumatic Polishing Solution! Alpha® AIR-680UW is a Pneumatic Polisher for use underwater for polishing and grinding. This tool is a modified version of our best-selling AIR-680 which now has a 27ft vacuum hose to allow underwater polishing on most pool sizes. This high performance, pneumatic polishing tool has a central water-fed distribution system that produces the highest quality finishes. It has a maximum speed of 4,000 RPM, consumes 15 CFM and requires 85 PSI. With a 5/8”-11 spindle, the AIR-680UW is lightweight and ergonomically designed. It is now equipped with 15ft flexible air and water supply hoses and a 30ft air hose as well as oil port for easy maintenance. These new hoses are made of Hybrid Flexible Material and are all-weather flexible down to -40F. The versatile tool can also be used without the vacuum hose for wet polishing.
| Specification | Data |
|---|
| Model | AIR-680UW | | Air Pressure | 85 PSI (6 Bar) | | Air Consumption | 15 CFM (425L/min) | | No Load Speed | 4,000 RPM | | Weight | 2.64 lbs (1.2 kgs) | | Air Inlet | 1/4” BSPP | | Water Inlet | 1/8” BSPP | | Spindle | 5/8”-11 |
|
| Item | Quantity |
|---|

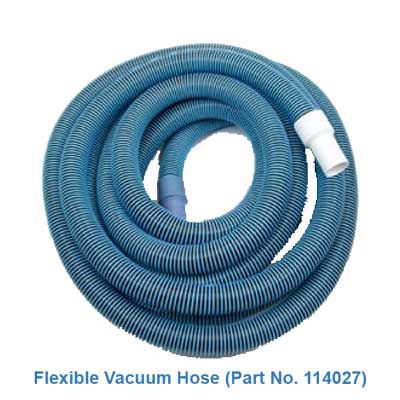

| Air Hose Assembly (15ft / 4.5m) | 1 | | Water Hose Assembly (15ft / 4.5m) | 1 | | Side Handle (Reversible) | 1 | | C-Handle | 1 | | Double End Wrench (19mm / 22mm) | 1 | | Screw (w/O-Ring Seal for oil port) | 1 | | Philips Screwdriver (P1) | 1 | | Exhaust Hose with Clamp | 1 | | Flexible Vacuum Hose (27ft / 8.1m) | 1 | | Air Hose Assembly (30ft / 9.0m) | 1 | | Water Quick Connector with Shut-Off Valve | 1 | | Rust Inhibitor Oil (6oz / 200ml) (replace with AIR-008) | 1 | | Rotary Backer Pad 7” (MP758HL) | 1 | | PlasterKing Pad 7" #50 | 1 | | PlasterKing Pad 7" #100 | 1 |
|
| Part No. | Size | Thickness | Maximum RPM | Type | Recommended For | Threads | For Use On | Grit | Color |
|
|---|
| AIR-680UW | | | 4,000 | Pneumatic Polisher | Underwater Wet Polishing, Drilling & Profiling | 5/8"-11 | | | |
| | MP758HL | 7" | | | Hook & Loop | Foam, Wool, Microfiber Pads & Sandpaper | 5/8"-11 | Rotary Polisher | | |

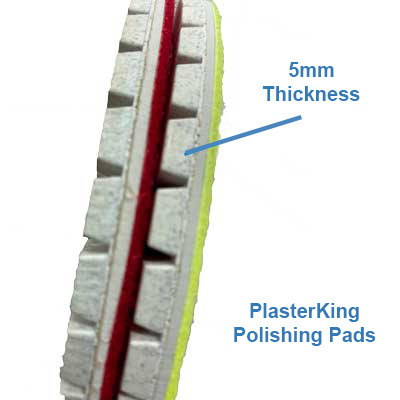

| | PS070050 | 7" | 5mm | 5,500 | Hook & Loop | Pool Plaster | | | 50 | Yellow |

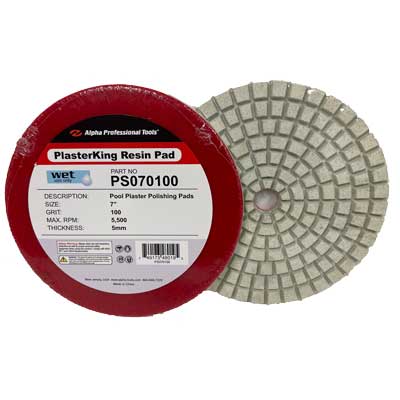

| | PS070100 | 7" | 5mm | 5,500 | Hook & Loop | Pool Plaster | | | 100 | Red |
| | PS090050 | 9" | 5mm | 5,500 | Hook & Loop | Pool Plaster | | | 50 | Yellow |
| | PS090100 | 9" | 5mm | 5,500 | Hook & Loop | Pool Plaster | | | 100 | Red |
|
|
